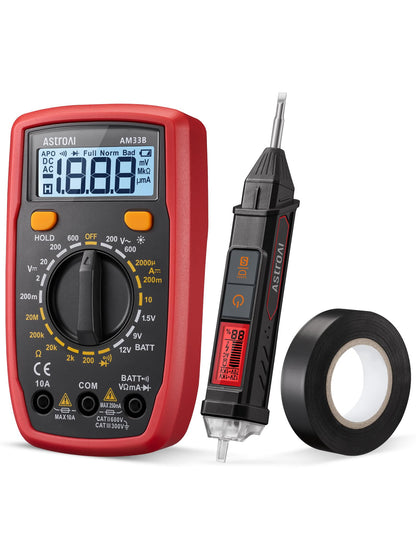

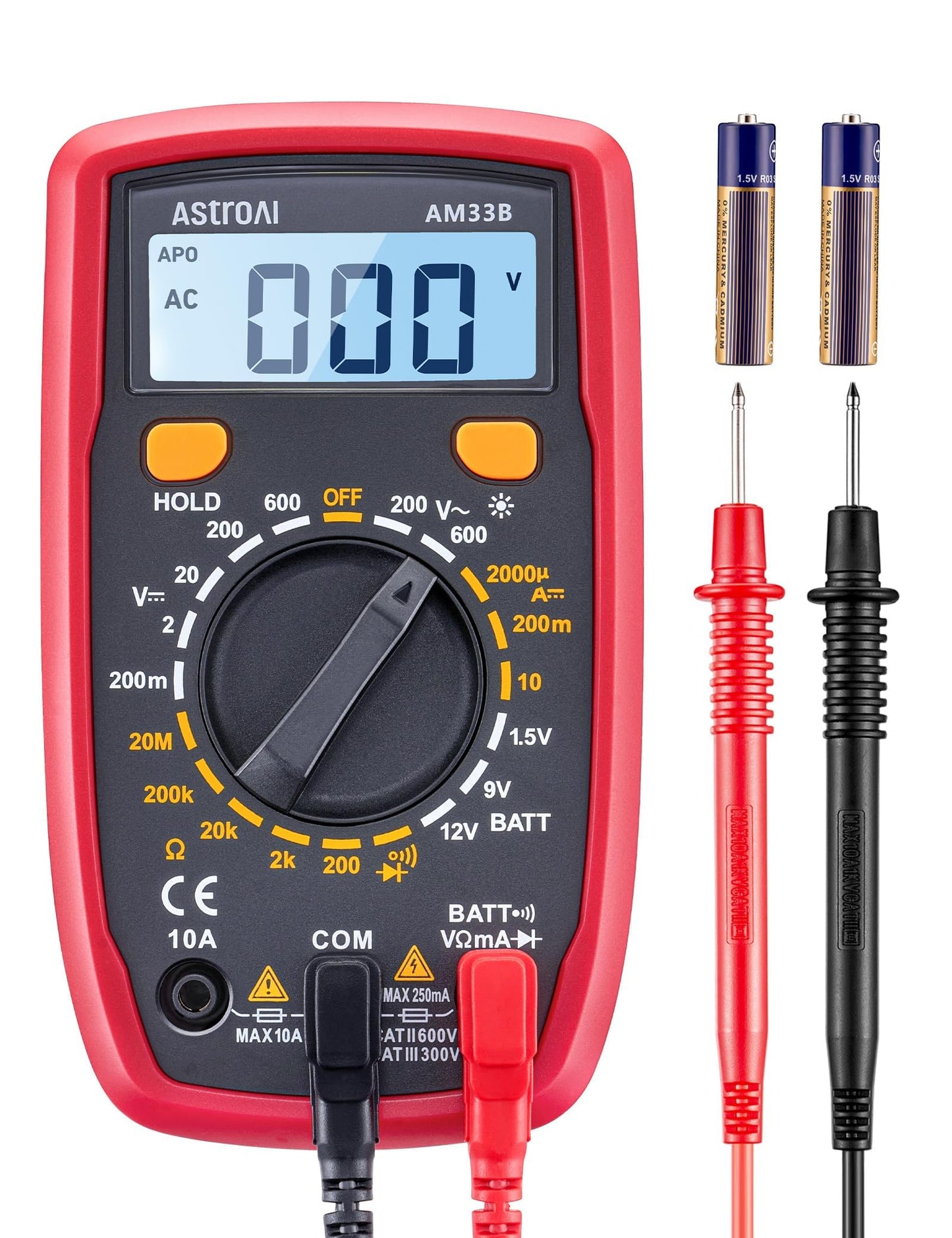

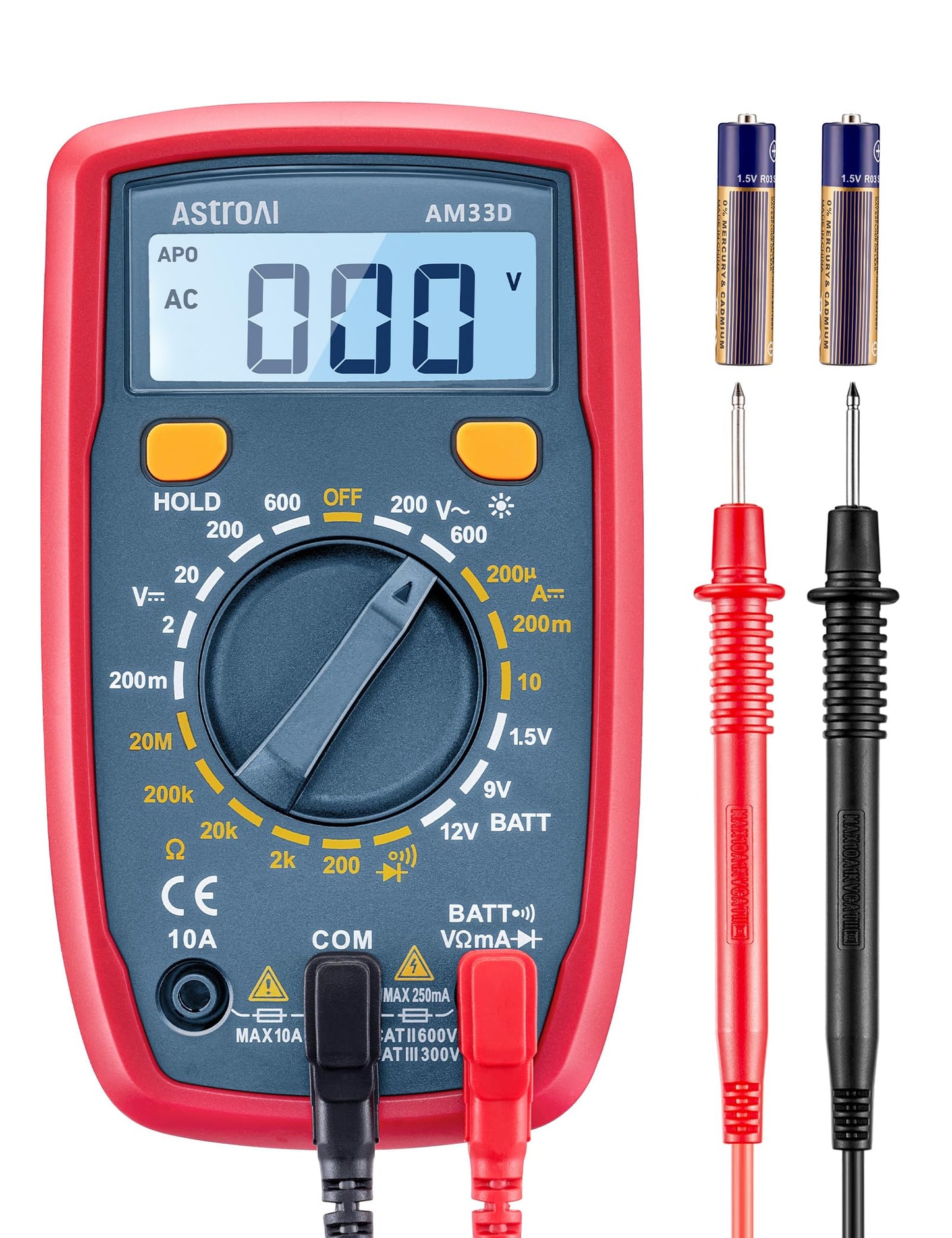

AstroAI Digital Multimeter Tester 2000 Counts with DC AC Voltmeter and Ohm Volt Amp Meter; Measures Voltage, Current, Resistance, Continuity and Diode, Blue

$21.89 USD

~~$21.89 USD~~ $21.89 USD

Sale Sold out

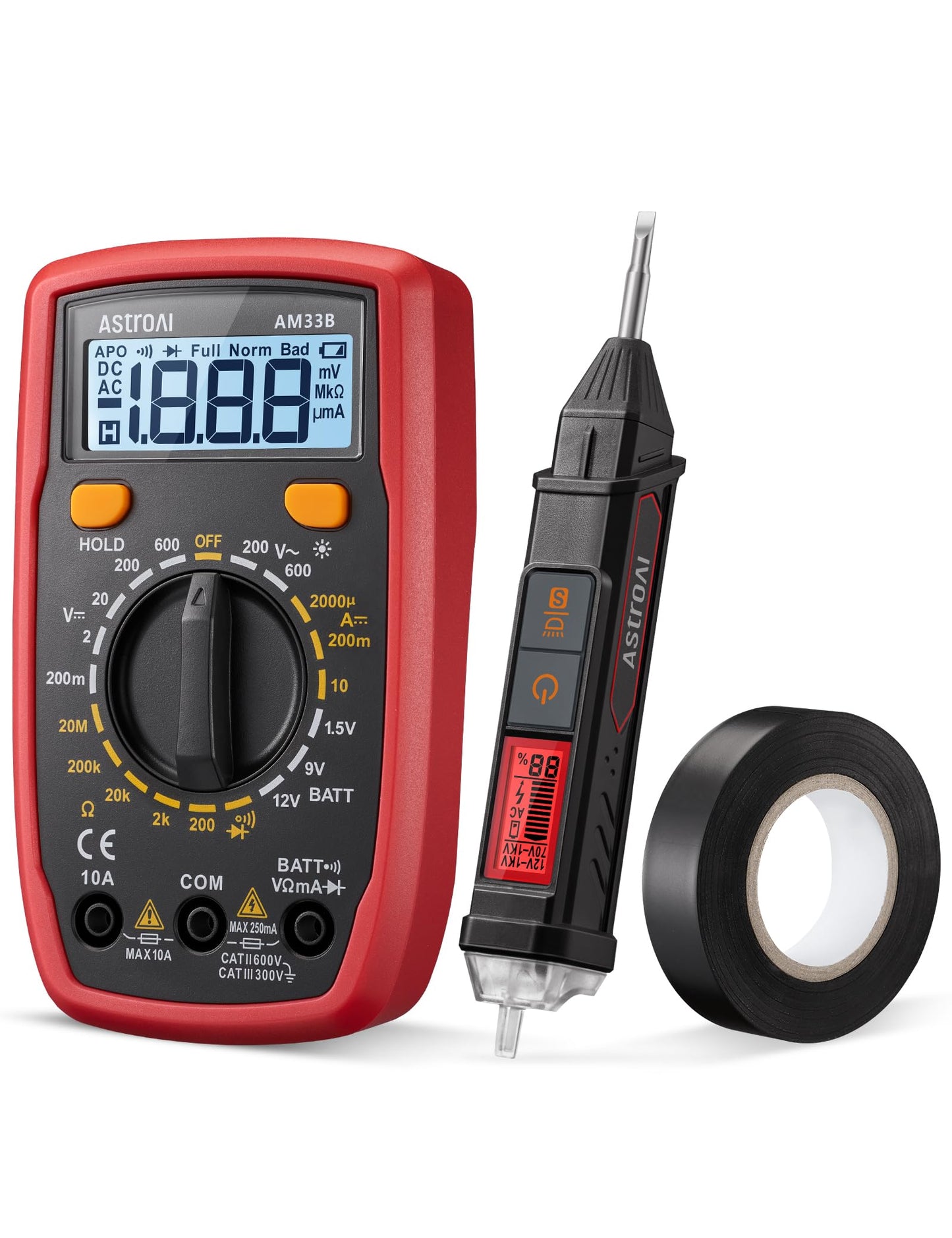

Color Black Multicolored-Test Kit Blue

Why does my multimeter not show results？

1) The plugs of test leads are not fully inserted or not inserted into the correct sockets. Please refer to the manual to reinsert them. 2) Please make sure the dial is set to the correct range.
What should I do if this item does not work?

Incorrect testing may have caused the fuse to blow. Please replace it with new fuses.
Does it work for Low voltage？

Note: This multimeter can not measure AC voltage below 100mV. It does not apply to scenarios such as body voltage.

AstroAI Multimeter Series

	AM33D Multimeter	DM200M Multimeter	M4K0R Multimeter	DM6000AR Multimeter Buying Options	MUS10KRD Smart Multimeter	CM600 Clamp Meter	Higher Resolution DM2000 Buying Options
Customer Reviews	54,362	702	6,605	19,968	1,432	308	108
Price	$14.59	$9.99	$22.99	$29.99	$36.54	$59.98	$39.99
Maximum Display	2000 Counts	2000 Counts	4000 Counts	6000 Counts	10000 Counts & Carrying case	6000 Counts	20000 Counts & Carrying case
Range Selection	Manual	Manual	Auto	Manual and Auto	Manual and Smart Auto	Manual and Auto	Auto
AC/DC Voltage	✓	✓	✓	✓	AC 750v / DC 1000v	750V AC /1000V DC	DC V Accuracy: ±（0.08% + 5）
AC/DC Current	Only DC Current	✓	✓	✓	—	1000A AC/DC	✓
Resistance/Continuity	✓	✓	✓	✓	✓	✓	✓
Diode	✓	✓	✓	✓	✓	✓	✓
Capacitance/Frequency	X	X	Only Capacitance	✓	✓	✓	✓
Temperature	X	X	X	✓	✓	✓	✓
Inrush	X	X	X	X	X	✓	X
VFD / LoZ	X	X	X	X	X	✓	X

Specifications

Environmental Conditions	CAT II 600 V; CAT Ill 300 V
Pollution Level	2
Temperature and Humidity	32-104 ° F (0-40 °C)；(<80% RH, <10 °C RH)
Range Selection	Manual
Fuse Protection	mA: F250 mA/250 V Fuse；10 A: F10 A/250 V Fuse
Sample Speed	3 Times Per Second
Digital Display	2000 Counts. The unit symbols will automatically appear according to the measured functions
Overload Indication	"OL" Displayed
Power	2 x 1.5 V AAA Batteries
DC Voltage	200mV/2V/20V/200V/600V ±(0.5%+3)
AC Voltage	200V/600V ±(0.8%+5)
DC Current	200µA/200mA/10A ±(1.2% +3)
Resistance	200Ω/2KΩ/20KΩ/200KΩ ±(1.0%+3)；20MΩ ±(1.5%+3)

Additional Tips - The following incorrect operations may cause the multimeter not to show results: Firstly, the plugs of test leads are not fully inserted or not inserted into the correct sockets. Secondly, the manual rotary switch is not placed in the correct position. In addition, this meter can not test all AC Current and below 100mV AC Voltage. Please check the user manual carefully before measurement.

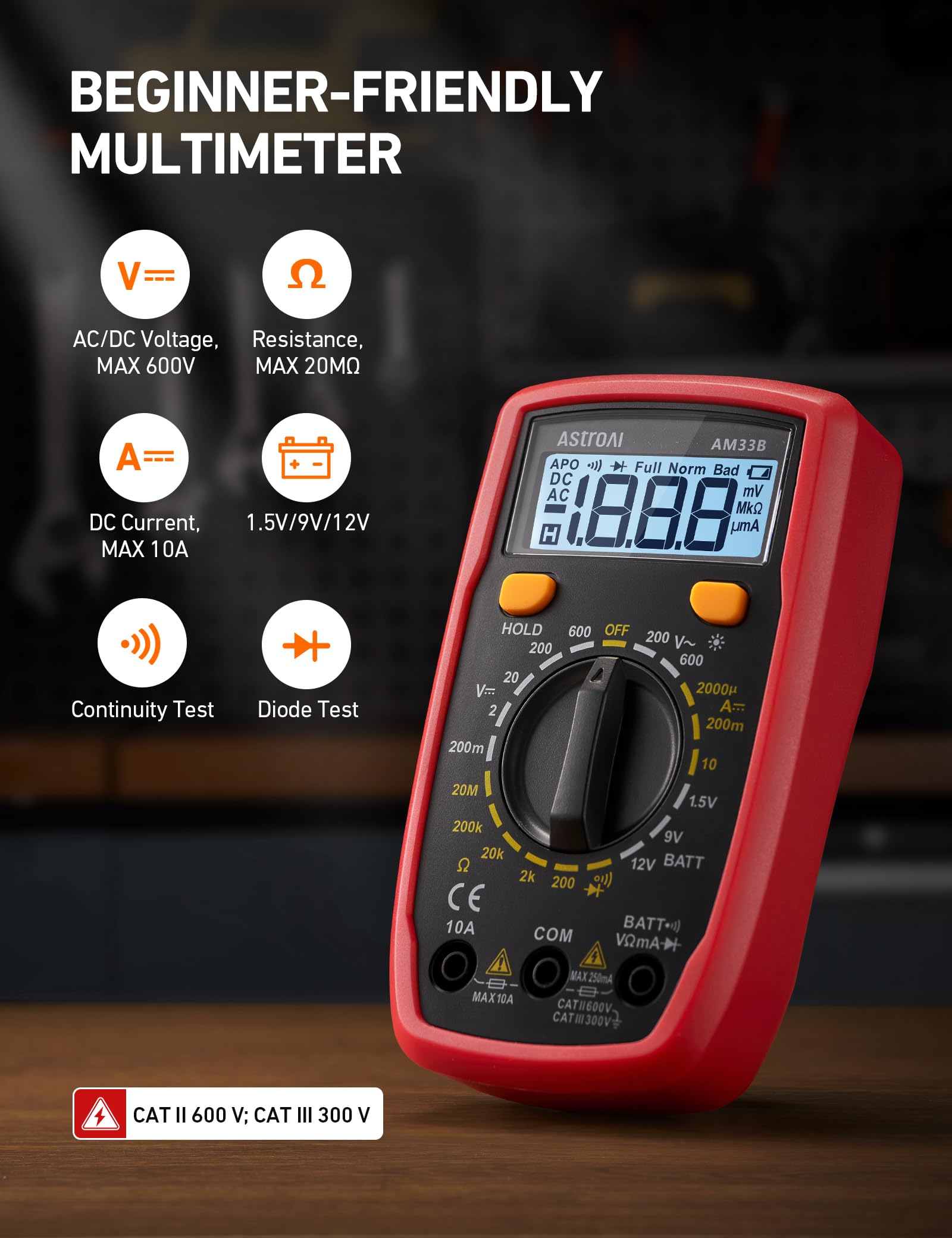

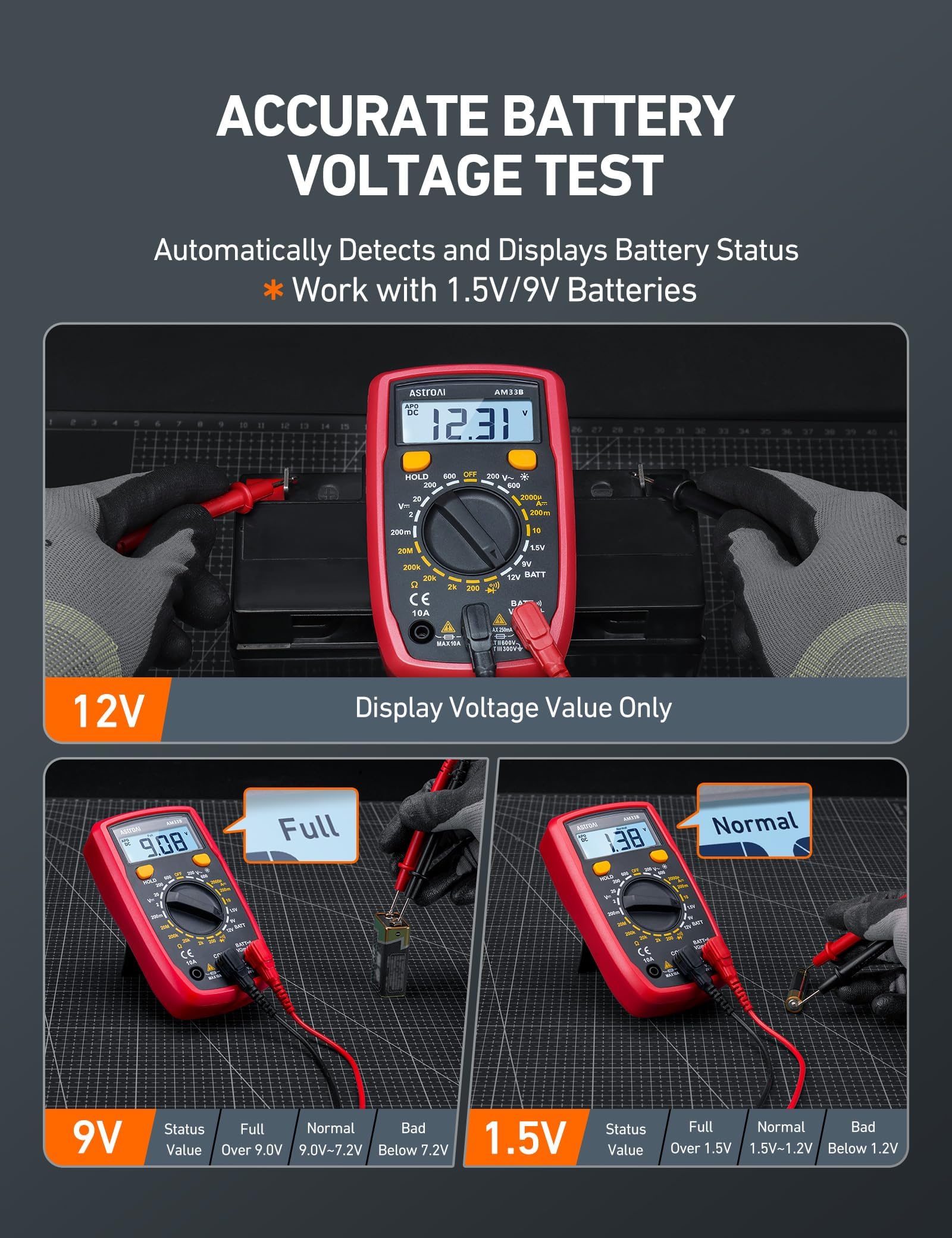

Versatile Digital Multimeter - Accurately measures AC/DC Voltage, DC Current, Resistance, and Diode. This Multimeter is a really useful tool for solving industrial and household electrical issues. Suitable for Household Outlets, Fuses, Batteries (including Vehicles), Automotive Circuit Troubleshooting, Charging Systems, Testing electronics in Cars etc.
Troubleshooting with Accuracy - This Multimeter has a sampling speed of 2 times per second; Built-in a backlight LCD display with 3 ½ digits (1999 count) 0.6”, and high polarity including negative and positive readings.

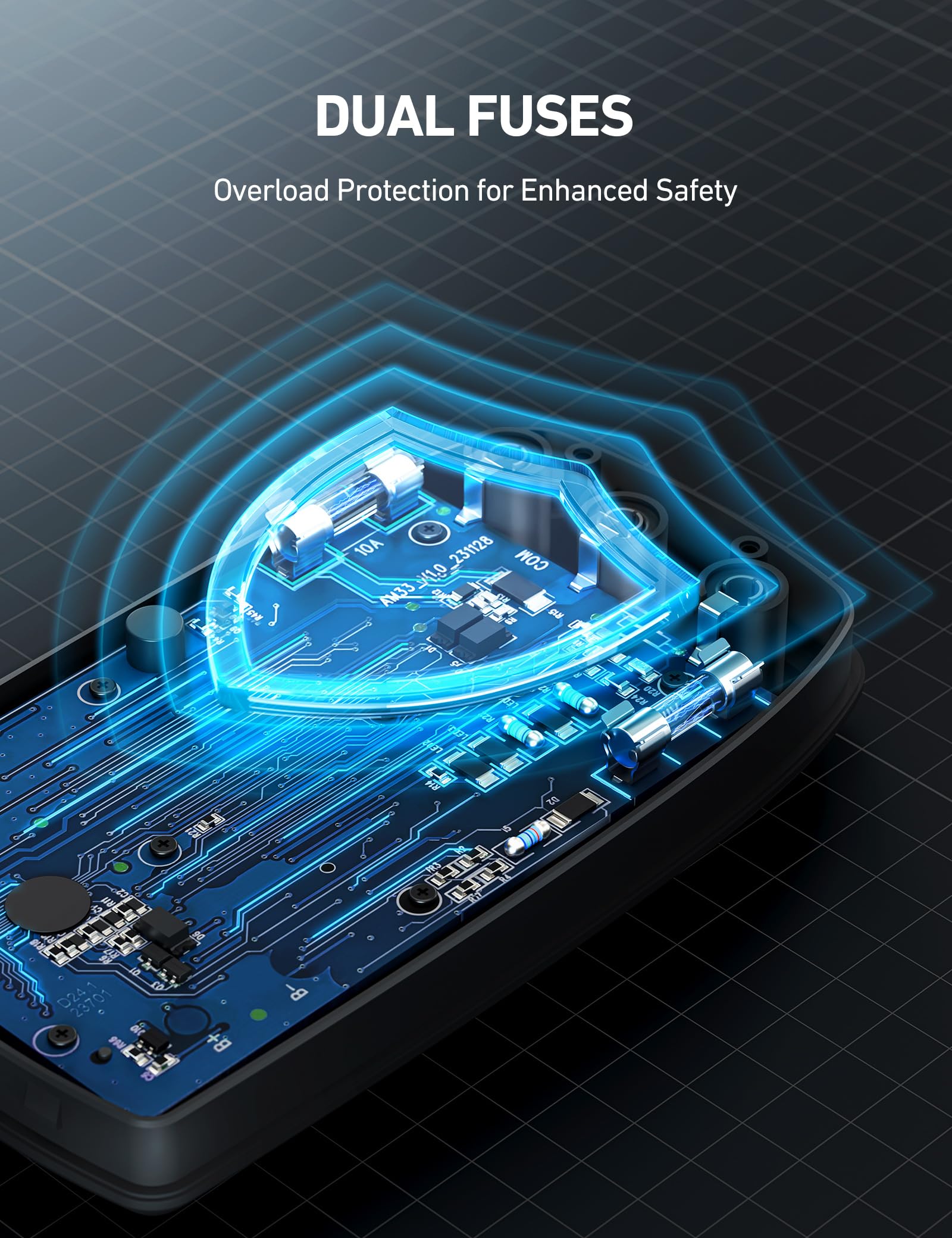

Ensures Safety - Double fuse is anti-burn and protects from overloading. The silicone cover can protect the multimeter from failing damage and prevent electric shocks. And low battery indication will be displayed when battery power is low.

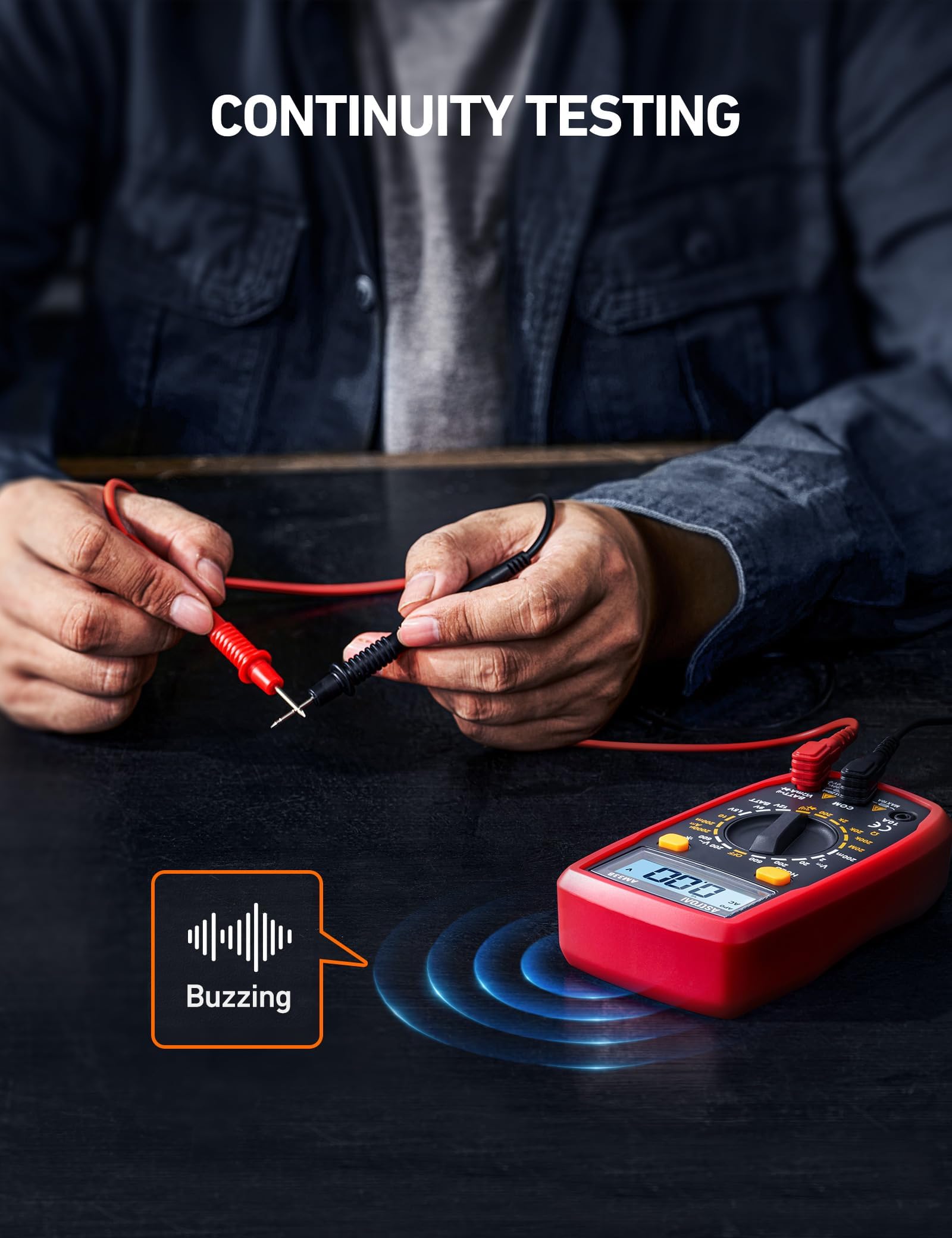

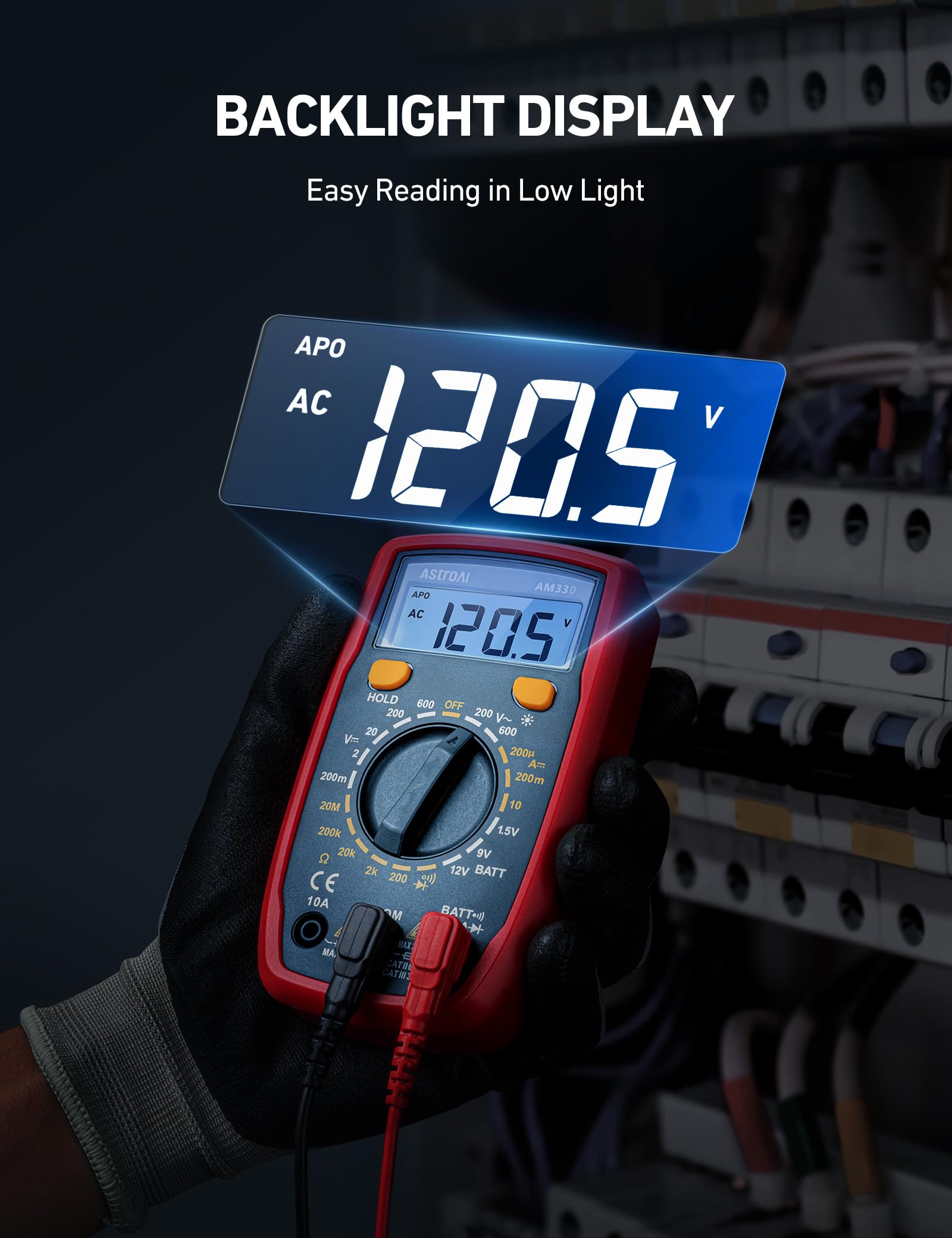

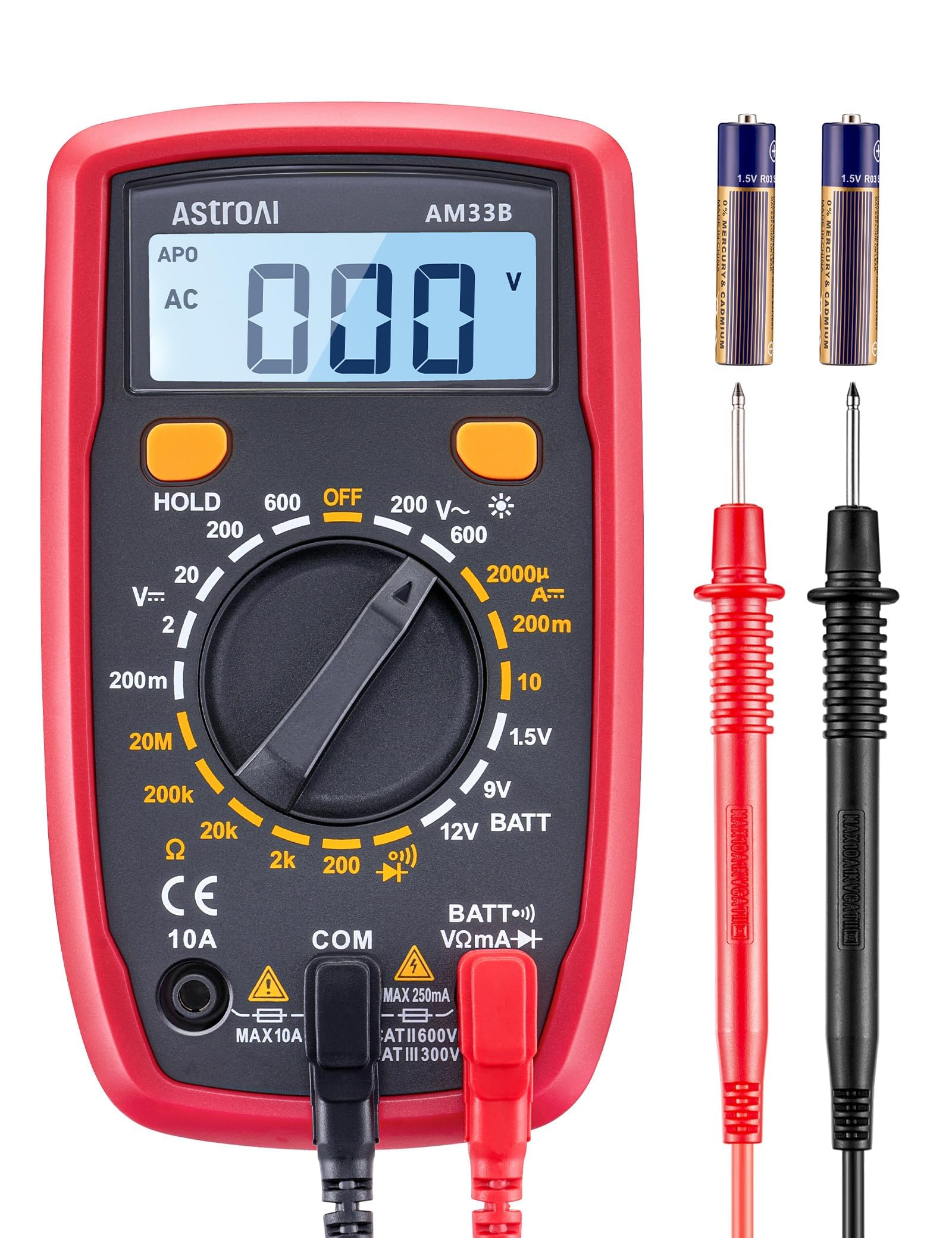

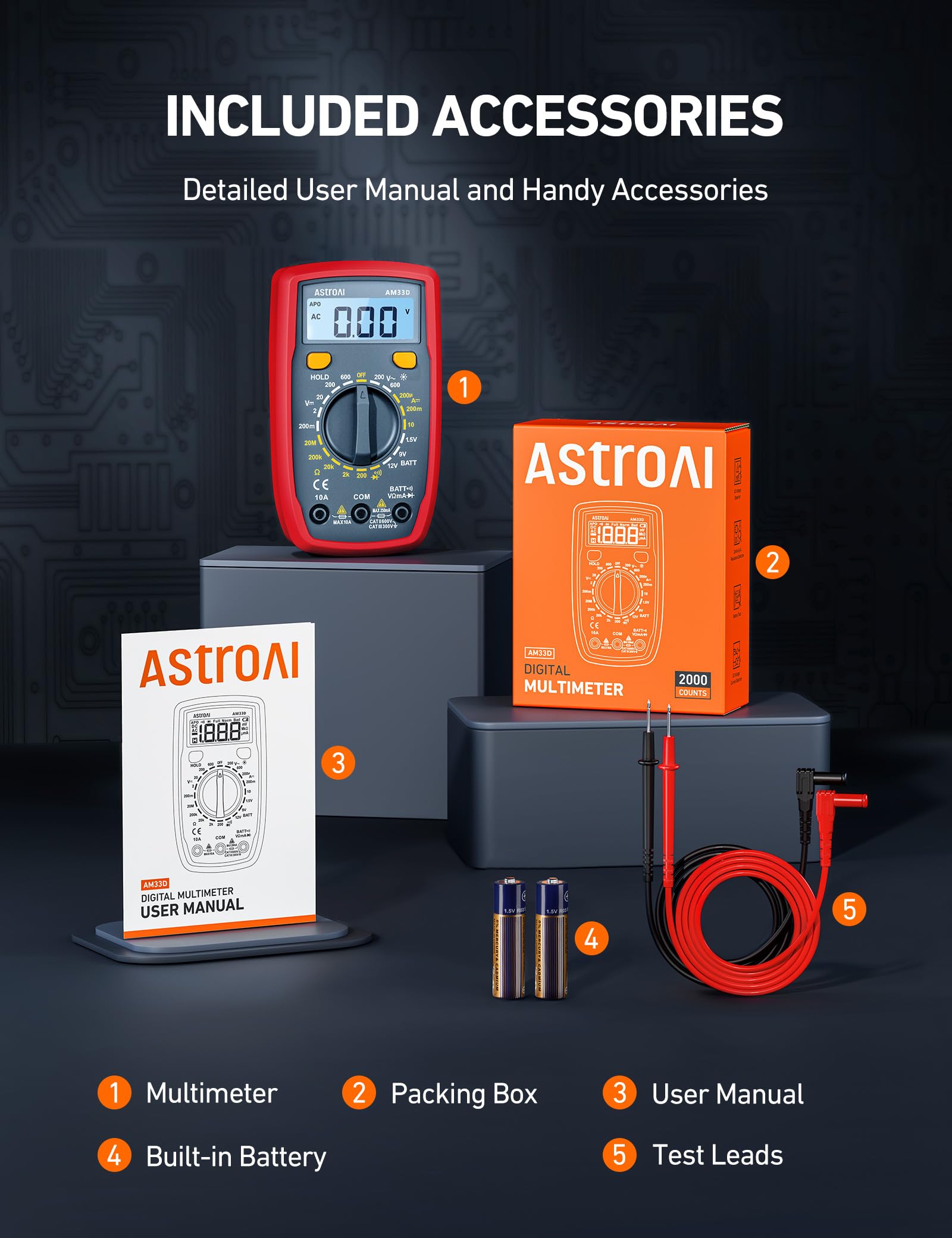

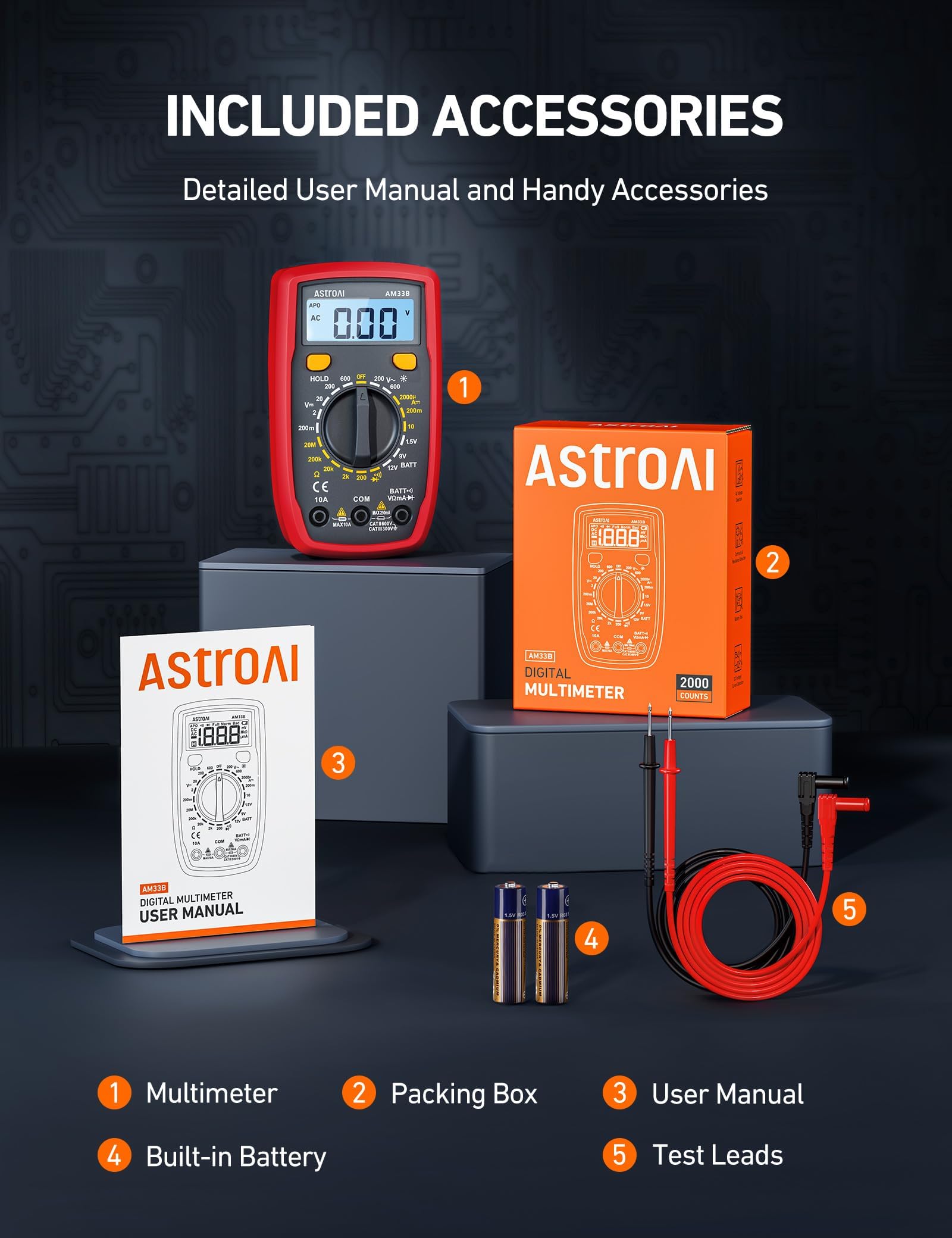

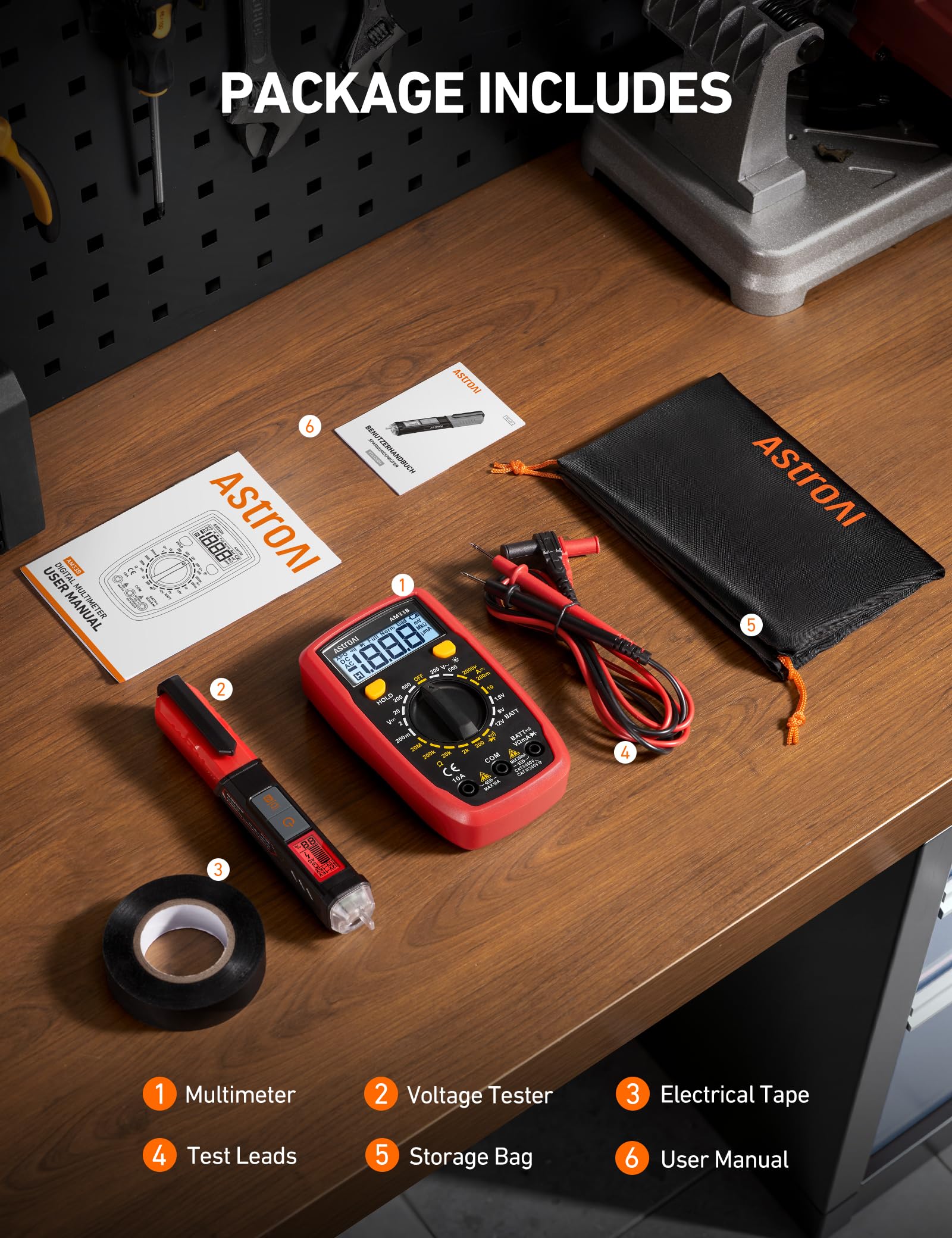

Ease of Use - Support Data Hold, Auto Shutoff and Continuity Buzzer. Includes Convenient feature like LCD Backlit Screen makes it easy to use in dimly light areas. Batteries/Set of Test Leads/User Manual are Included.
Professional Technical Support Team - If you have any questions about the product, feel free to contact us! Our California-based support team will respond within 24 hours.
