Blackmagic Design ATEM Mini Pro HDMI Live Stream Switcher (SWATEMMINIBPR)

$517.50 USD

~~$517.50 USD~~ $517.50 USD

Sale Sold out

Style Atem Mini Pro

Connect up to 4 Independent Cameras

With 4 to 8 HDMI inputs depending on the model, you can connect multiple cameras for different views. All video sources will re-sync to the switcher if they operate at different video standards so you don't have to worry about connecting video devices as they all just work.

Live Stream via Ethernet

Live stream using a built in hardware streaming engine via Ethernet connection without the need for a computer. That means you can live stream to YouTube, Facebook and Twitch in better quality, without dropped frames and with simpler settings.

Easy to Use and Fast to Learn

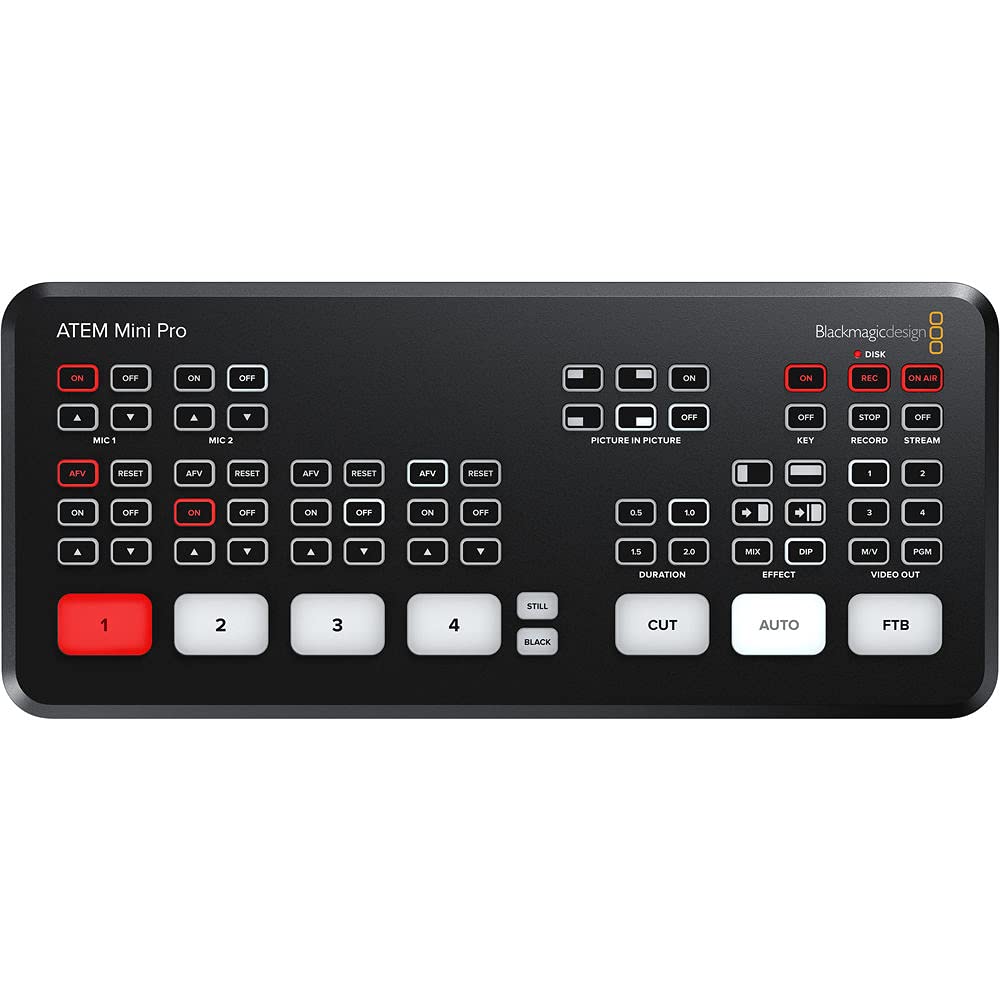

ATEM Mini Pro makes switching easy with cut/auto buttons, pro transitions, picture-in-picture, and media players for titles and graphics.

Connect 5G or 4G Phones

ATEM Mini Pro supports 4G/5G phone tethering via USB for backup internet, auto-switches connection, and keeps your phone charged!

HDMI Video and USB Webcam

ATEM Mini Pro works as a USB webcam, compatible with Zoom, Teams, OBS & more, stream in 1080p with pro multi-cam broadcast quality.

Record live video

ATEM Mini Pro lets you record streams to USB SSD drives in H.264, supports remote camera control, and easy uploads to YouTube/Vimeo.

ATEM Mini Switchers

	ATEM Mini Pro	ATEM Mini Pro ISO	ATEM Mini Extreme	ATEM Mini Extreme ISO G2
Customer Reviews	1,954	319	184	2
Price	$325.00	$545.00	$1,095.00	$2,195.00
HDMI Inputs	4	4	8	8
HDMI Outputs	1	1	2	3
Audio Inputs	2 x 3.5mm	2 x 3.5mm	2 x 3.5mm	2 x XLR, 1 x BNC MADI
Audio Outputs	None, embedded audio only	None, embedded audio only	1 x 3.5mm	1 x 6.35mm
SSD Recording	Program Only	ISO	Program Only	ISO
SuperSource	✘	✘	✔	✔
Multiview	✔	✔	✔	✔

Additional Specifications

HD Video Input Standards	720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60
HD Video Output Standards	1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Video Streaming Standards	1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Video Sampling	4:2:2 YUV
Color Precision	10-bit
Color Space	Rec 709
Upstream Keyers	1
Downstream Keyers	1

Advanced Chroma Keyers	1
Linear/Luma Keyers	2
Pattern Generators	1
Color Generators	2
Direct Recording	1 x USB-C 3.1 Gen 1 expansion port for external media to direct record a .mp4 H.264 with AAC audio at the ATEM video standard.
Multiview Monitoring	1 x 10 Views including left right configurable Program/Preview, 4 HDMI inputs, Media Player, Streaming Status, Recording Status and Audio Meters.
Audio Mixer	6 input x 2 channel mixer. Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel. Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control.

FEATURE RICH: Includes 4-camera multiview; cut, mix, dip, wipe, and DVE transitions; luma, linear, chroma, and pattern upstream keys; downstream keyer; and a built-in 6-input, 2-channel audio mixer.
APPLICATIONS: Multicamera live streaming to the Internet or broadcast applications. Perfect for education & training, business presentations, livestream eSport events and more.

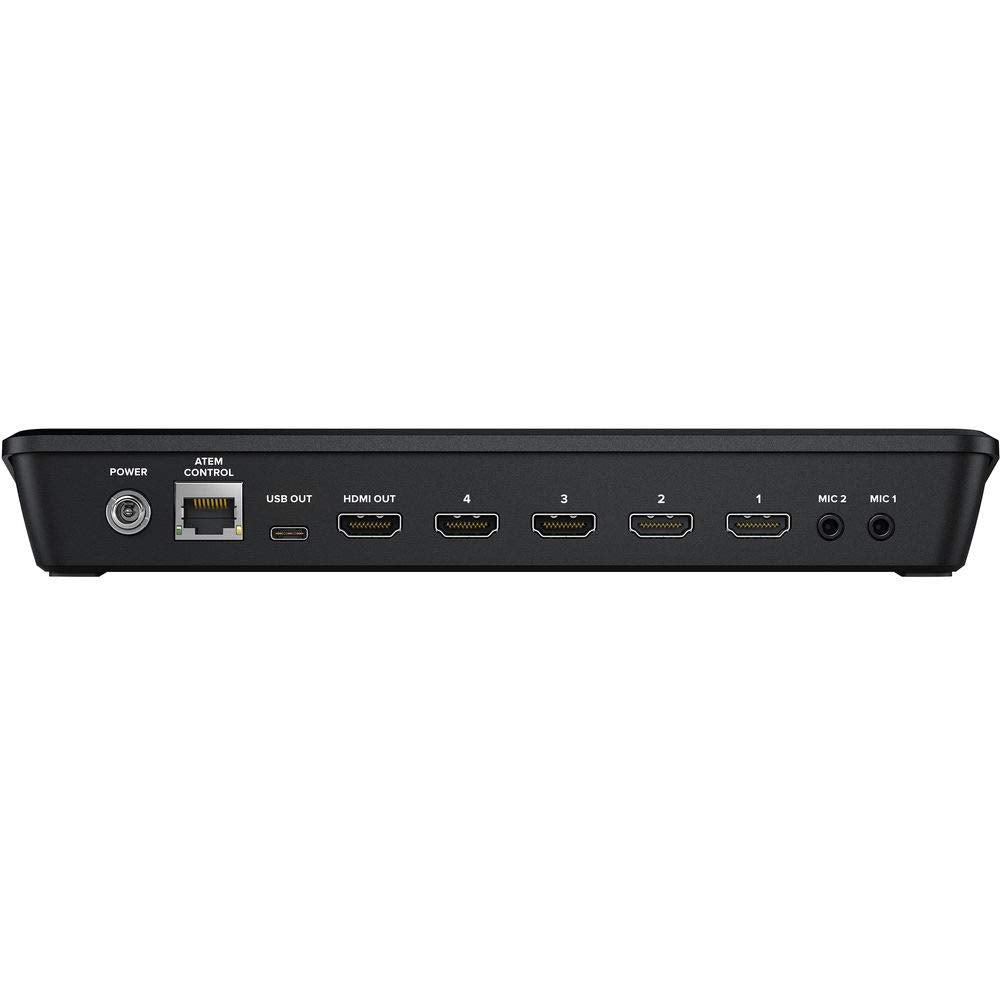

INPUTS: 4 x HDMI Type A (10-bit 4:2:2 YUV), 2-channel embedded audio; 2 x 3.5mm stereo analog audio; 1 x RJ45 Ethernet.
OUTPUTS: 1 x HDMI Type A (10-bit 4:2:2 YUV) with 2-channel embedded audio; multiview output; 1 x USB Type-C 3.1 Gen 1 (for webcam output, panel connection, and external drive recording).
INCLUDES: ATEM Mini Pro HDMI live stream switcher and external 12V DC power supply with international socket adapters.

› See more product details

Color	black
Connector Type	3.5mm Jack, HDMI
Brand	Blackmagic Design
Compatible Devices	Camera
Cable Type	HDMI
