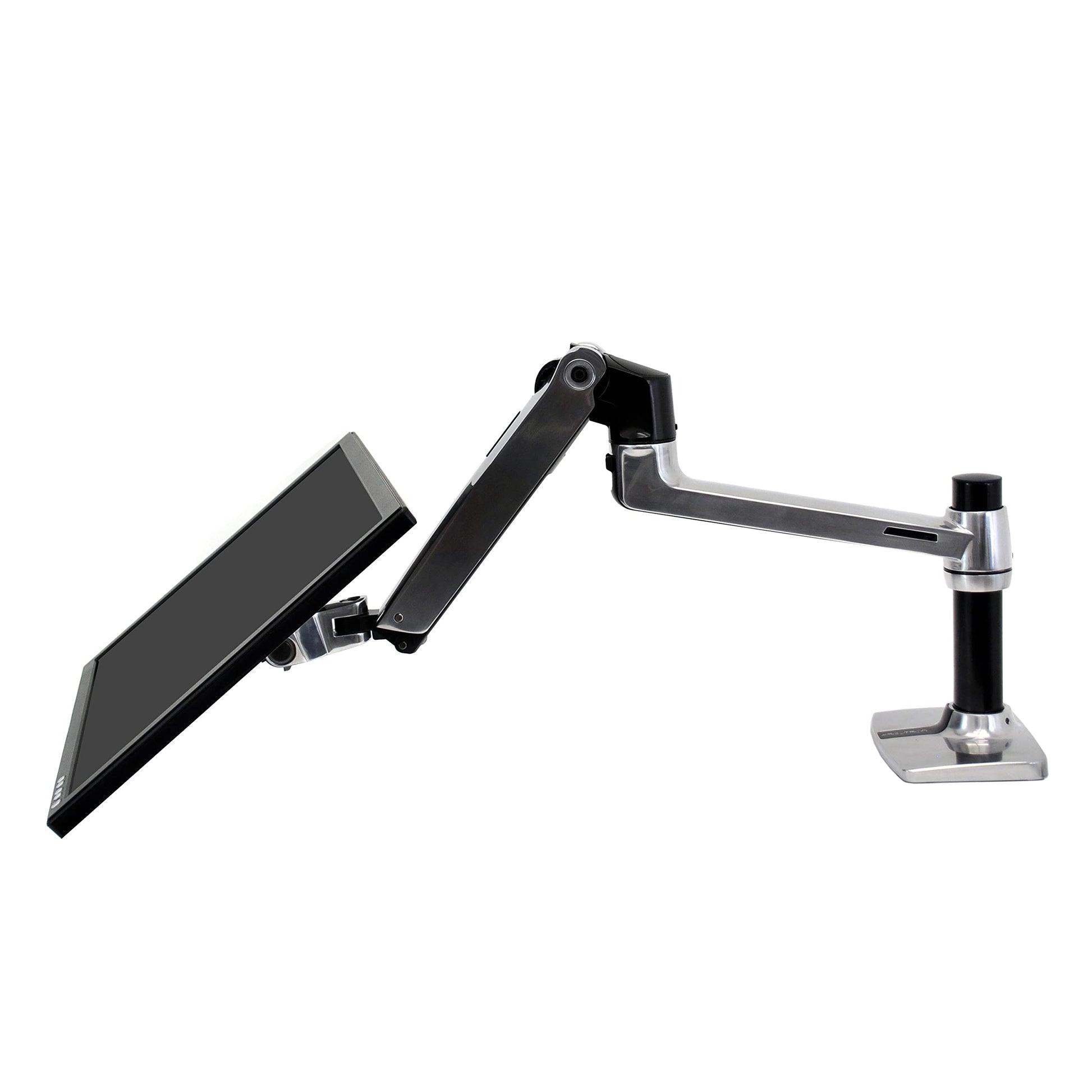

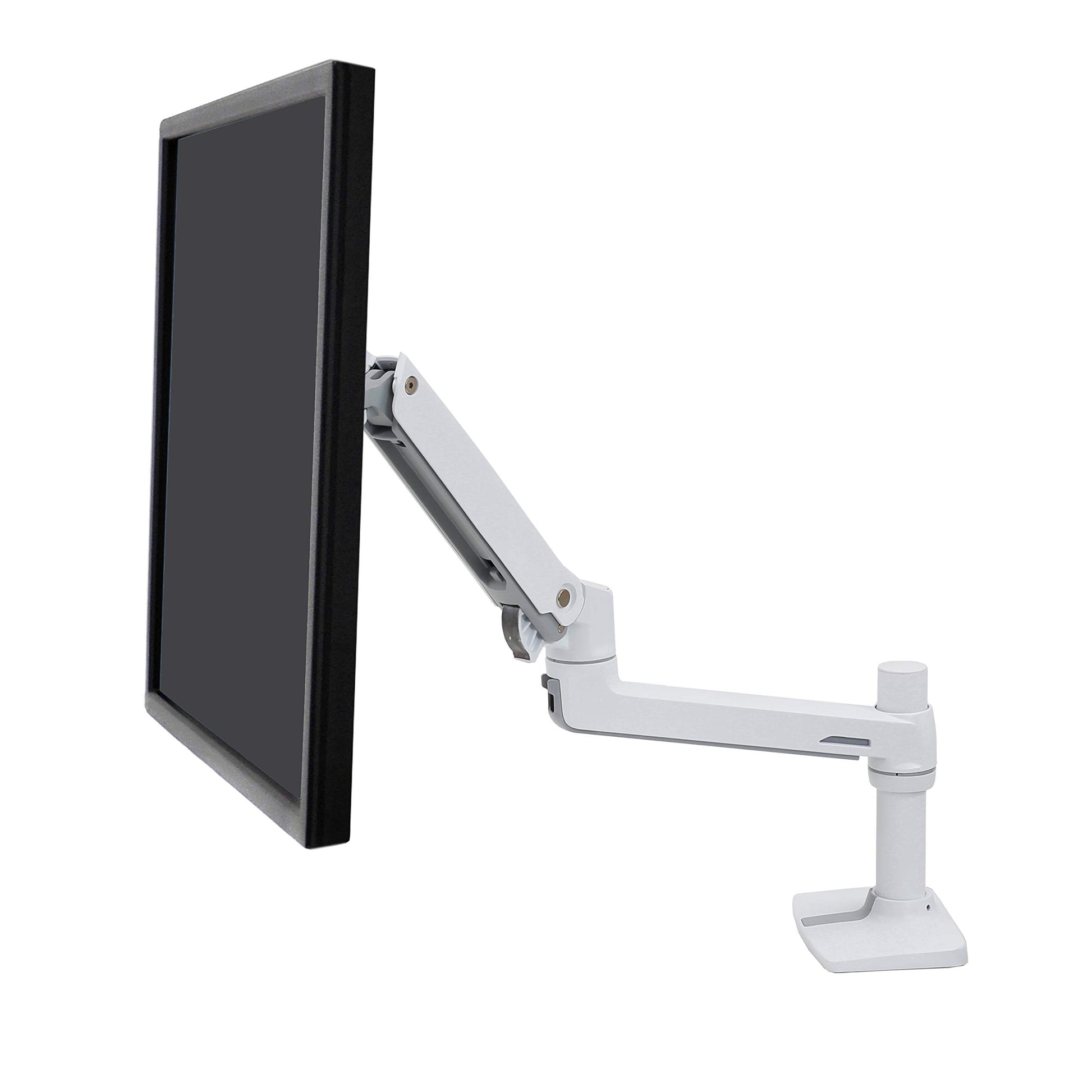

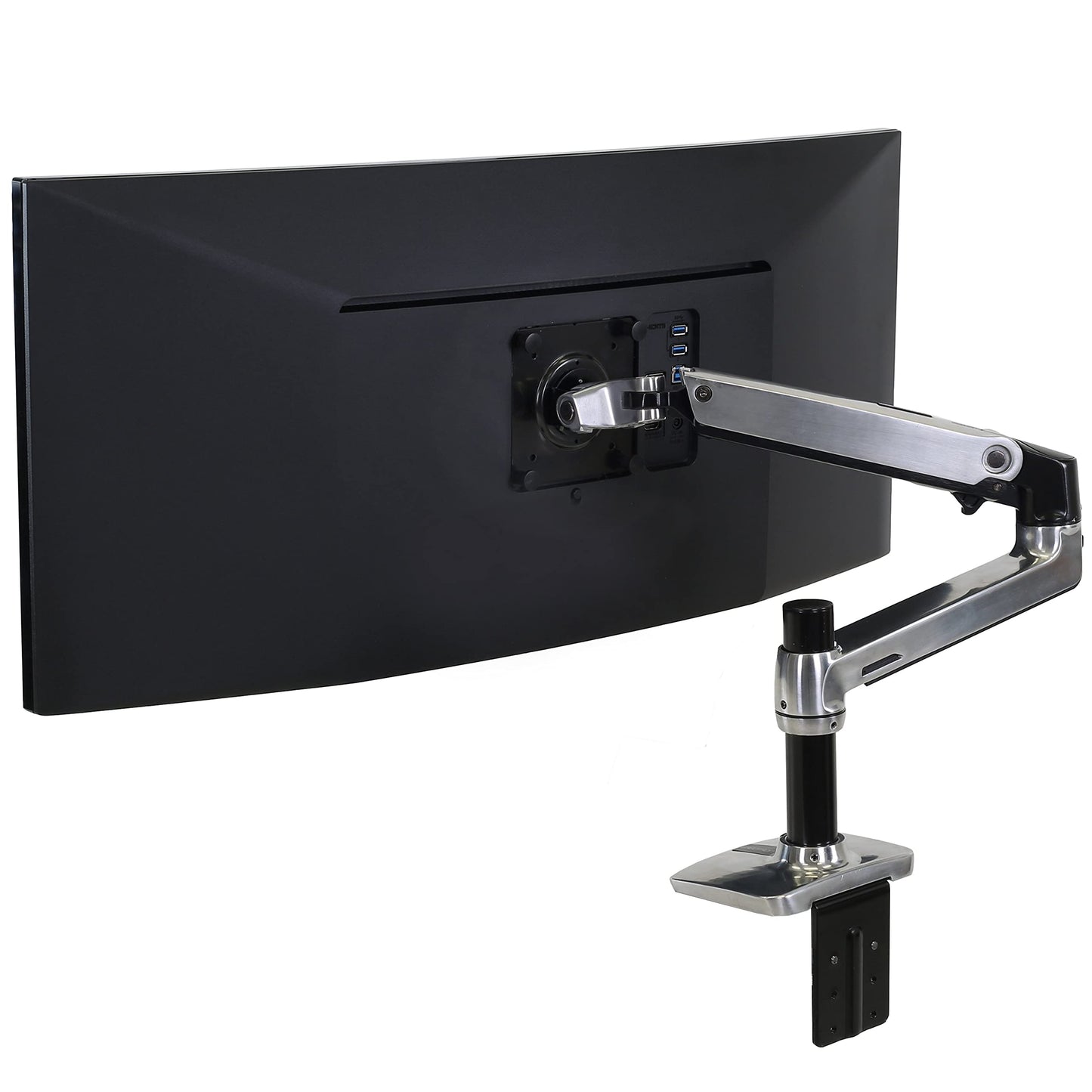

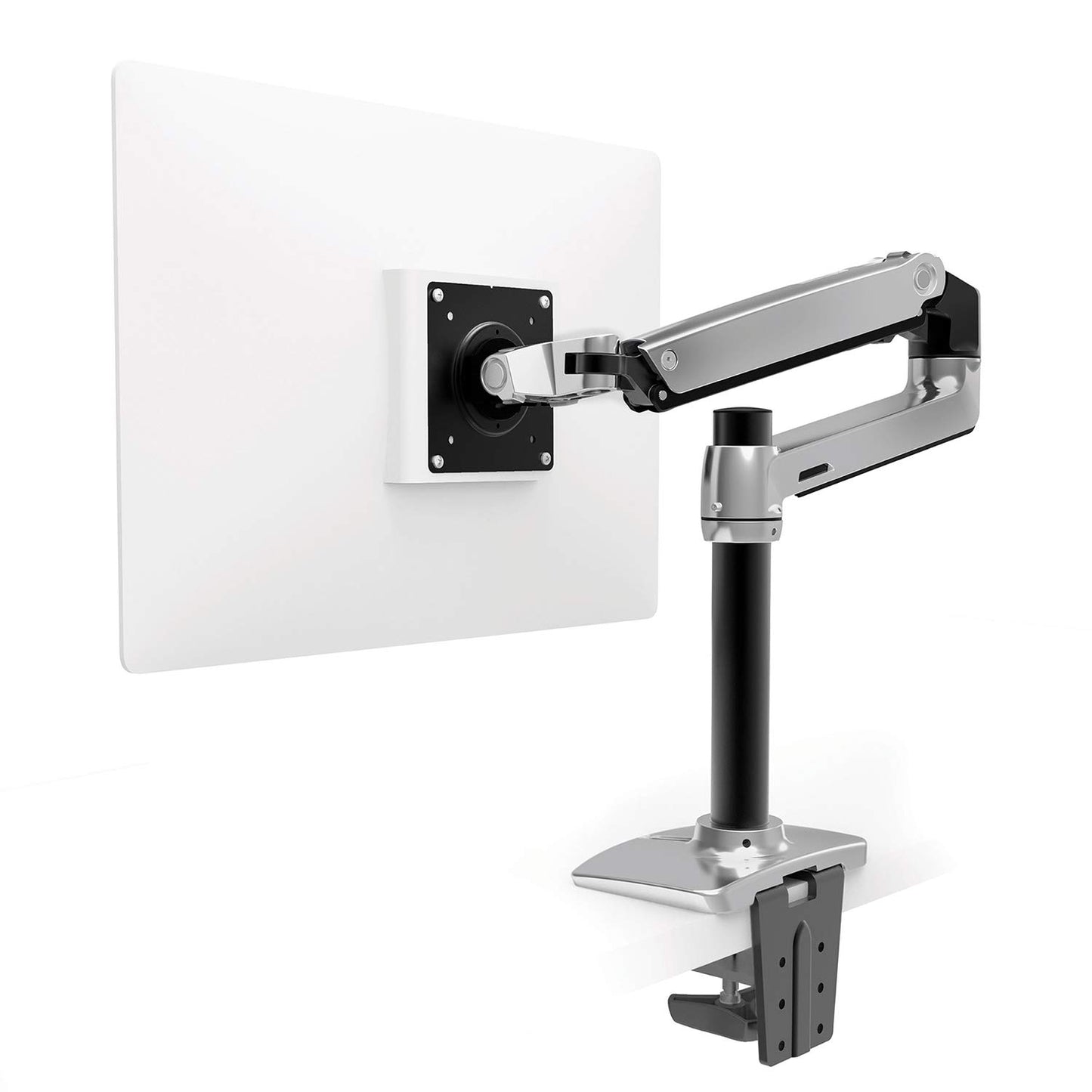

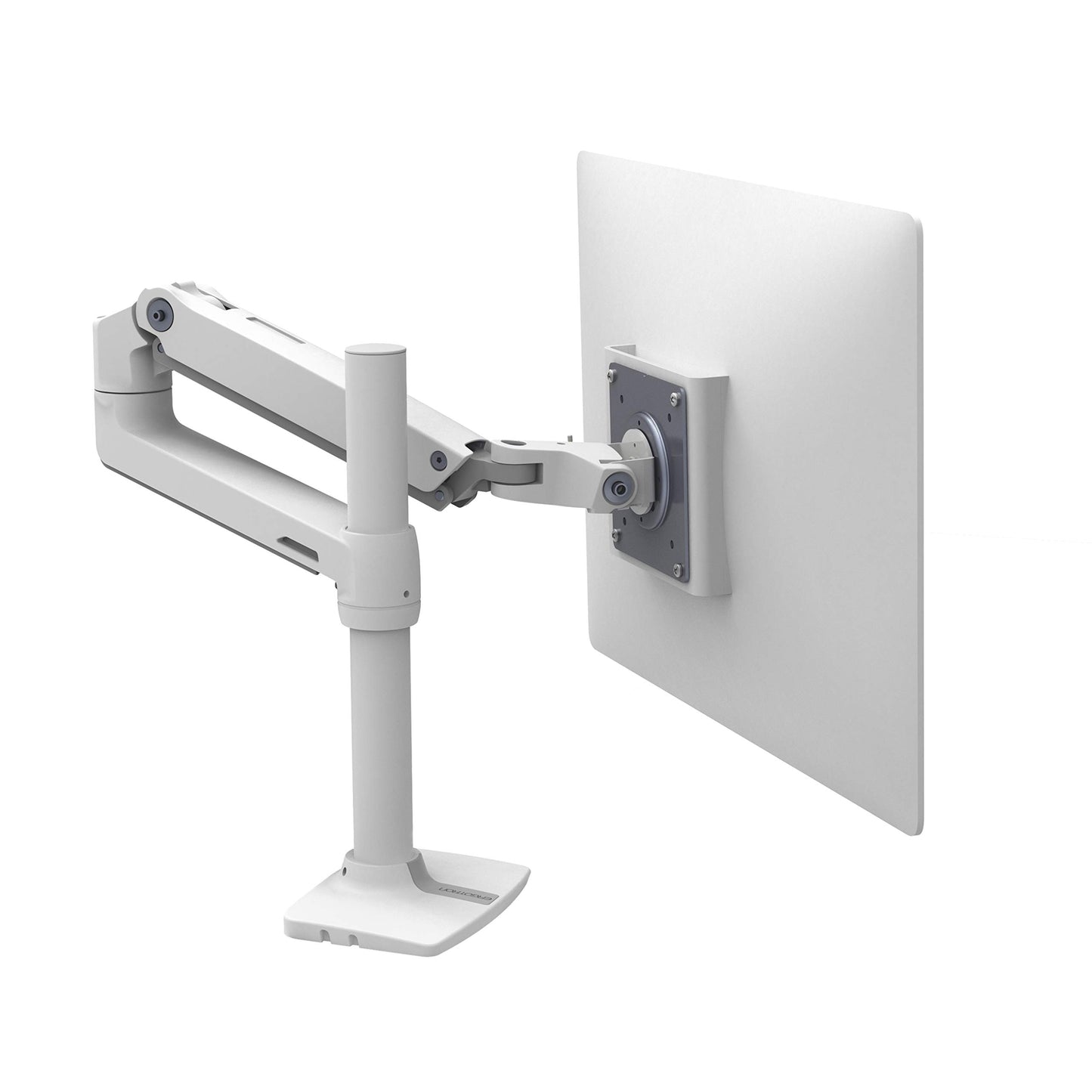

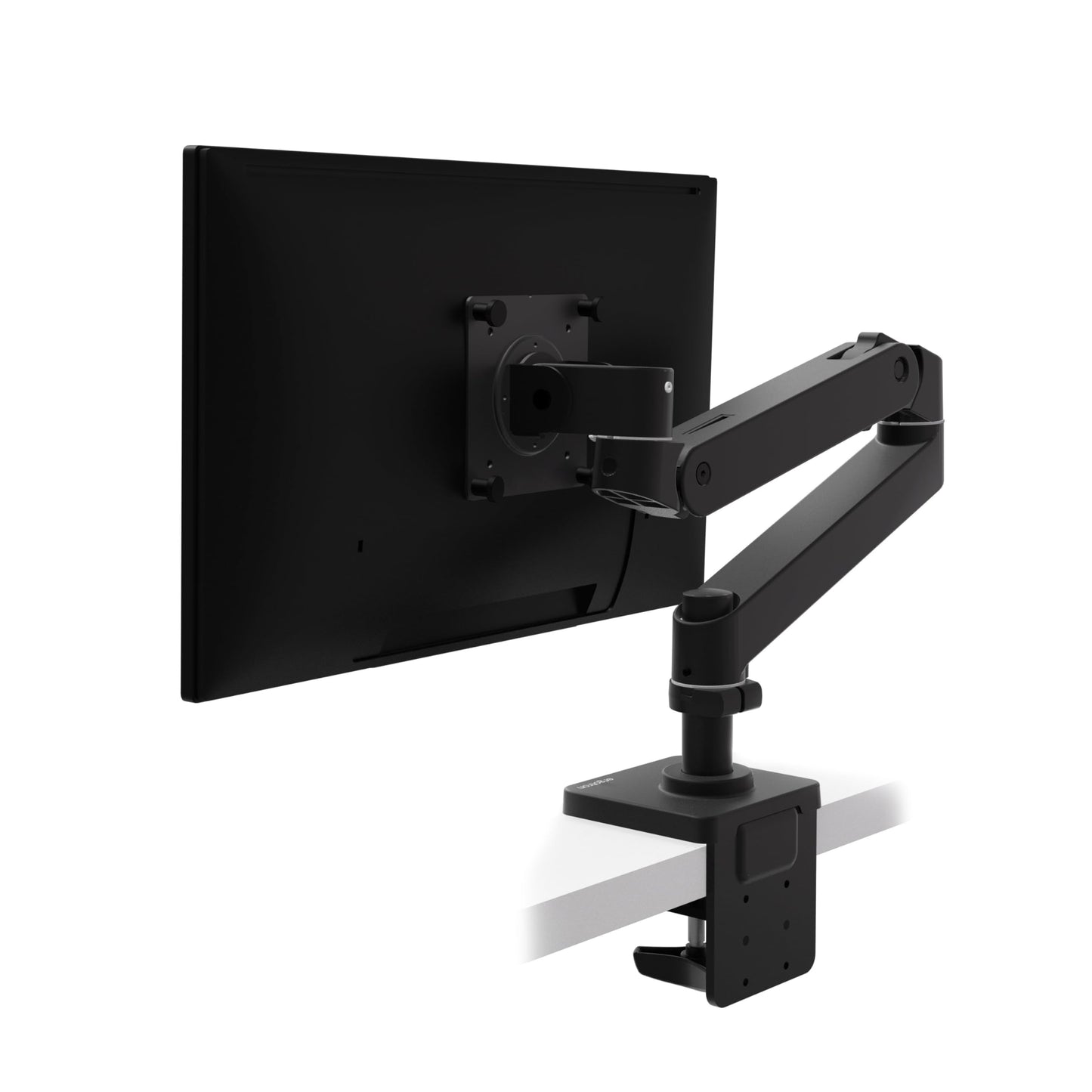

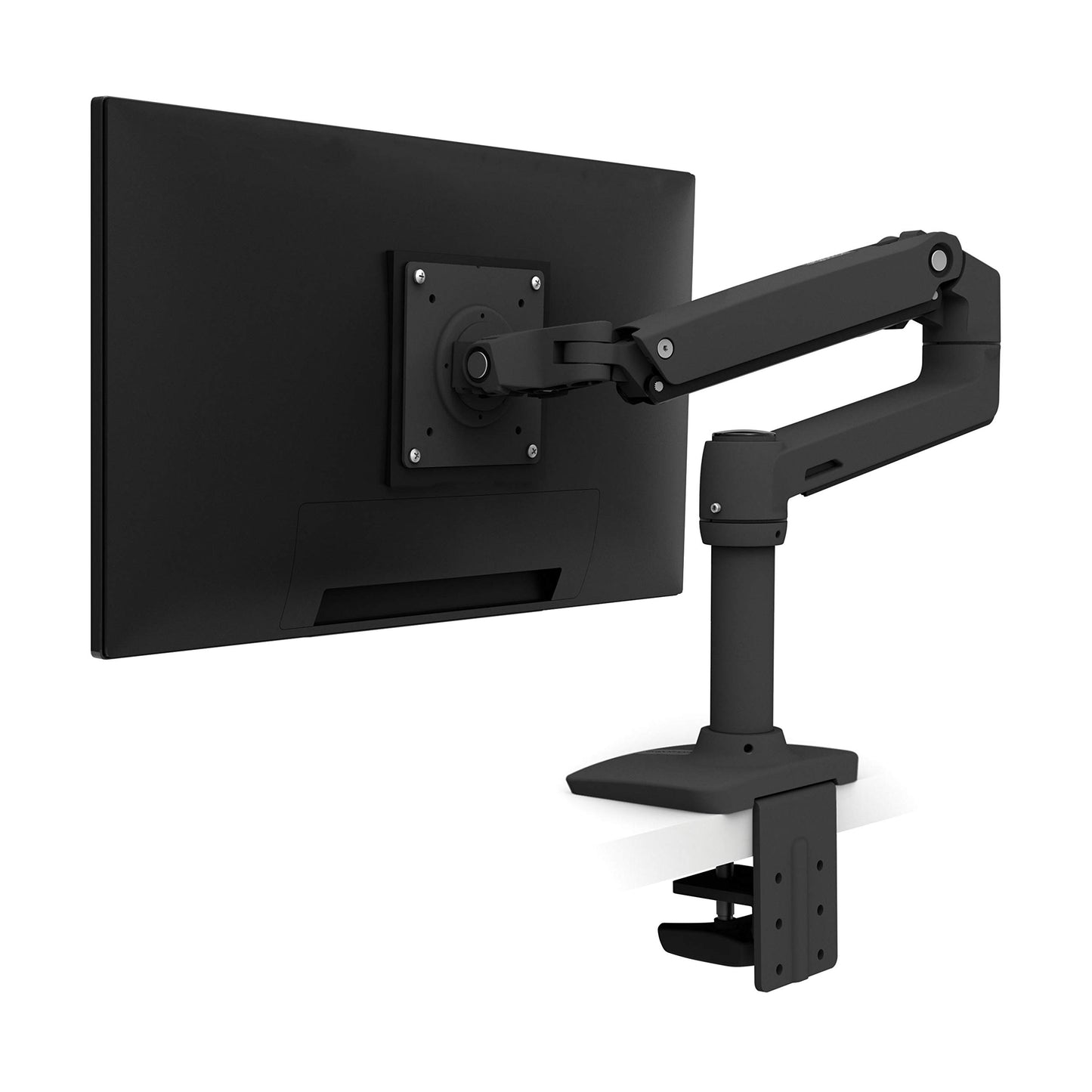

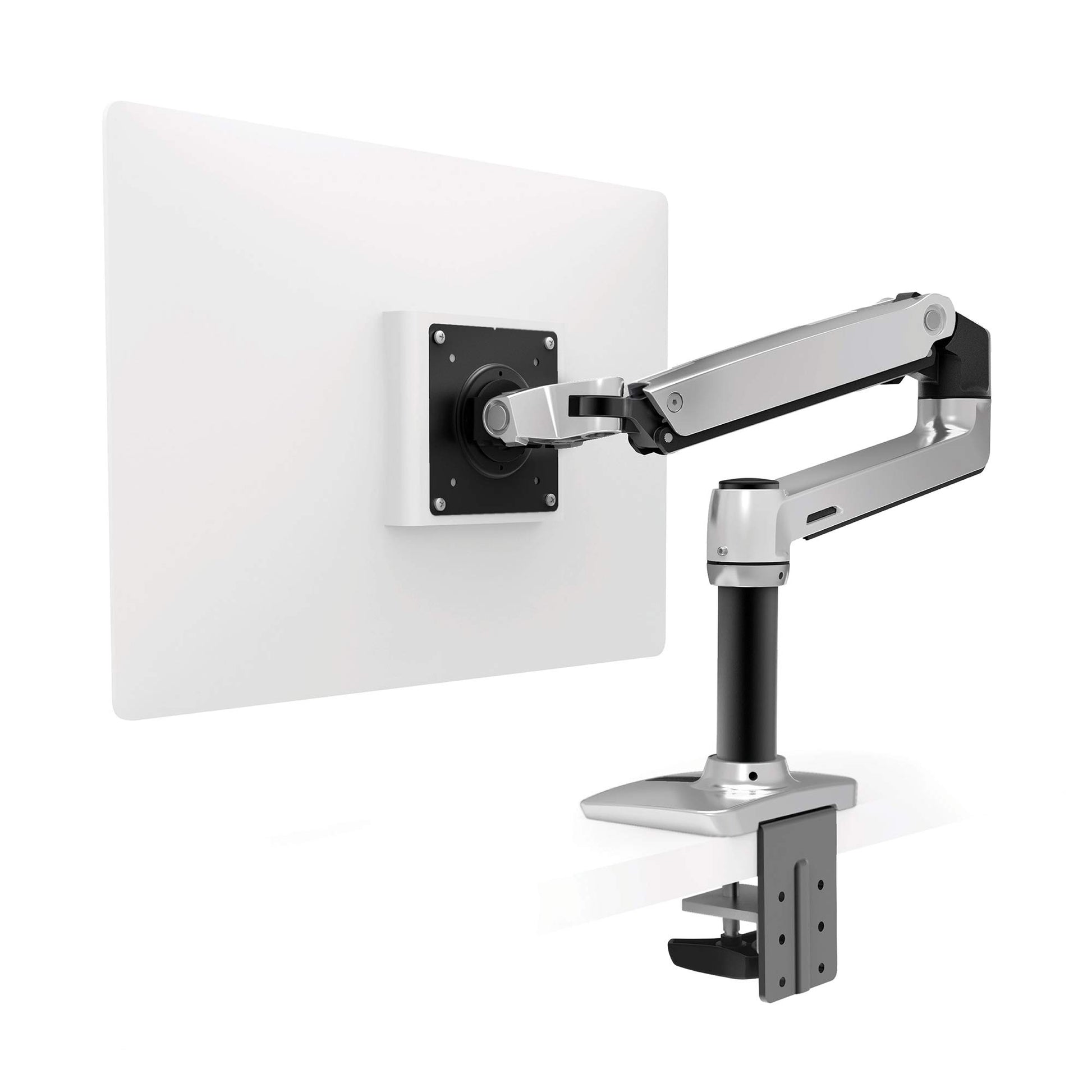

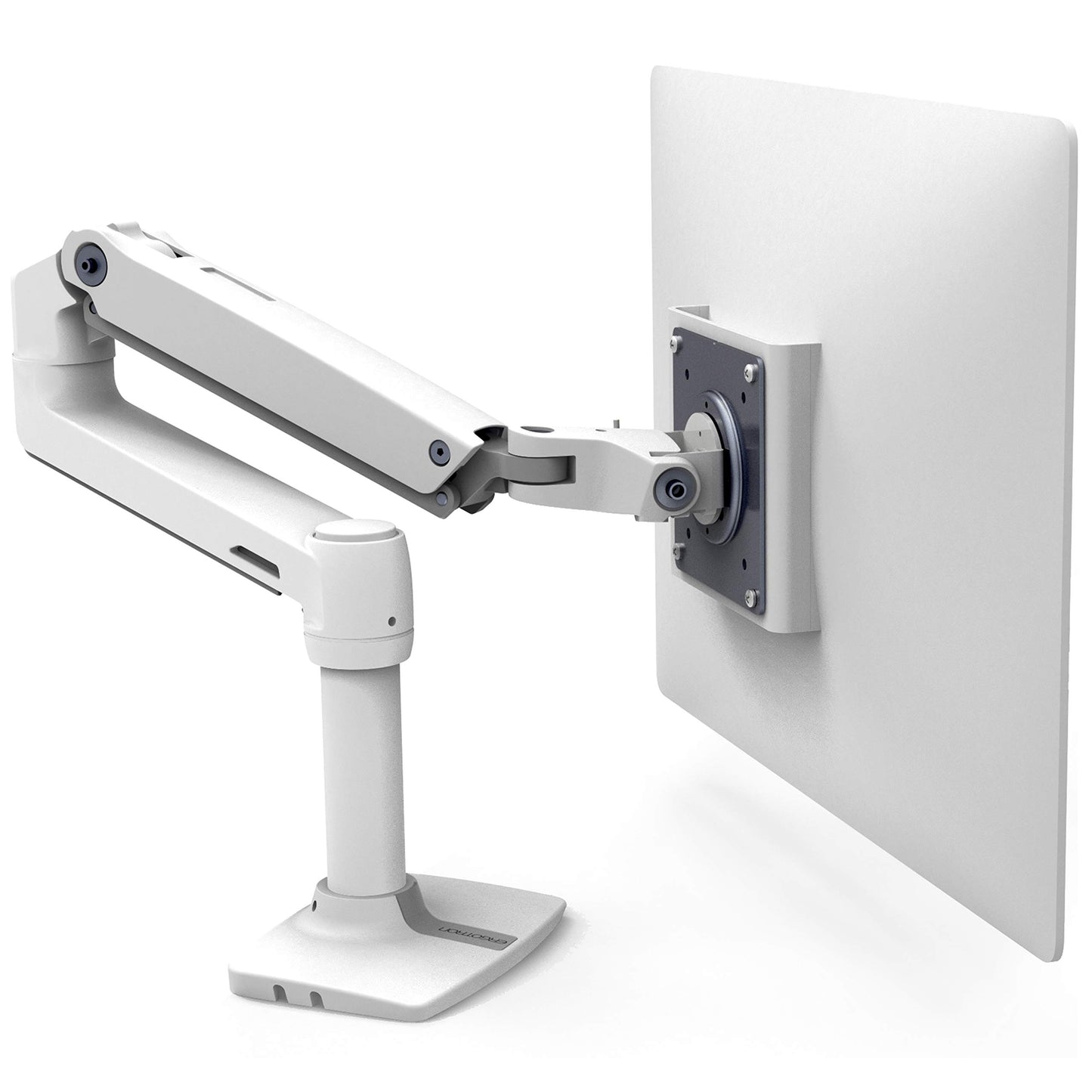

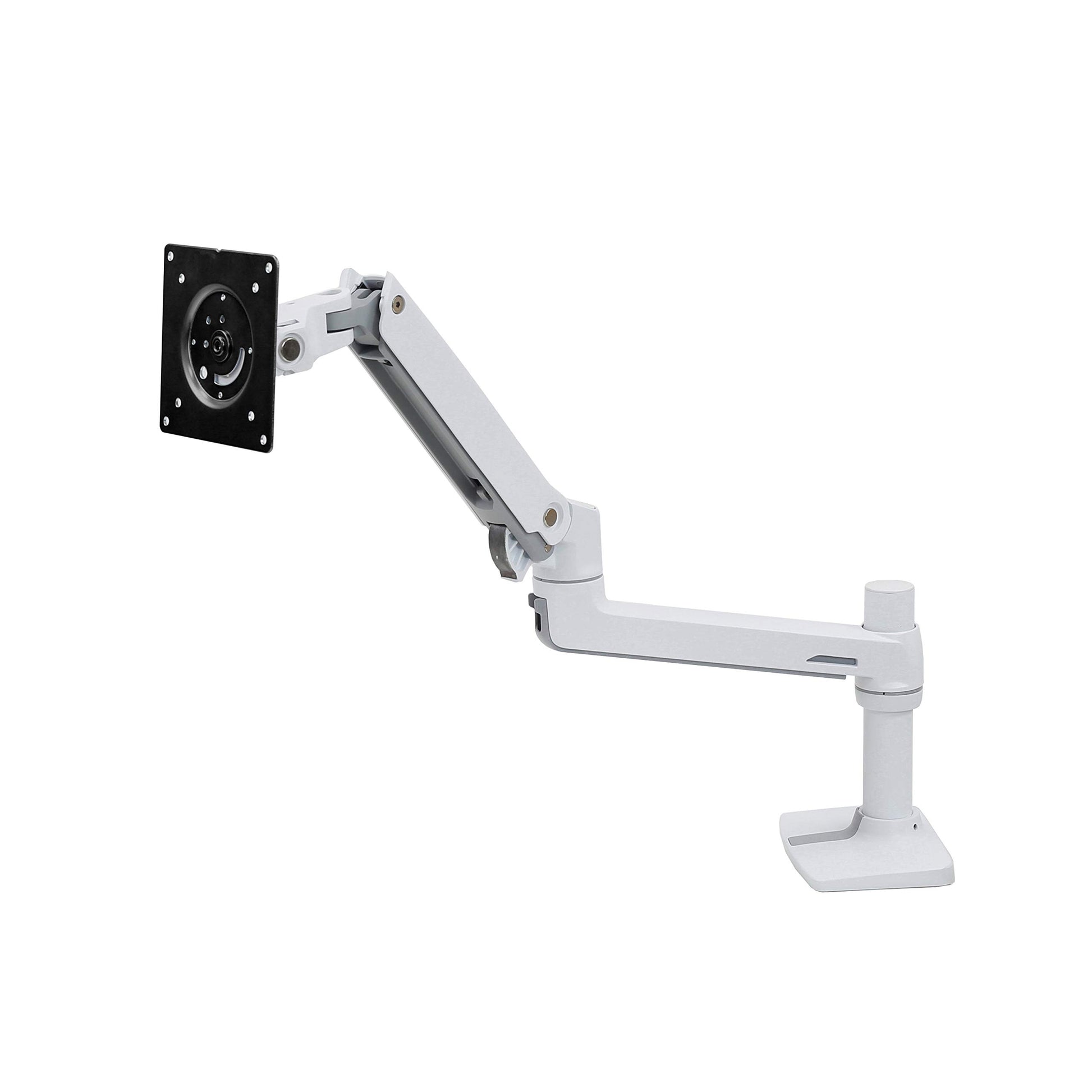

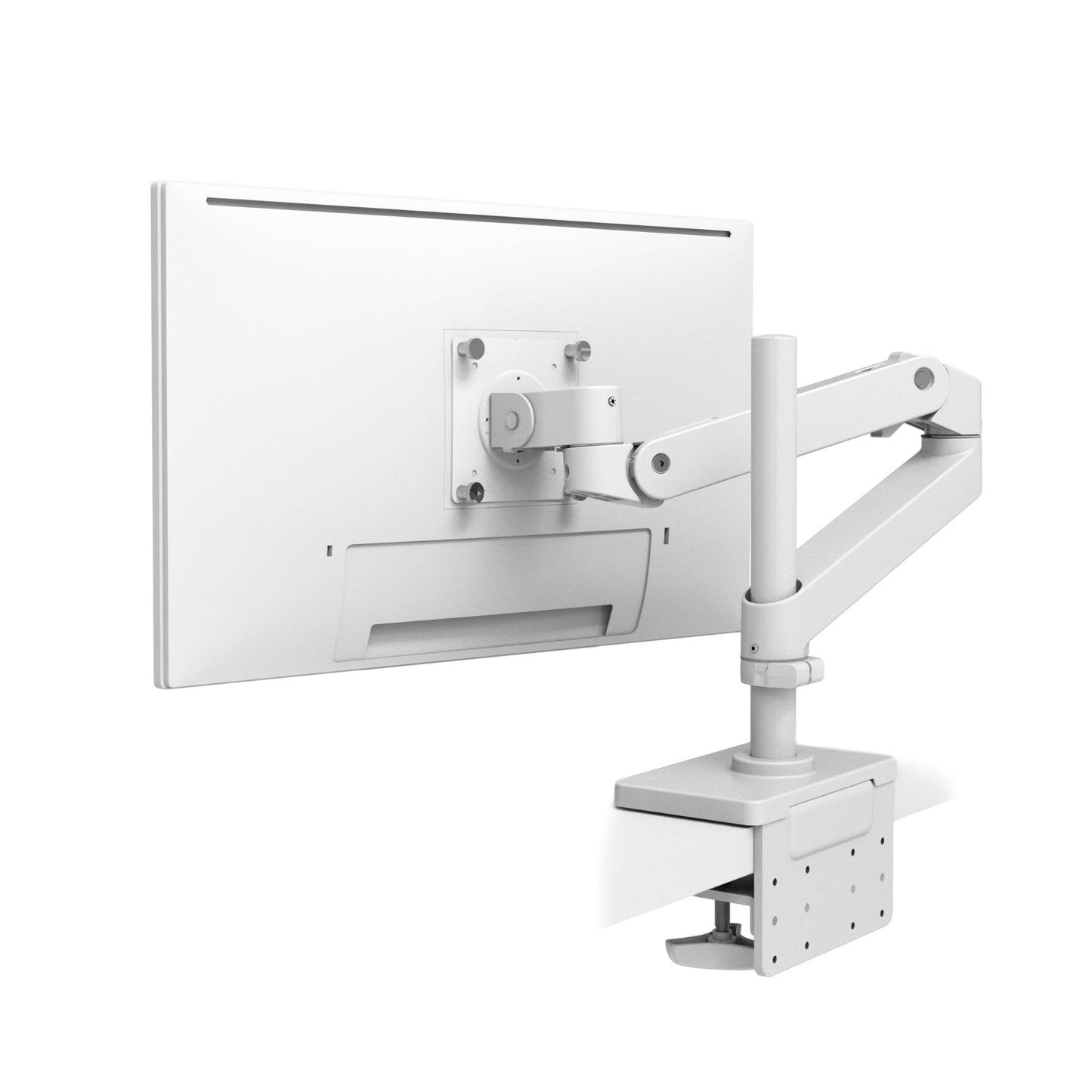

Ergotron – LX Monitor Arm, Single Monitor Desk Mount – fits Flat Curved Ultrawide Computer Monitors up to 34 Inches, 7 to 25 lbs, VESA 75x75mm or 100x100mm – Polished Aluminum
Ergotron – LX Monitor Arm, Single Monitor Desk Mount – fits Flat Curved Ultrawide Computer Monitors up to 34 Inches, 7 to 25 lbs, VESA 75x75mm or 100x100mm – Polished Aluminum
Couldn't load pickup availability
-

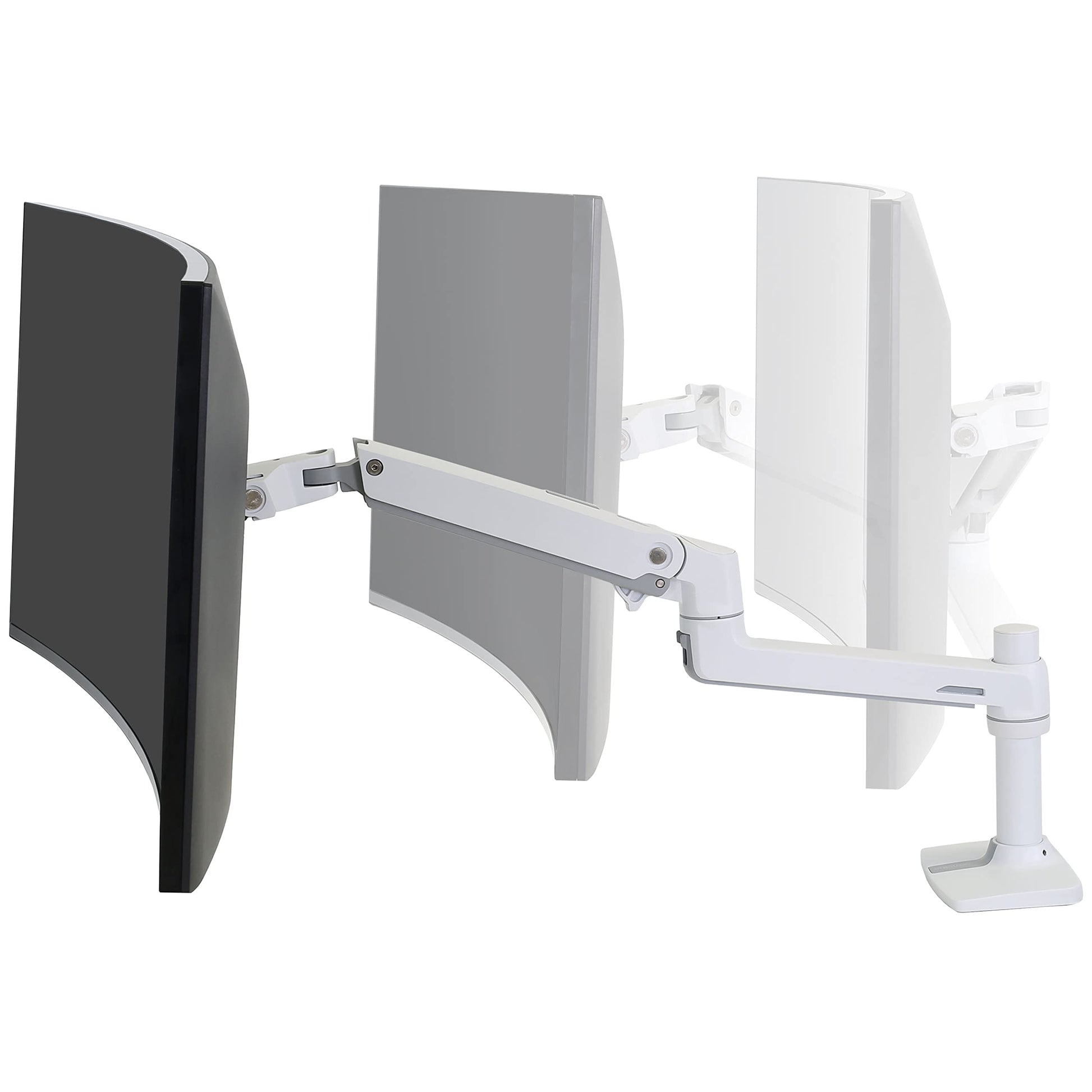

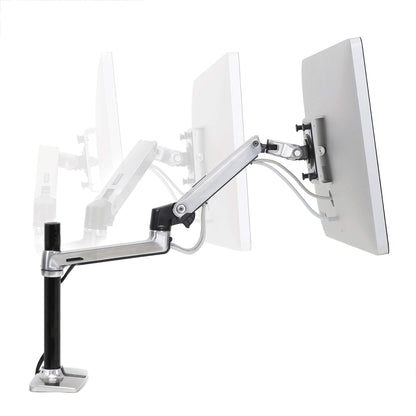

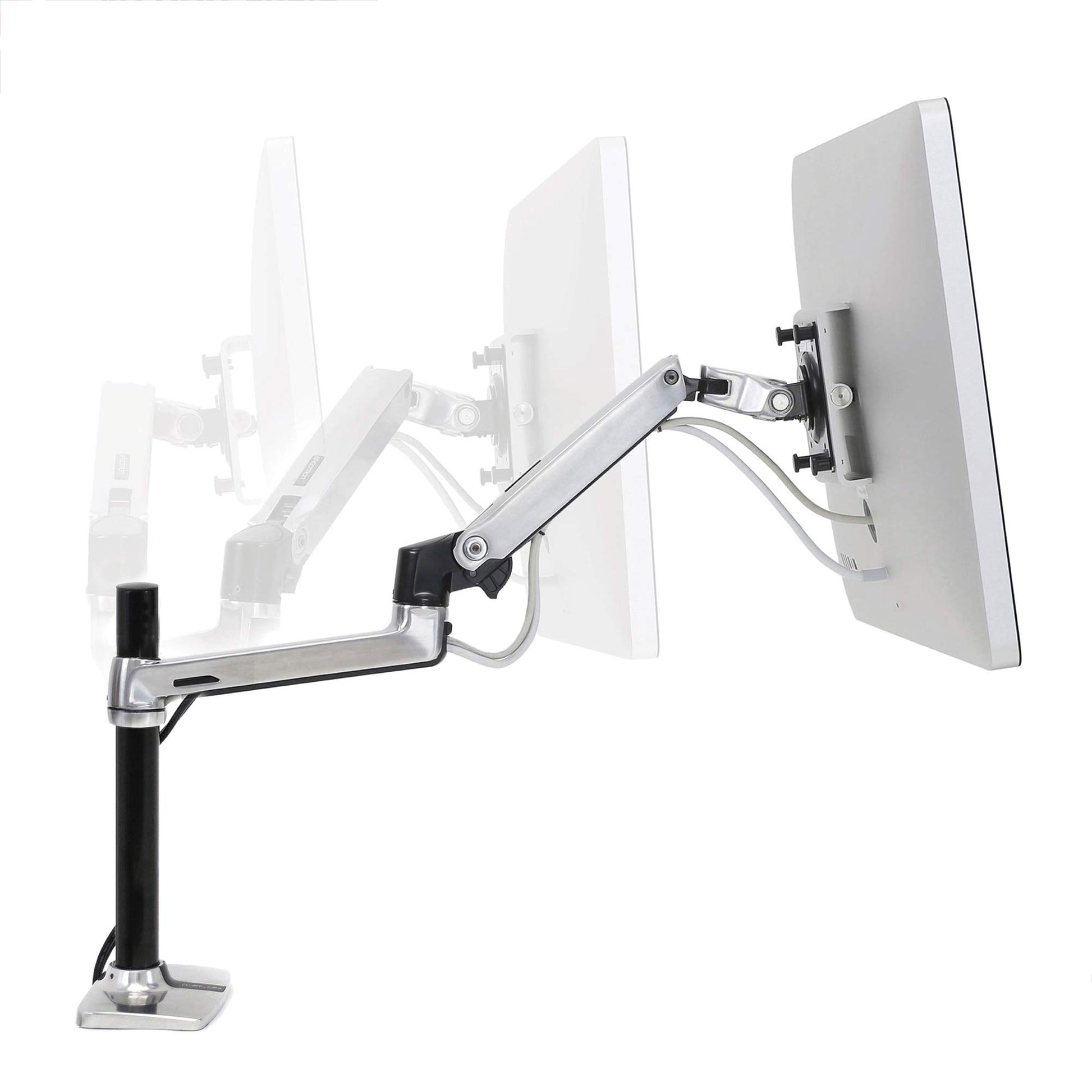

Find Your Comfort Zone
Large range of motion adds flexibility and proven ergonomics for enhanced comfort and productivity.
-
Compatible with Latest Technology
Universal VESA interface holds ultrawide curved displays up to 34 pounds.
-
Neutral Palette Fits Your Space

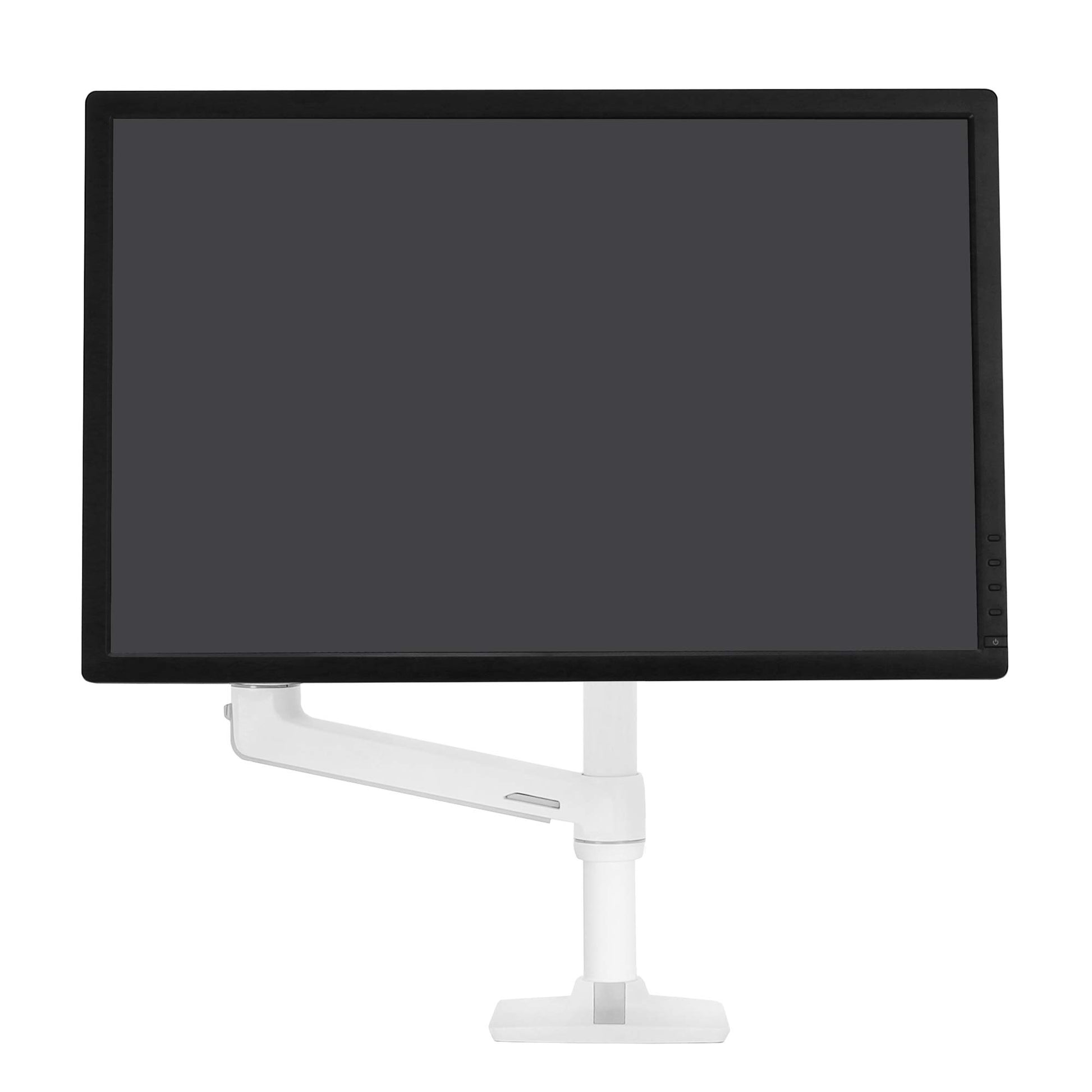

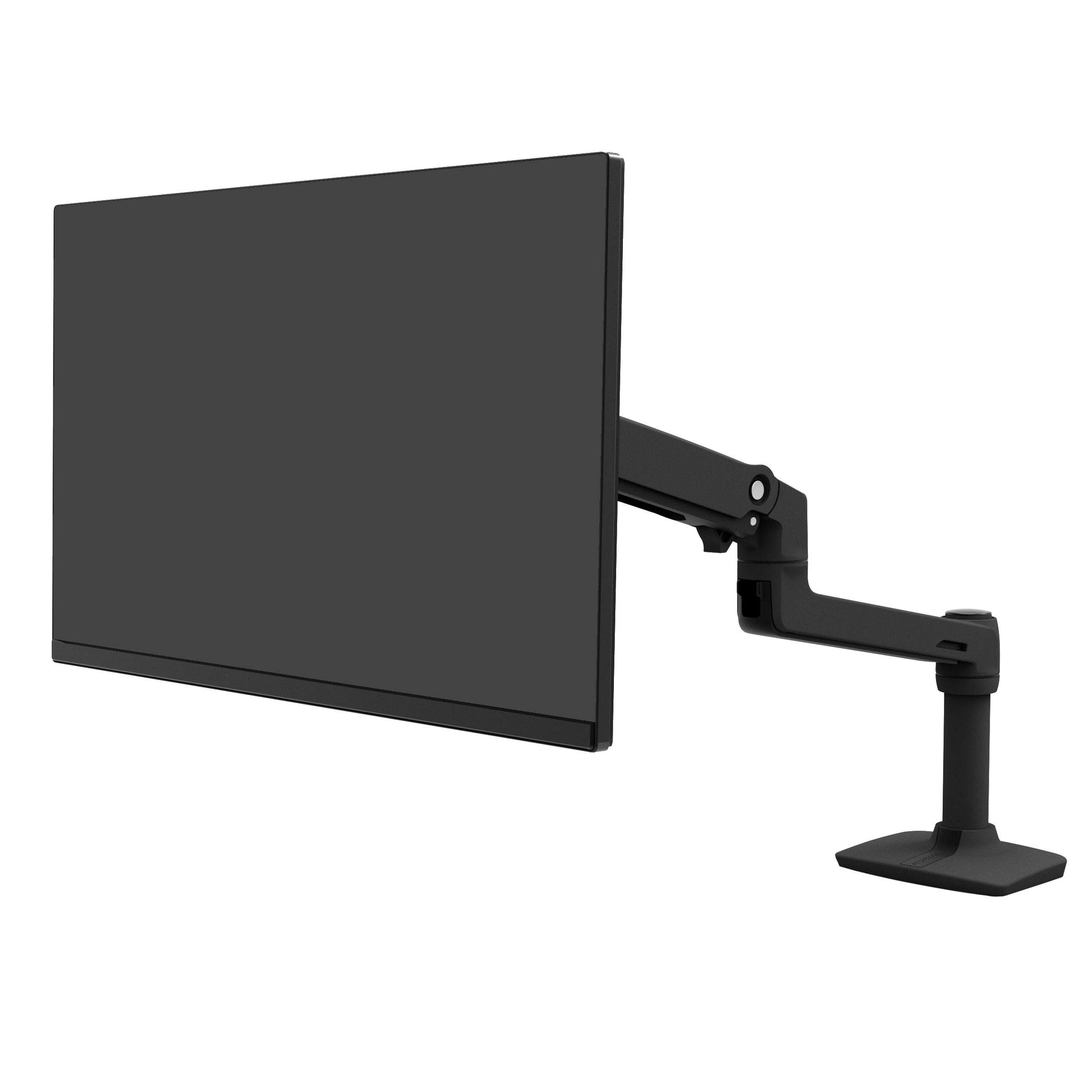

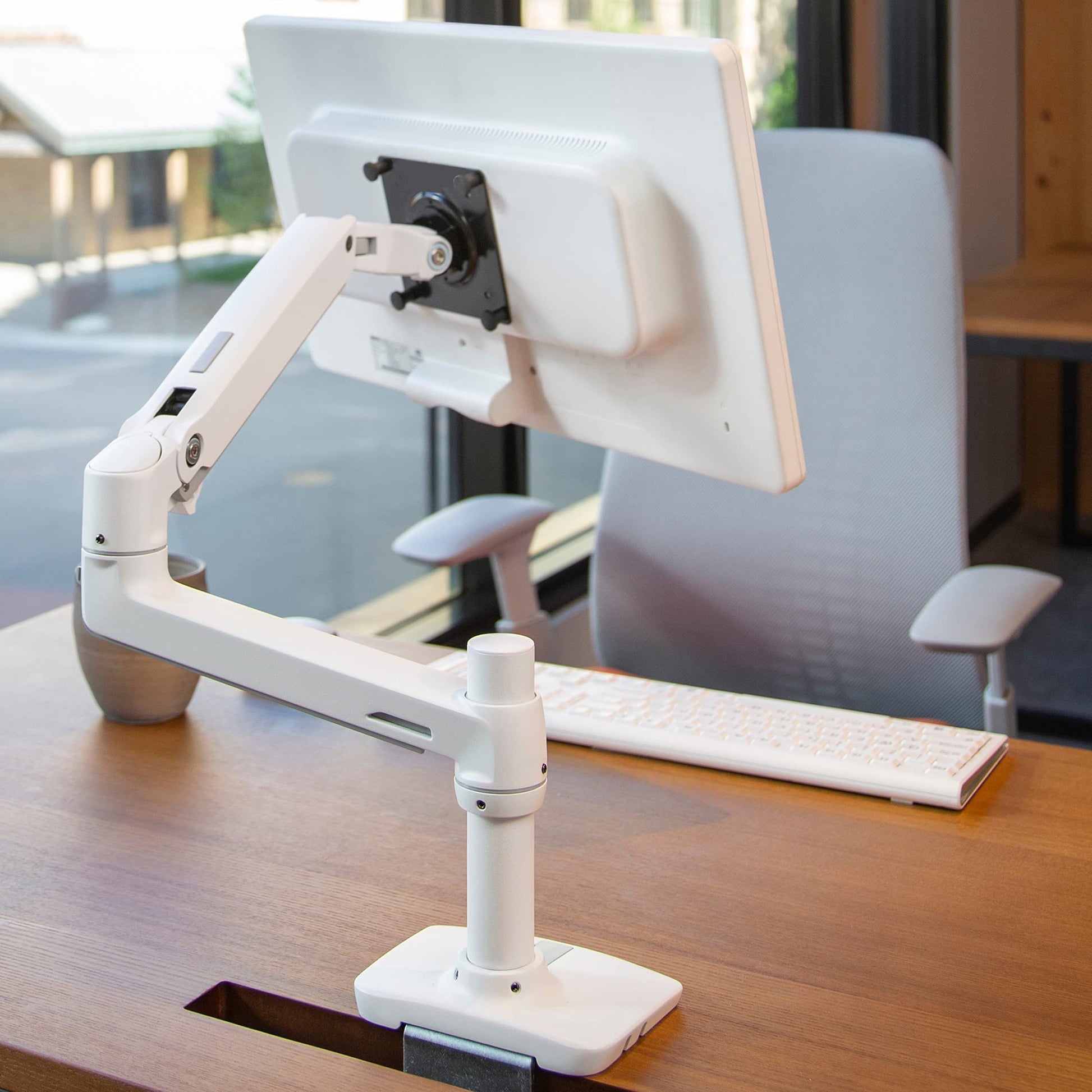

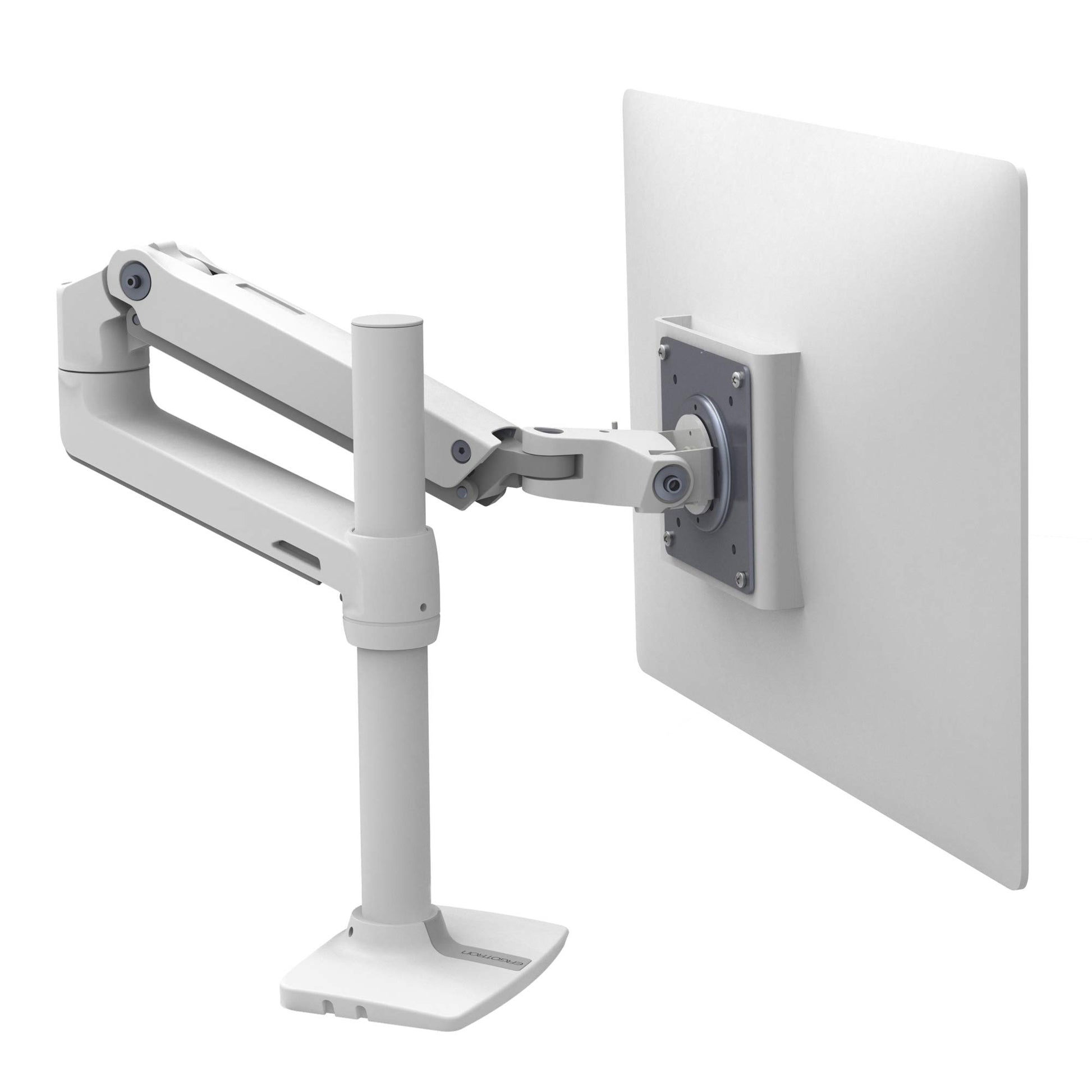

Choose from three colors to complement your existing décor: polished aluminum, white or matte black.
-
A Sound Investment
10,000-cycle tested design—the equivalent of moving the arm three times a day for ten years.
Determine the Best Workstation Solution for You

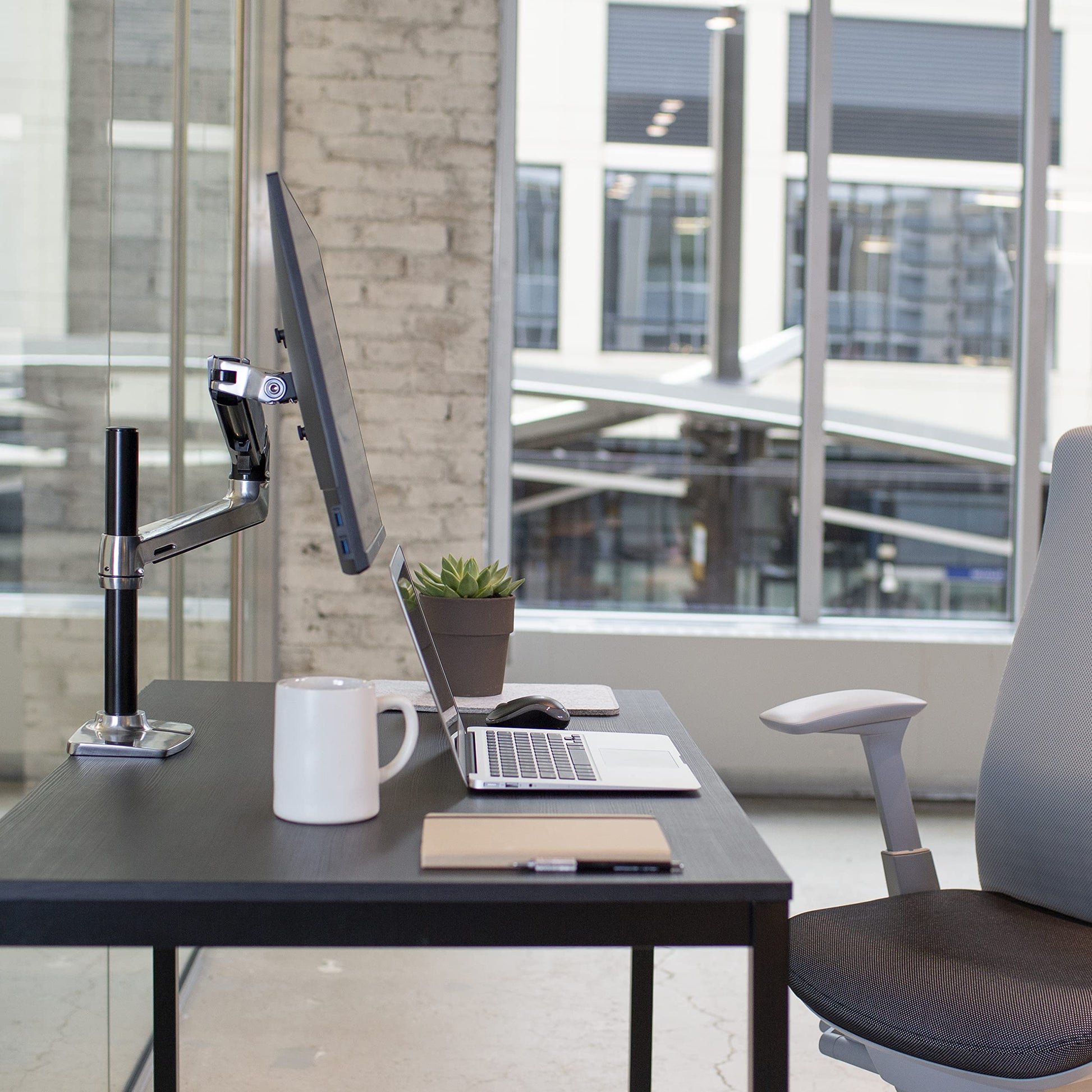

The Standard 8-inch pole (45-490-216) smartly brings a discreet profile while delivering a wide range of monitor motion. Choosing the 13-inch pole (45-537-216) allows for future expansion and enhanced productivity by adding a second monitor via an LX Arm and Extension Kit Accessory (98-130-216).
Accessories Expand Home and Workspace Flexibility
-
LX Extension Accessory

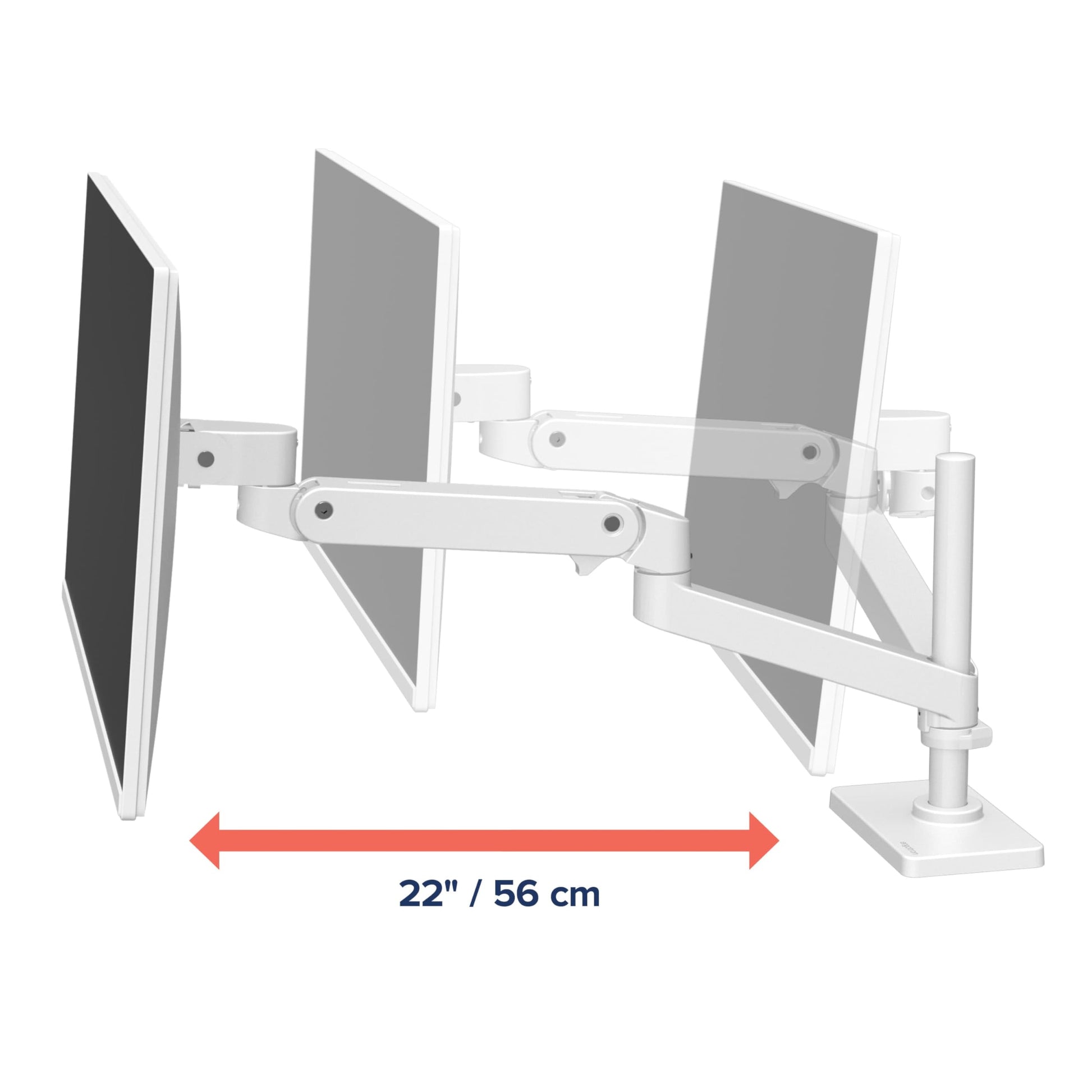

Increase the reach of your LX Desk, Wall or Keyboard Arm by nine inches to fit a broad variety of applications. Available in polished aluminum, white and black.
-
Notebook Tray Accessory
Create a laptop arm by facilitating the positioning of a notebook where it is needed most. Simply connect an external keyboard to get the comfort of a full desktop system.
-
Quick Release Bracket Accessory
Replace a display in seconds. Perfect for fast-paced financial environments and other mission critical operations where every moment matters.

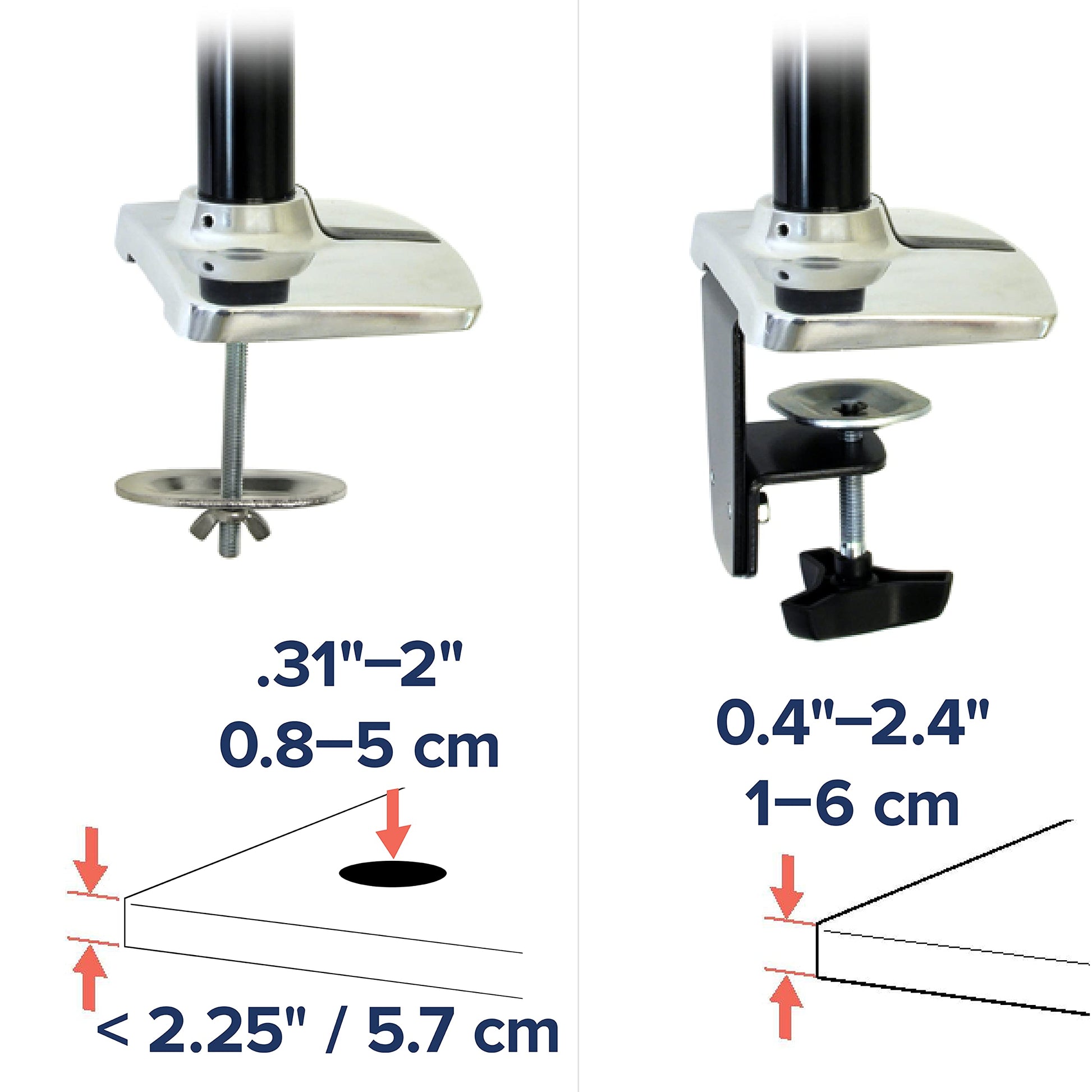

Attachment Options
- Two-Piece Clamp attaches to the back or side of the desk and requires no tools for installation; requires minimal space for installation
- Grommet Mount (98-034) allows arm mounting through a hole in the desk surface for a streamlined workspace (not included with white arm)
Setup Is Simple
- Straightforward assembly; quickly set up and adjust monitor for a custom, comfortable working position
- Clean cable management routes cables under extension and within arm for a neat workspace

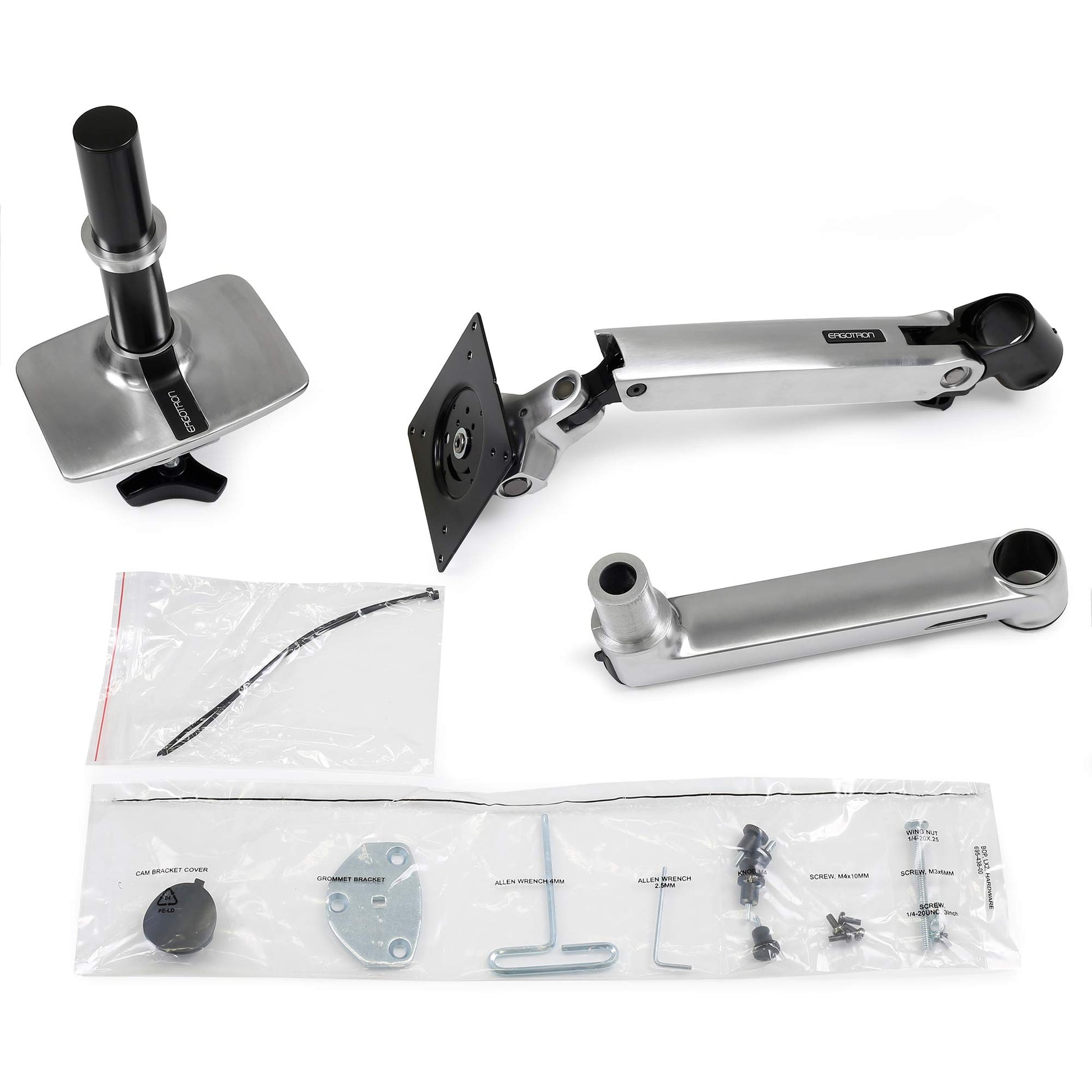

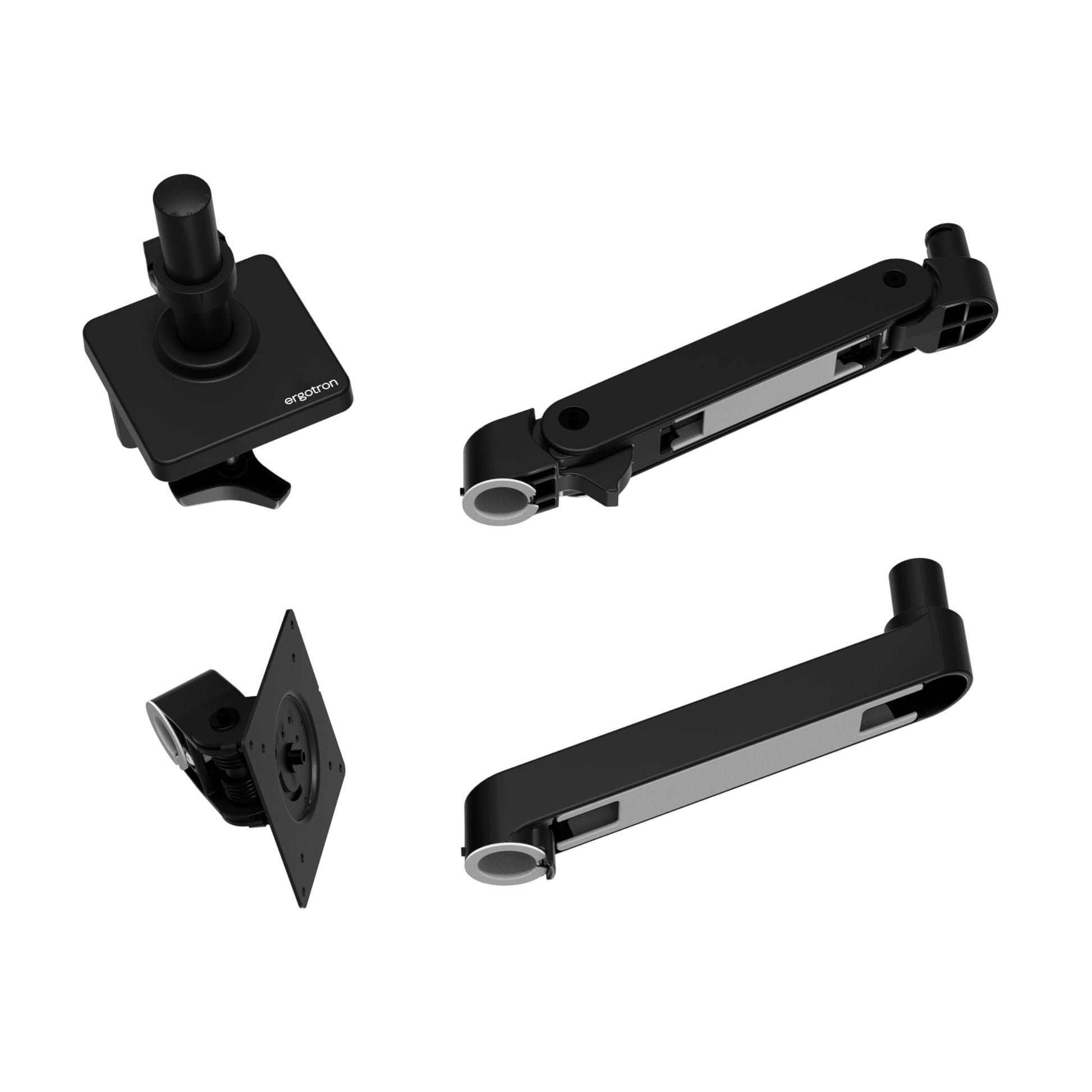

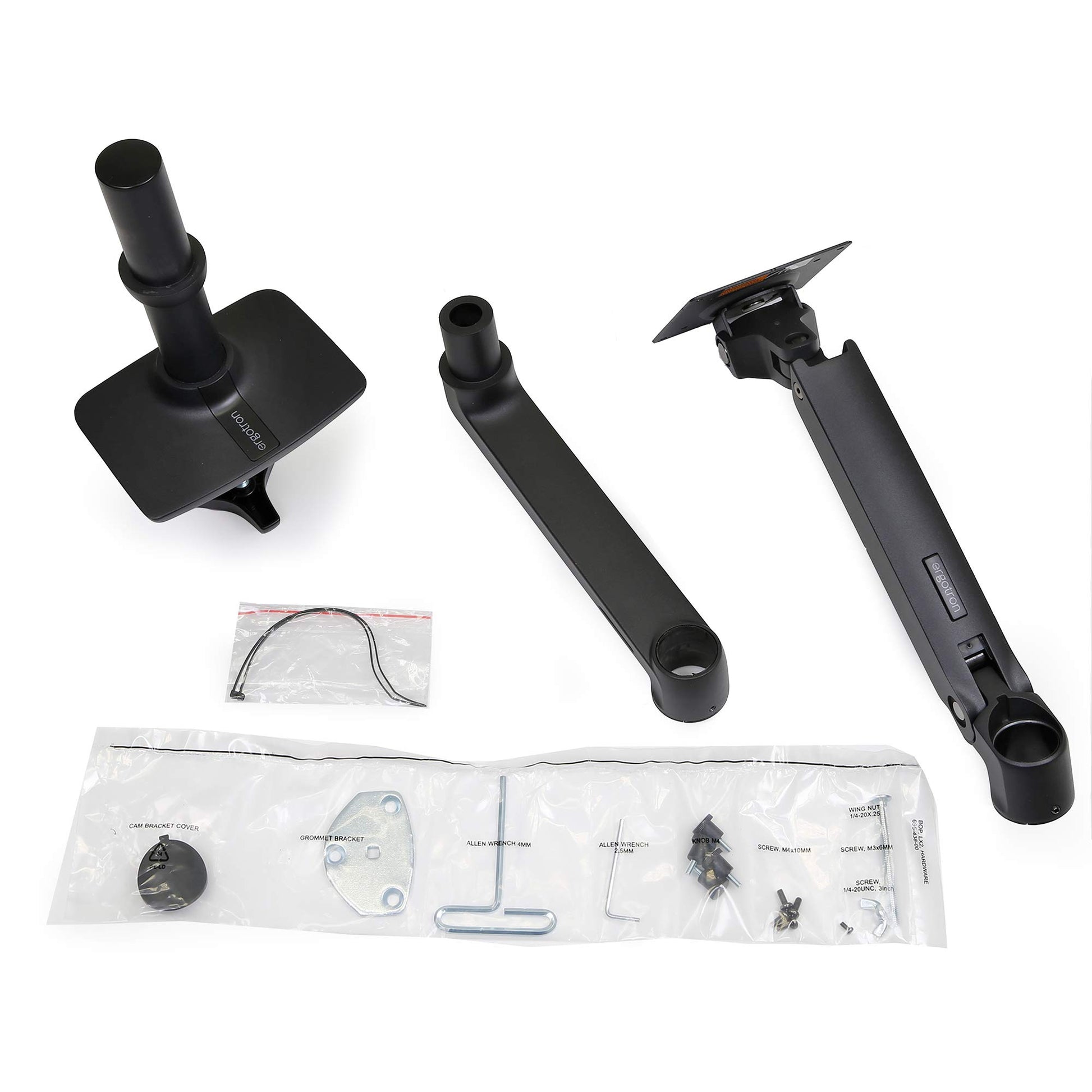

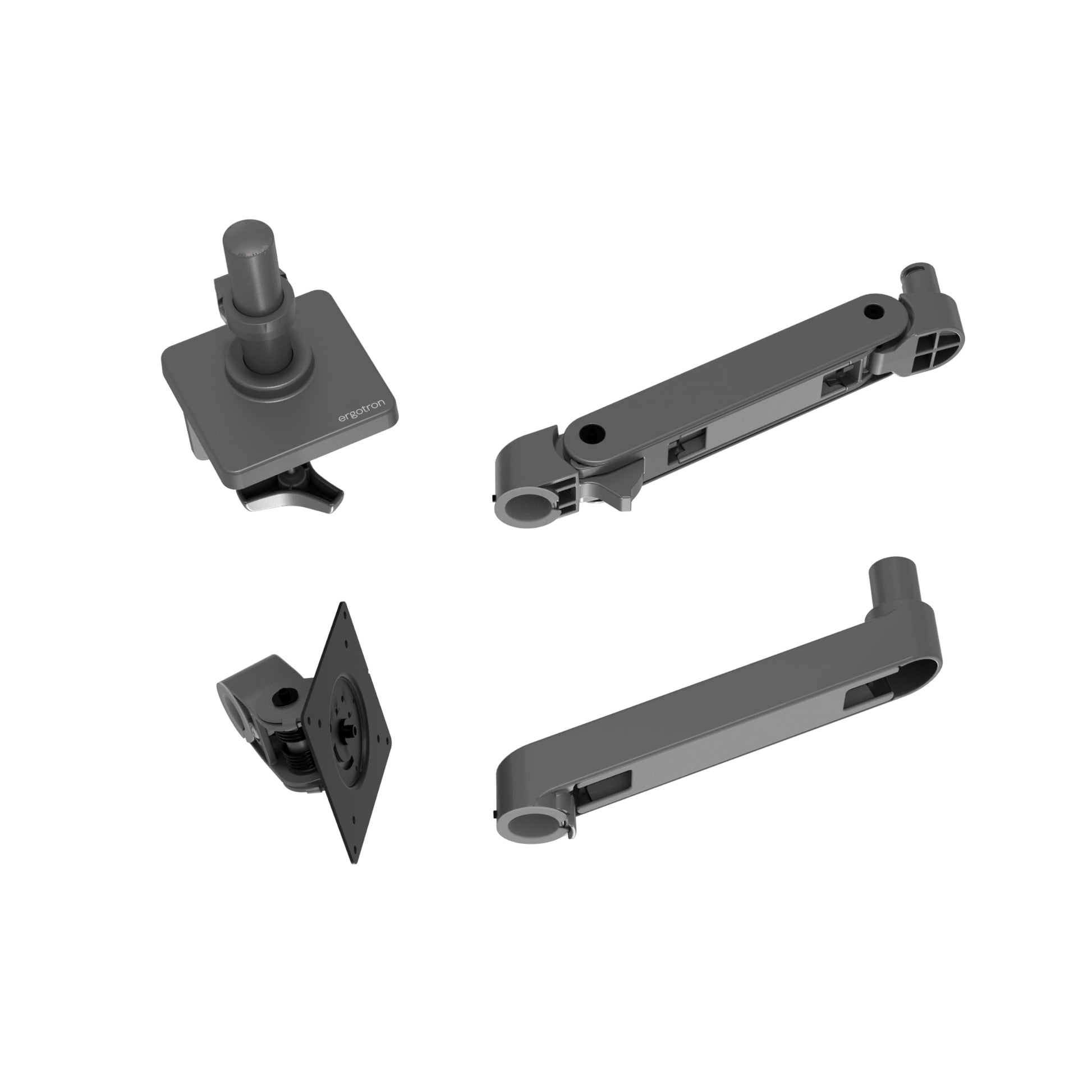

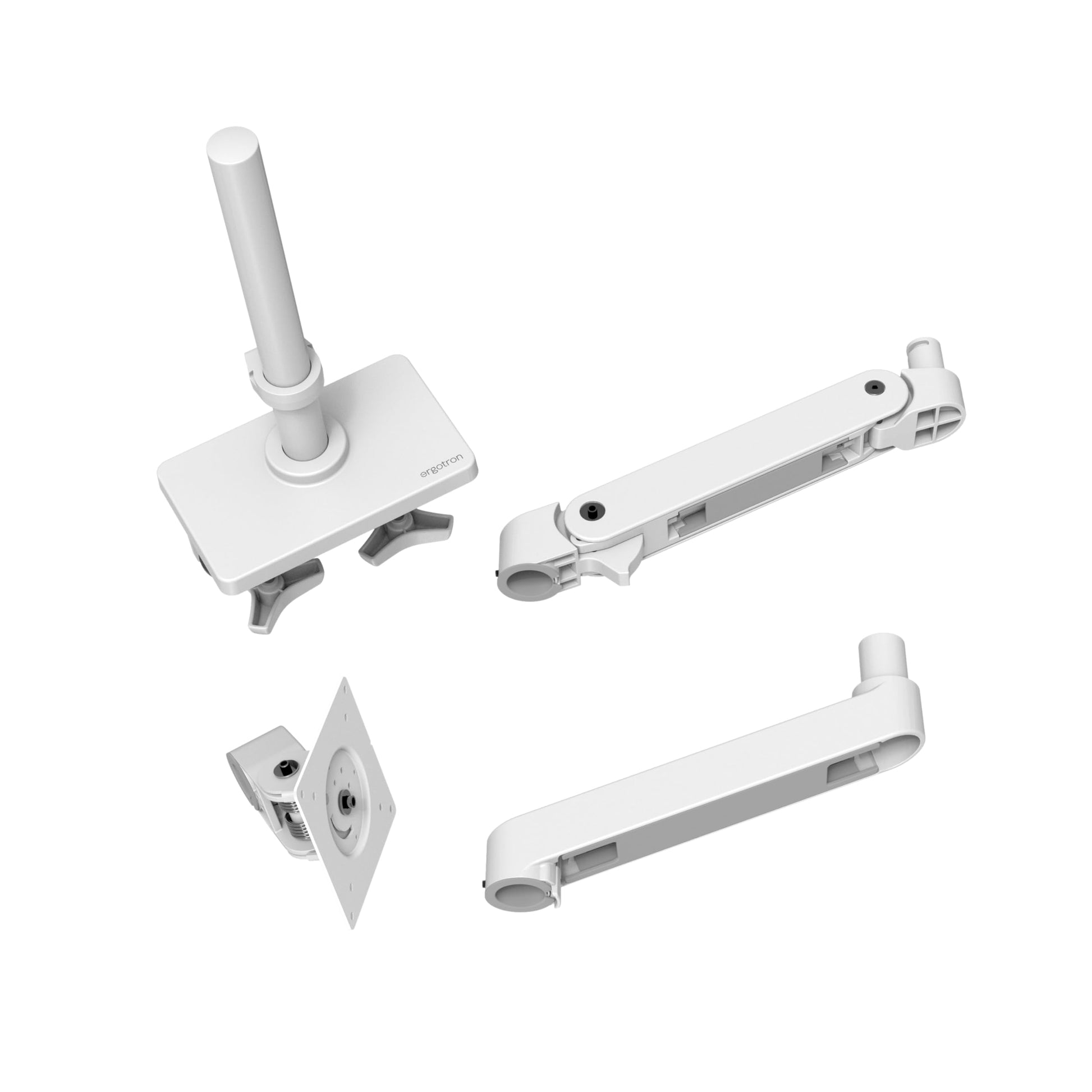

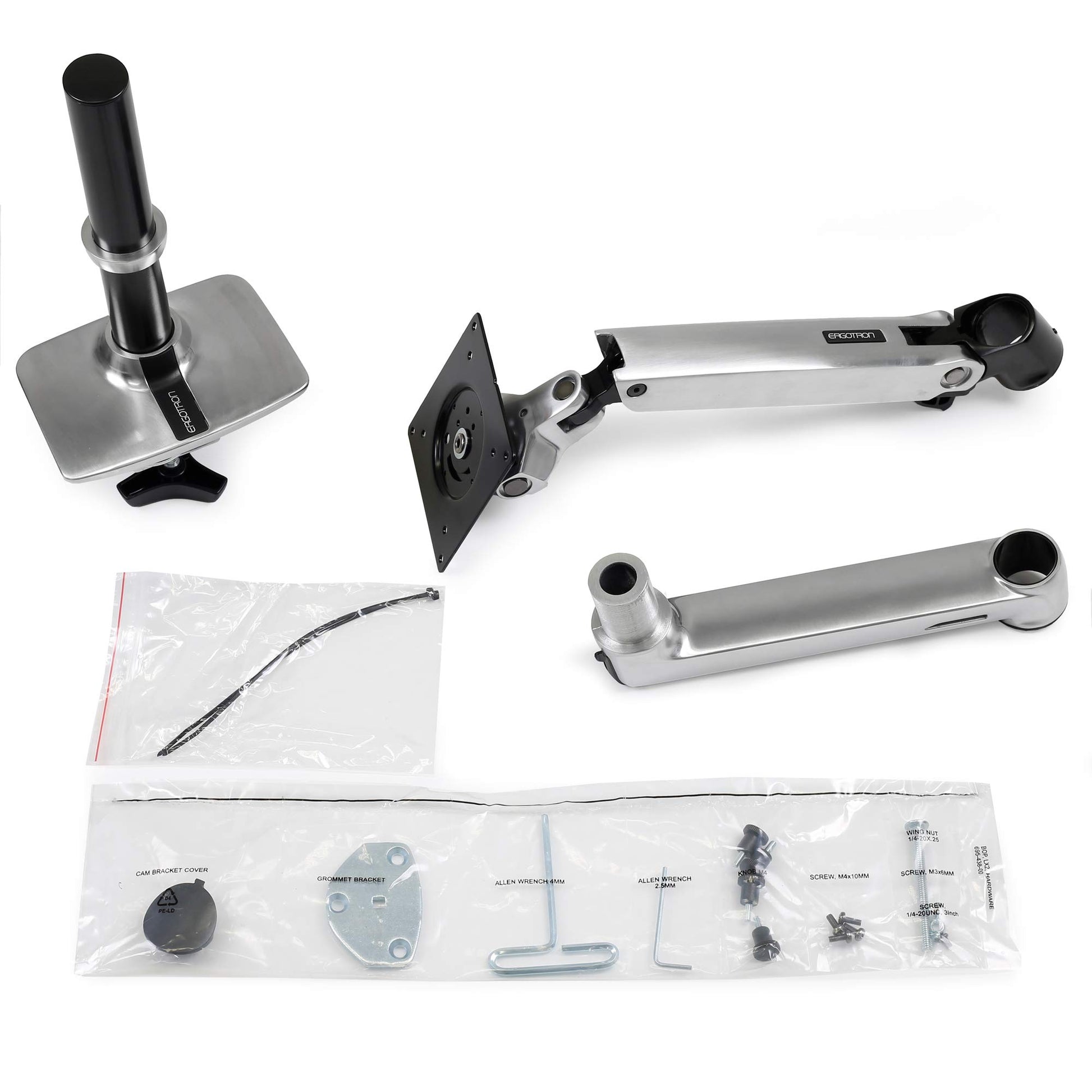

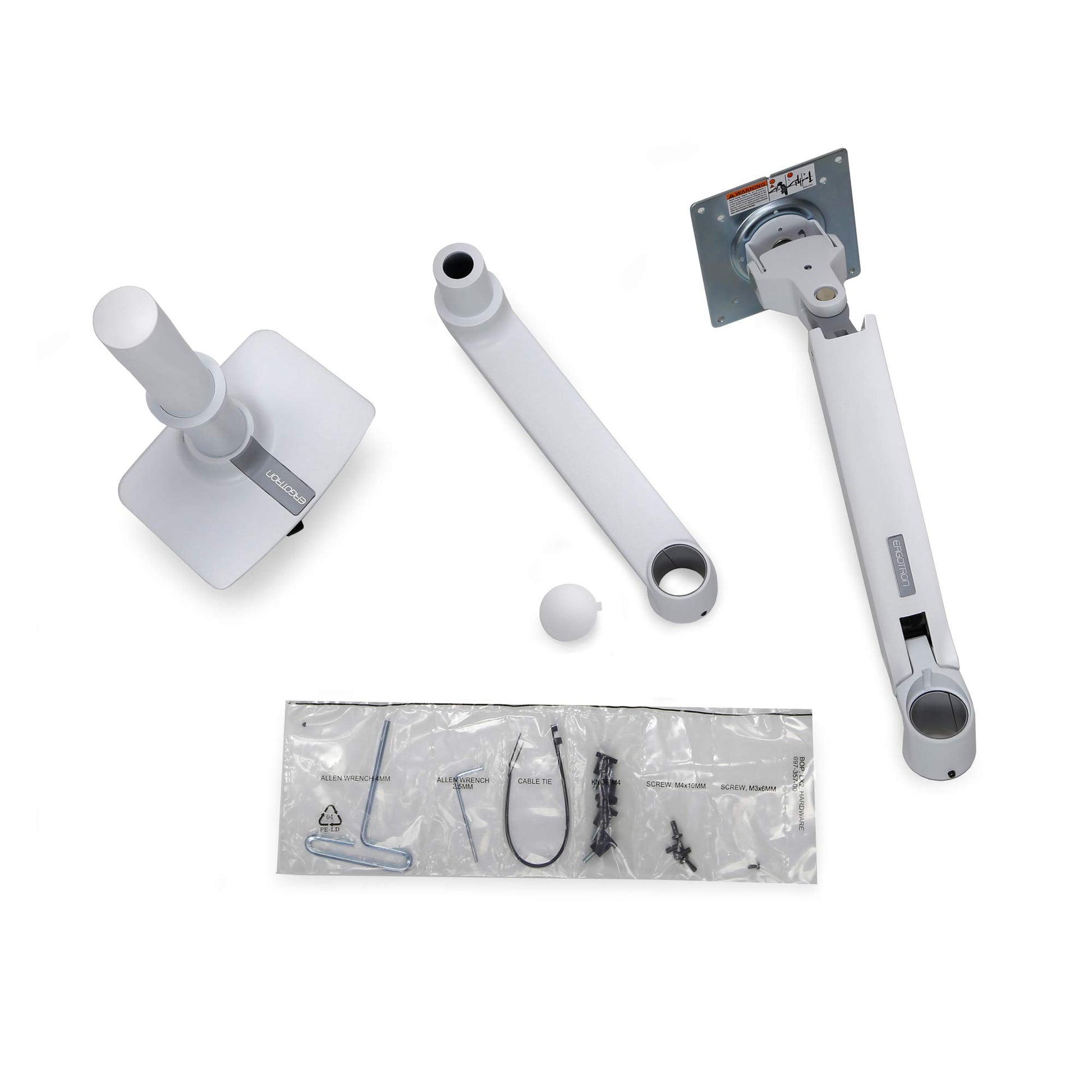

- In the box: arm, extension, base, desk clamp, grommet mount, 8-inch pole, hardware
Compare Ergotron Monitor Arms
LX Desk Arm |

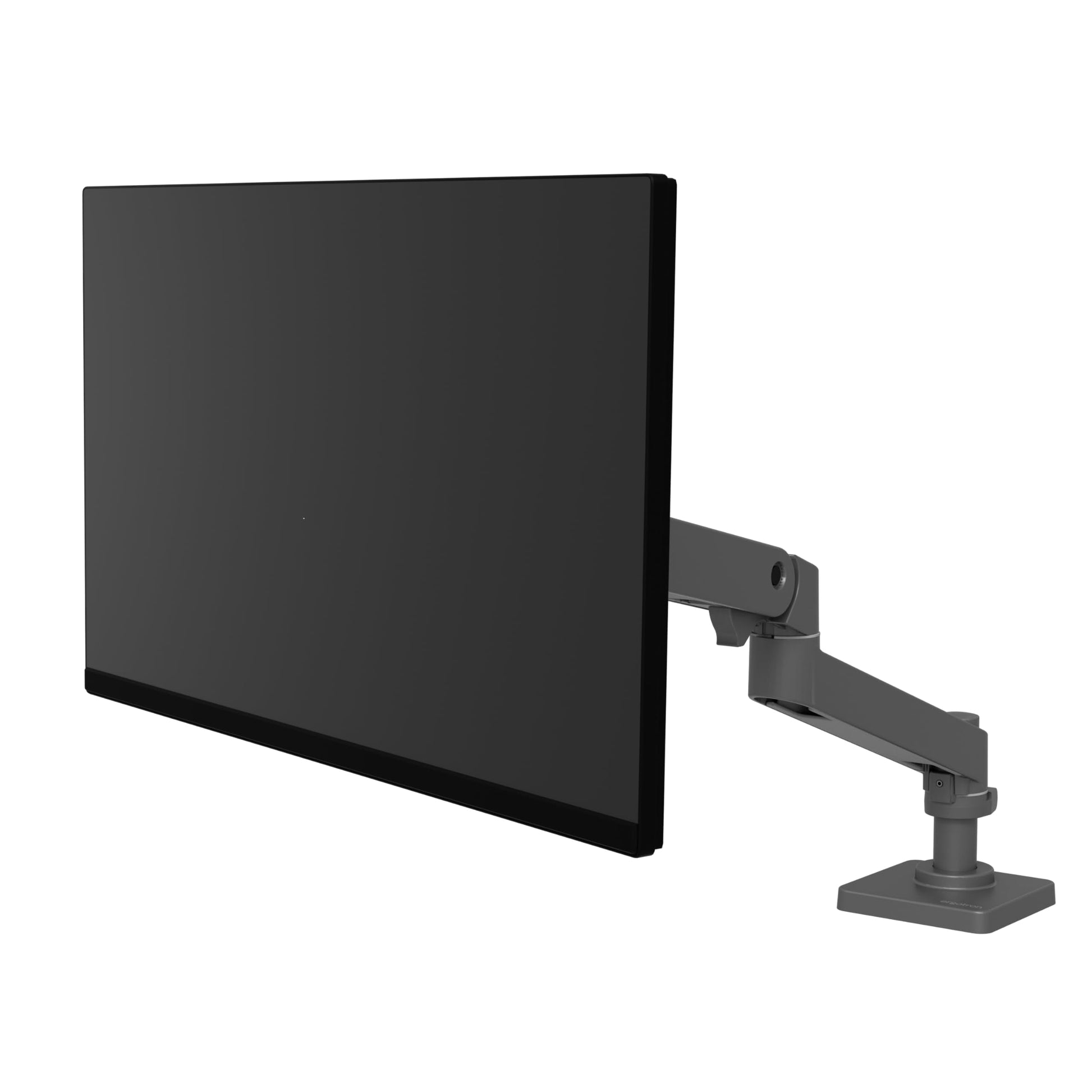

Upgraded LX Pro Desk Arm |
LX Pro Desk Arm Tall Pole |
HX Desk Arm |
Trace Monitor Arm |
MXV Desk Arm |
NX Monitor Arm |
|
|---|---|---|---|---|---|---|---|
|
Customer Reviews
|
10,861
|
191
|
17
|
2,342
|
108
|
811
|
184
|
|
Price
|
$169.00 | $199.00 | $283.00 | $329.00 | $399.09 | $249.99 | $118.00 |
|
Screen Size
|
≤34" | ≤34" | ≤34" | ≤49" | ≤ 38″ | ≤34" | ≤ 34″ |
|
Weight Capacity Range
|
7–25 lbs | 4–22 lbs | 4–22 lbs | 20–42 lbs | 6.5–21.5 lbs | 7–20 lbs | ≤ 17.6 lbs |
|

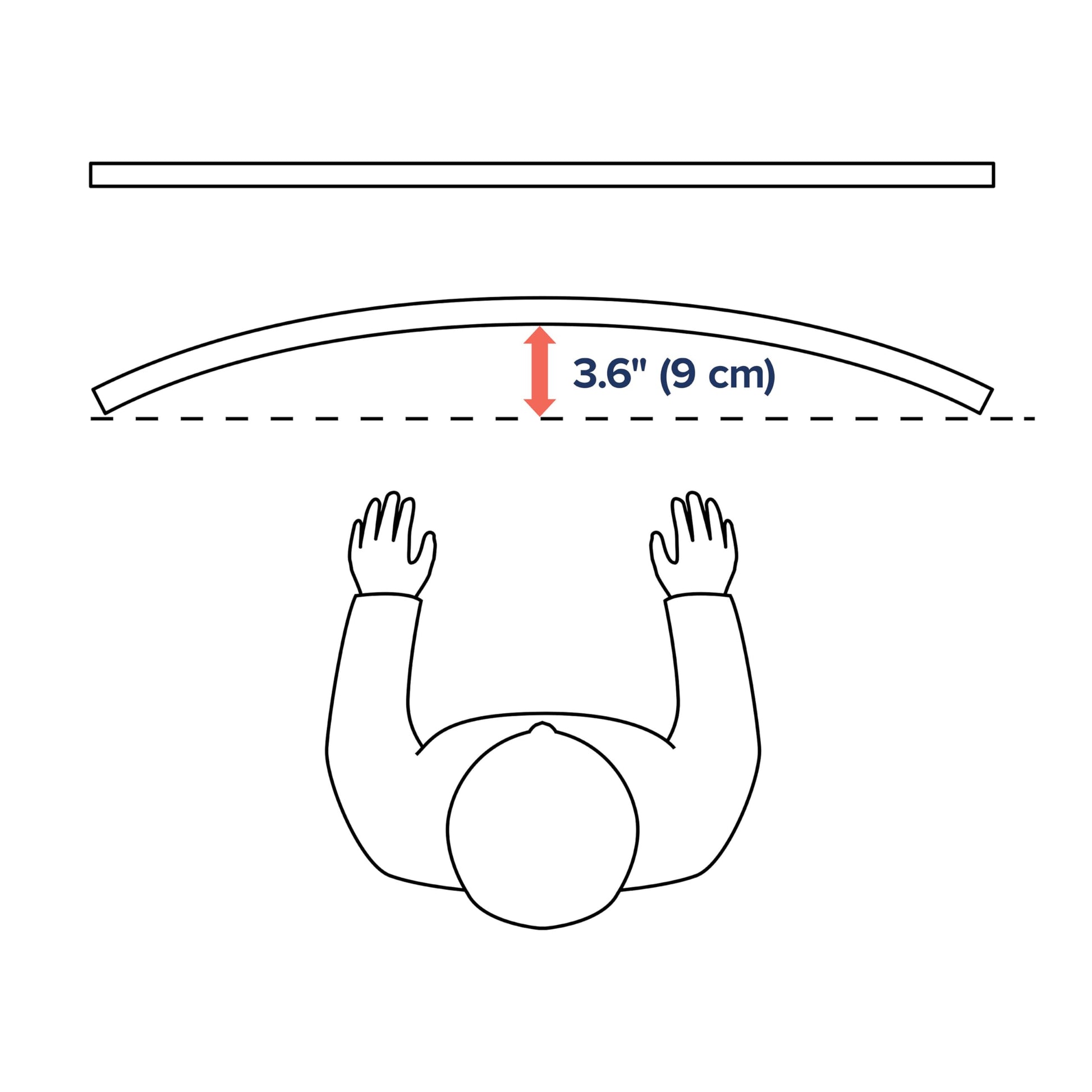

Screen Depth Range
|
≤ 3.6" | ≤ 3.6" | ≤ 3.6" | ≤ 8" | ≤ 3.6" | ≤ 3.5" | ≤ 3.6" |
|
VESA
|
75x75 100x100 | 75x75 100x100 | 75x75 100x100 | 75x75 100x100 200x100 200x200 | 75x75 100x100 | 75x75 100x100 | 75x75 100x100 |
|
Lift
|
13" | 13" | 13" | 11.5" | 11" | 13" | — |
|
Maximum Height
|
17.3" | 18.3" | 25" | 17.8" | 19.6" | 18.5" | 17.6" |
|
Maximum Extension
|

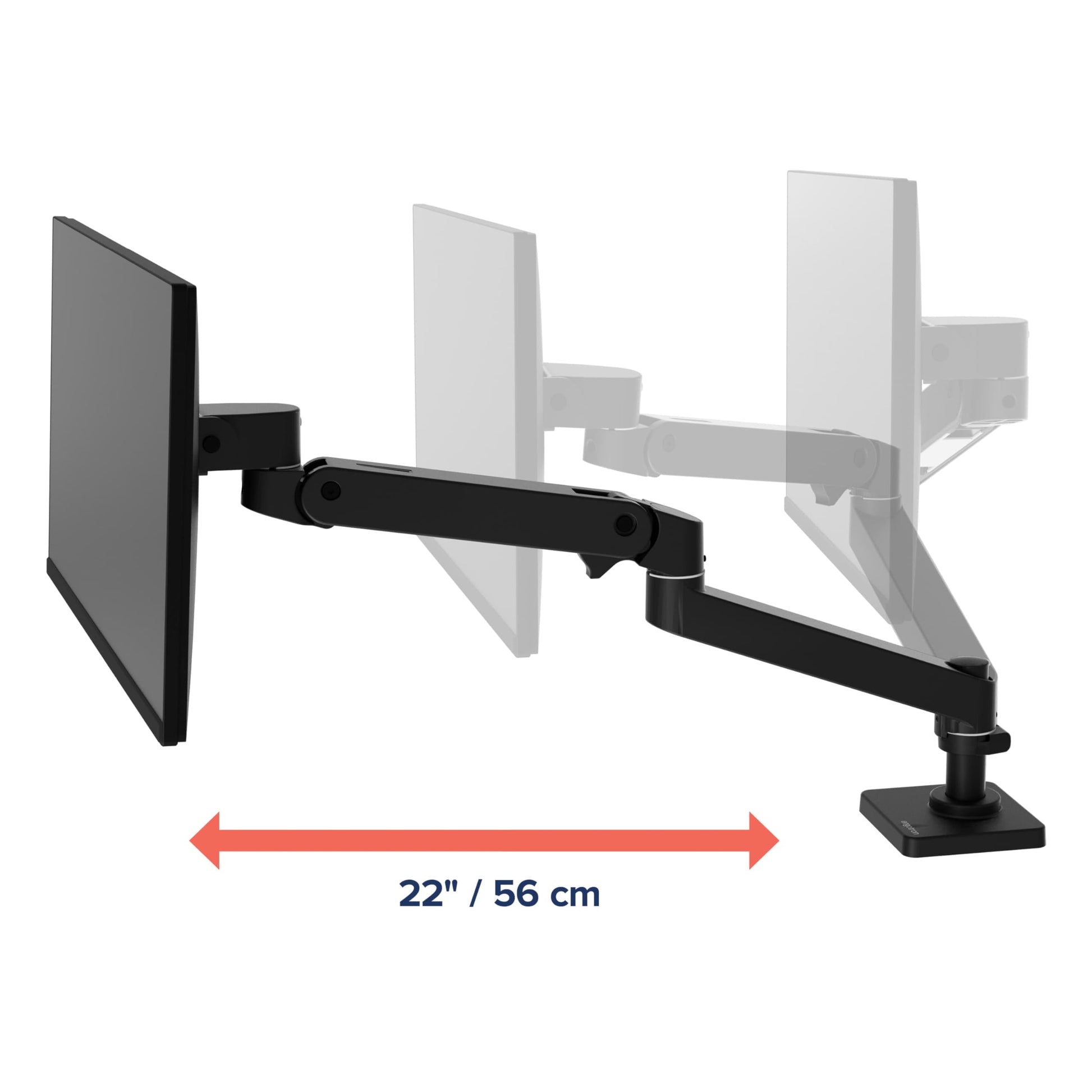

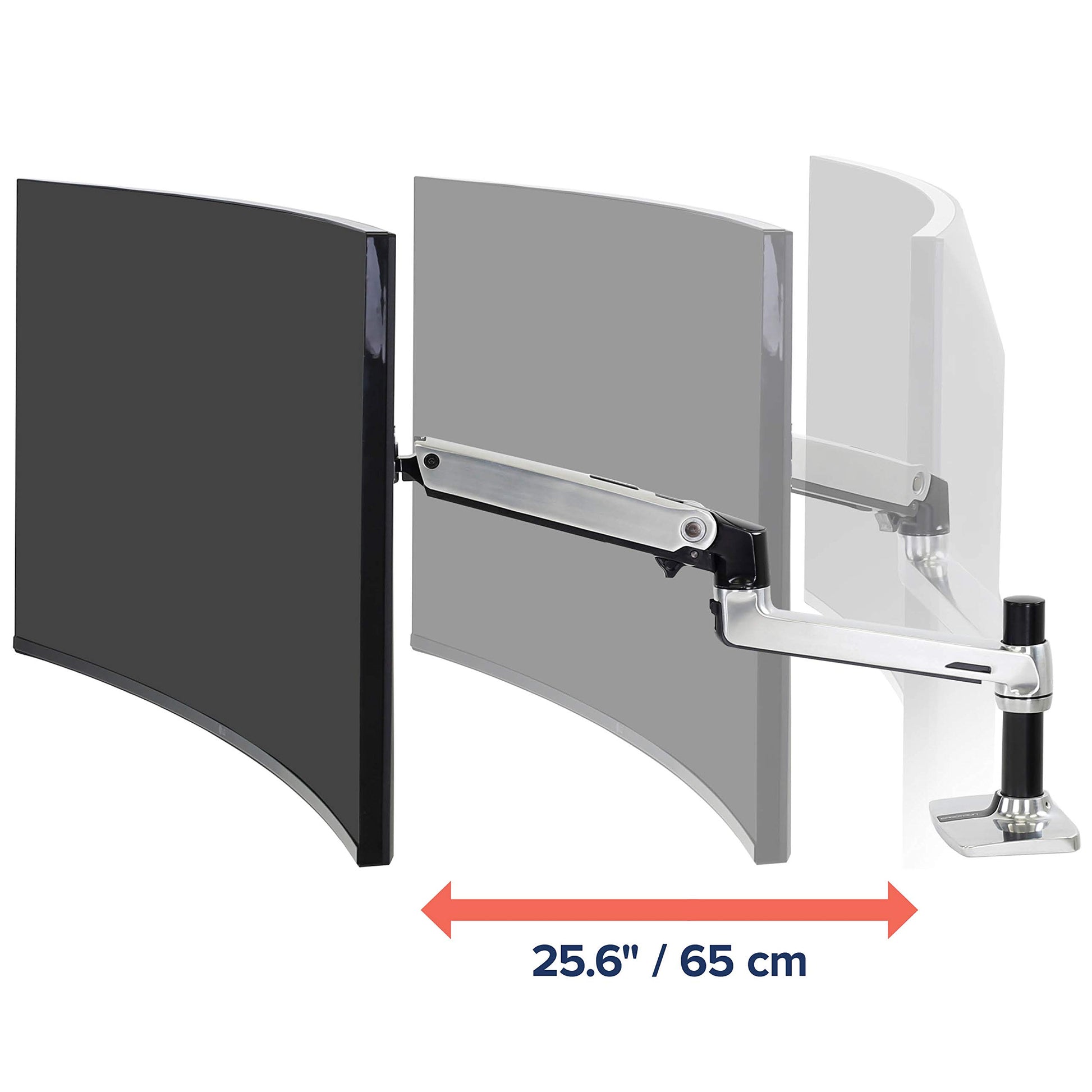

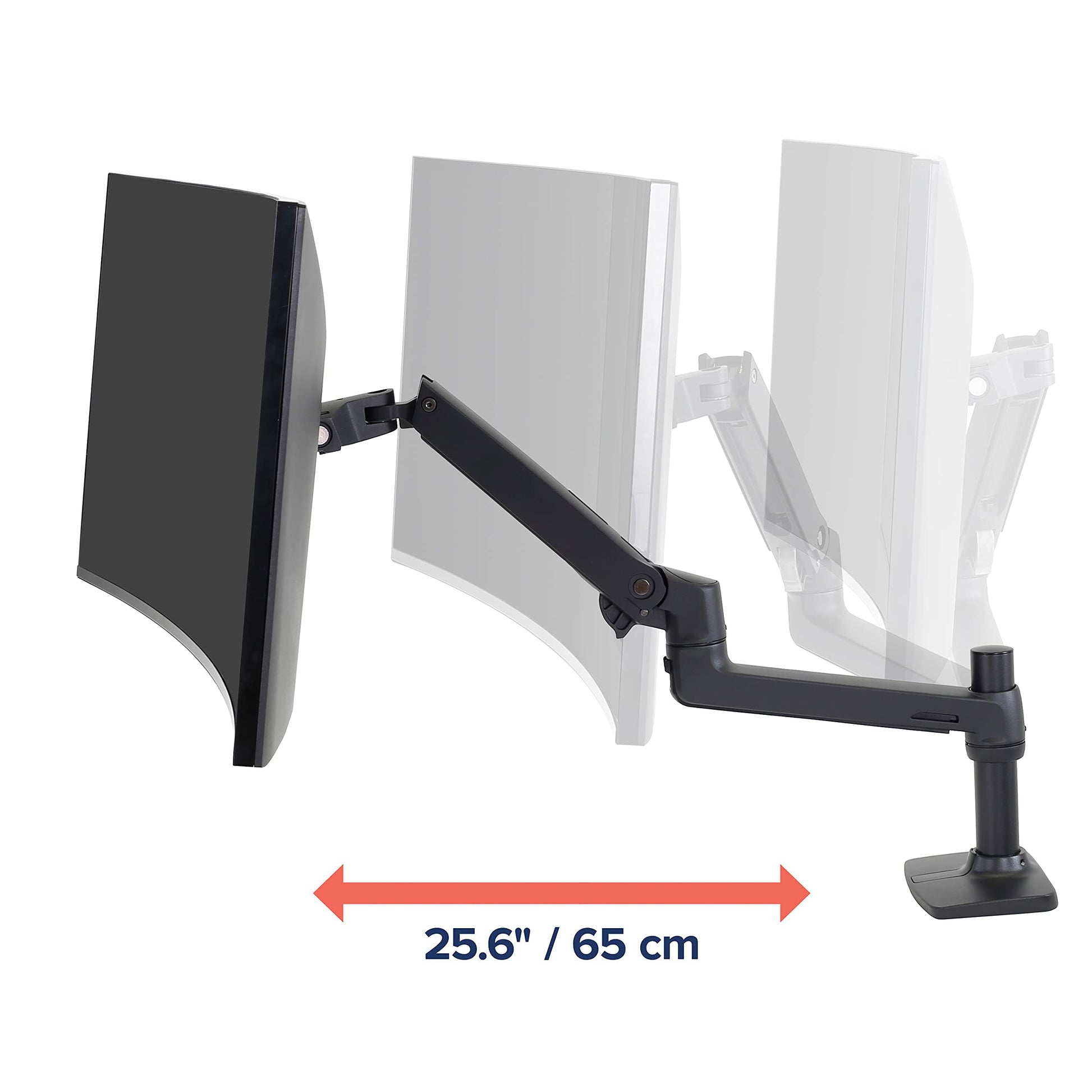

25.6" | 25.8" | 25.8" | 23.6" | 20.1" | 22.2" | 14.5" |
|
Tilt
|
70° up and 5° down | 70° up and 15° down | 70° up and 15° down | 70° up and 5° down | 75° up and 5° down | 90° up, 90° down | 30° up and 5° down |
|
Rotation
|
360° | 360° | 360° | 360° | 360° | 360° | 360° |
|
Integrated Cable Management
|
✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
|
Colors Available
|
Aluminum, White, Black | Dark Grey, White, Black | Dark Grey, White, Black | Aluminum, White, Black | Black, White | Aluminum, White, Black | Black, White |
- Broad compatibility: Fits single screens up to 34 inches diagonal and 7 to 25 pounds; compatible with VESA patterns 75x75mm and 100x100mm

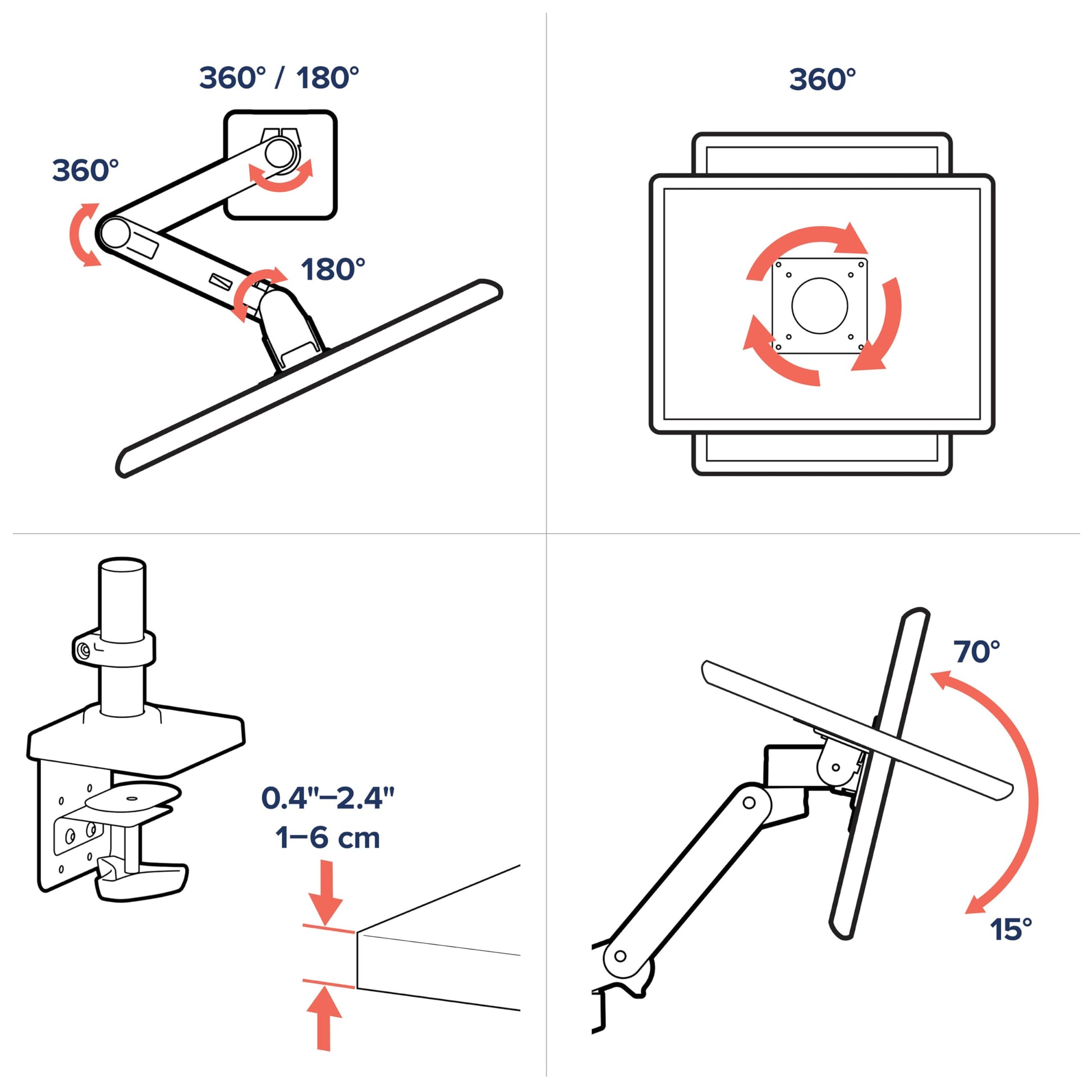

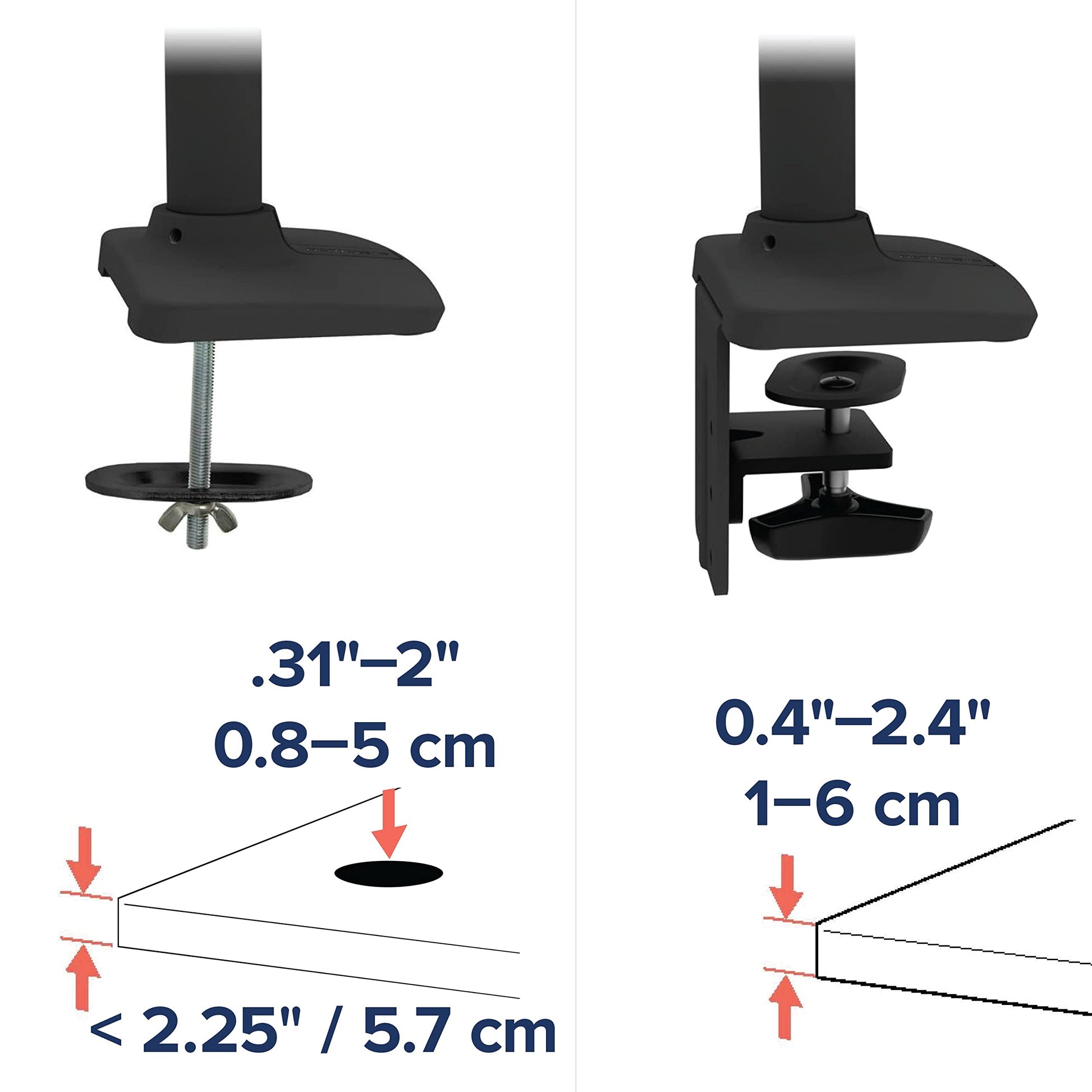

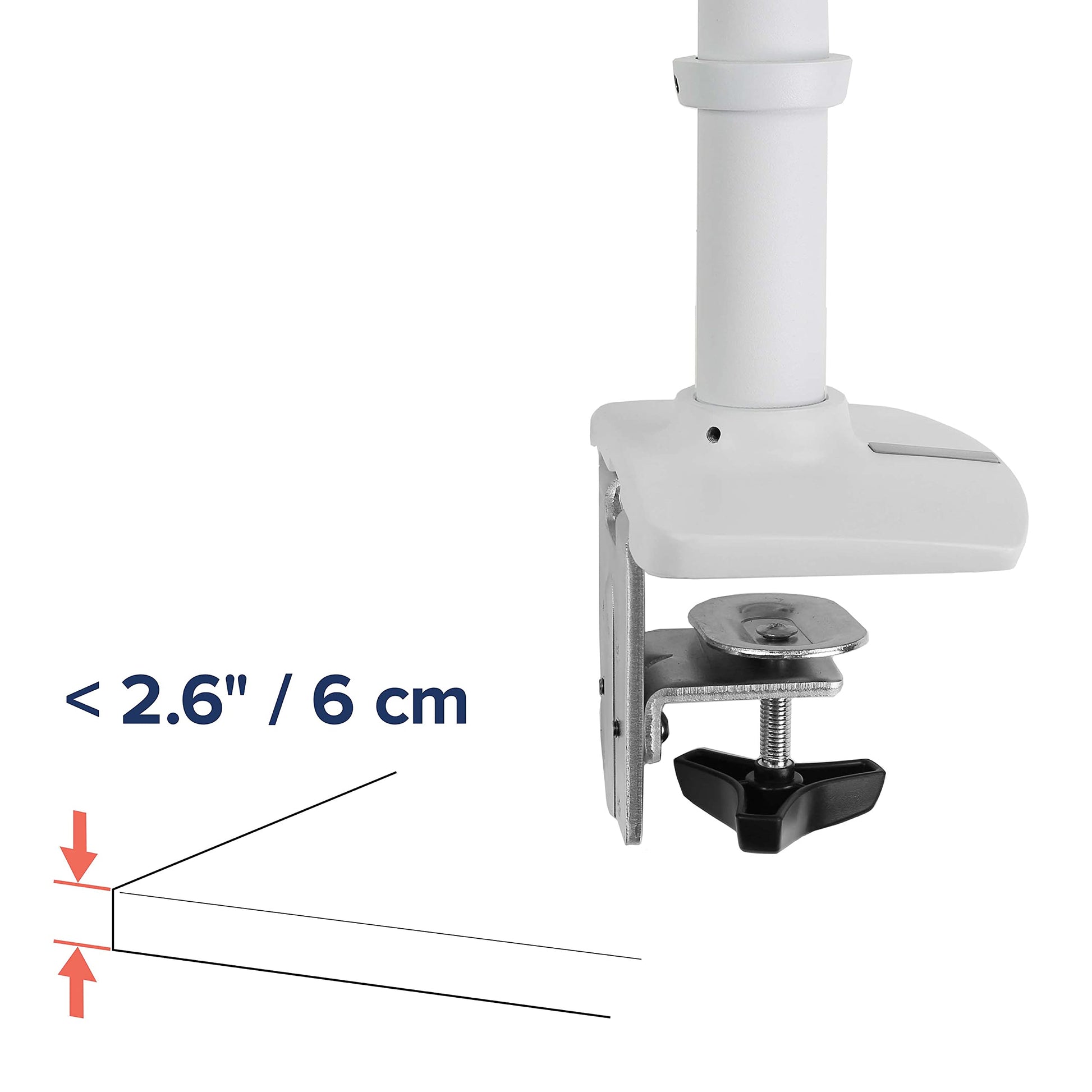

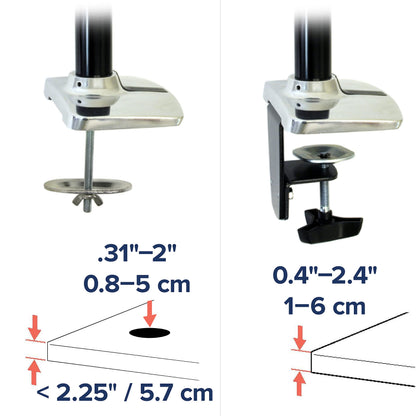

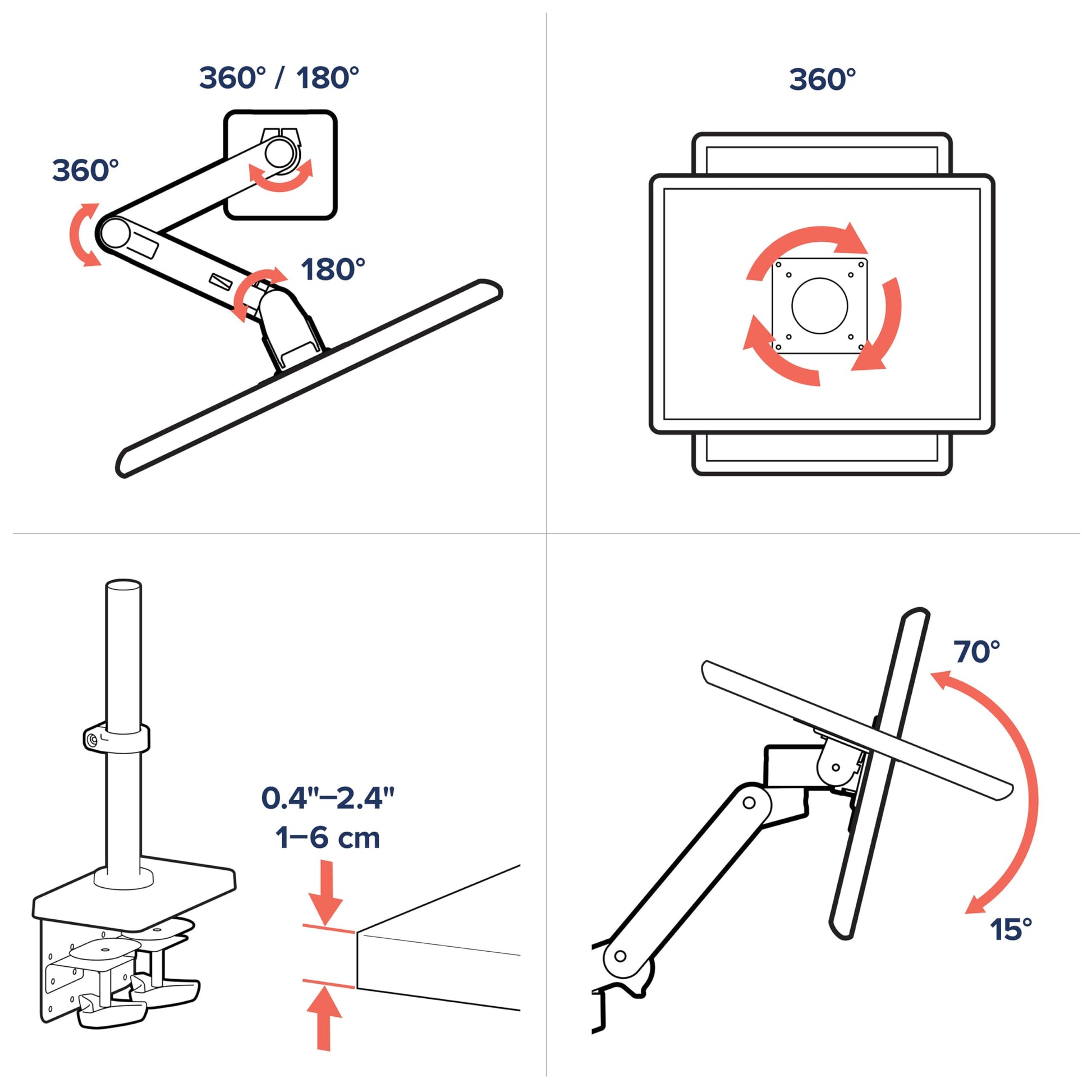

- Versatile mounting options: Includes two-piece desk clamp and grommet mount to fit a variety of desk types; desk clamp attaches to desks 0.4 to 2.4 inches thick; grommet mount attaches through a surface hole to desks up to 2.25 inches thick

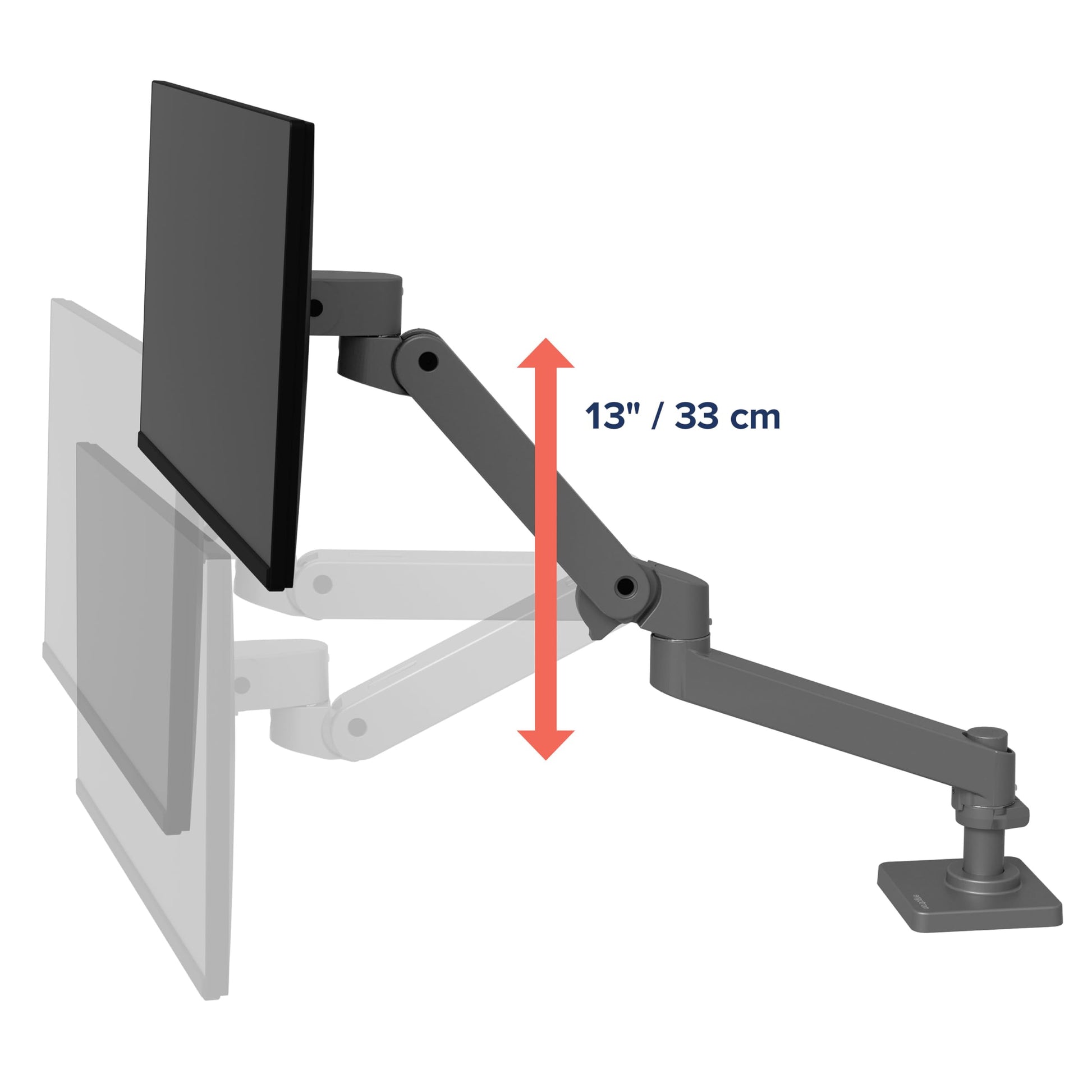

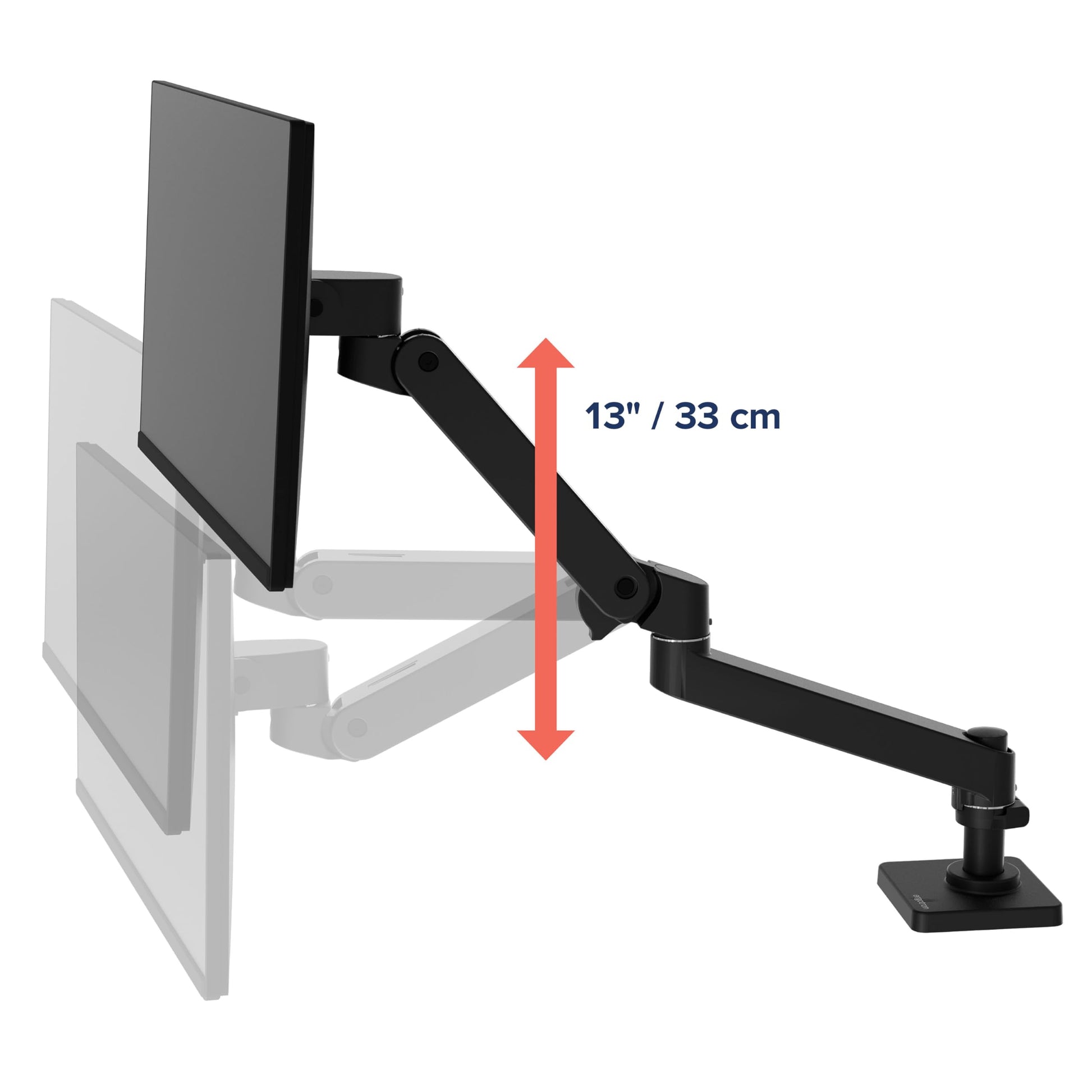

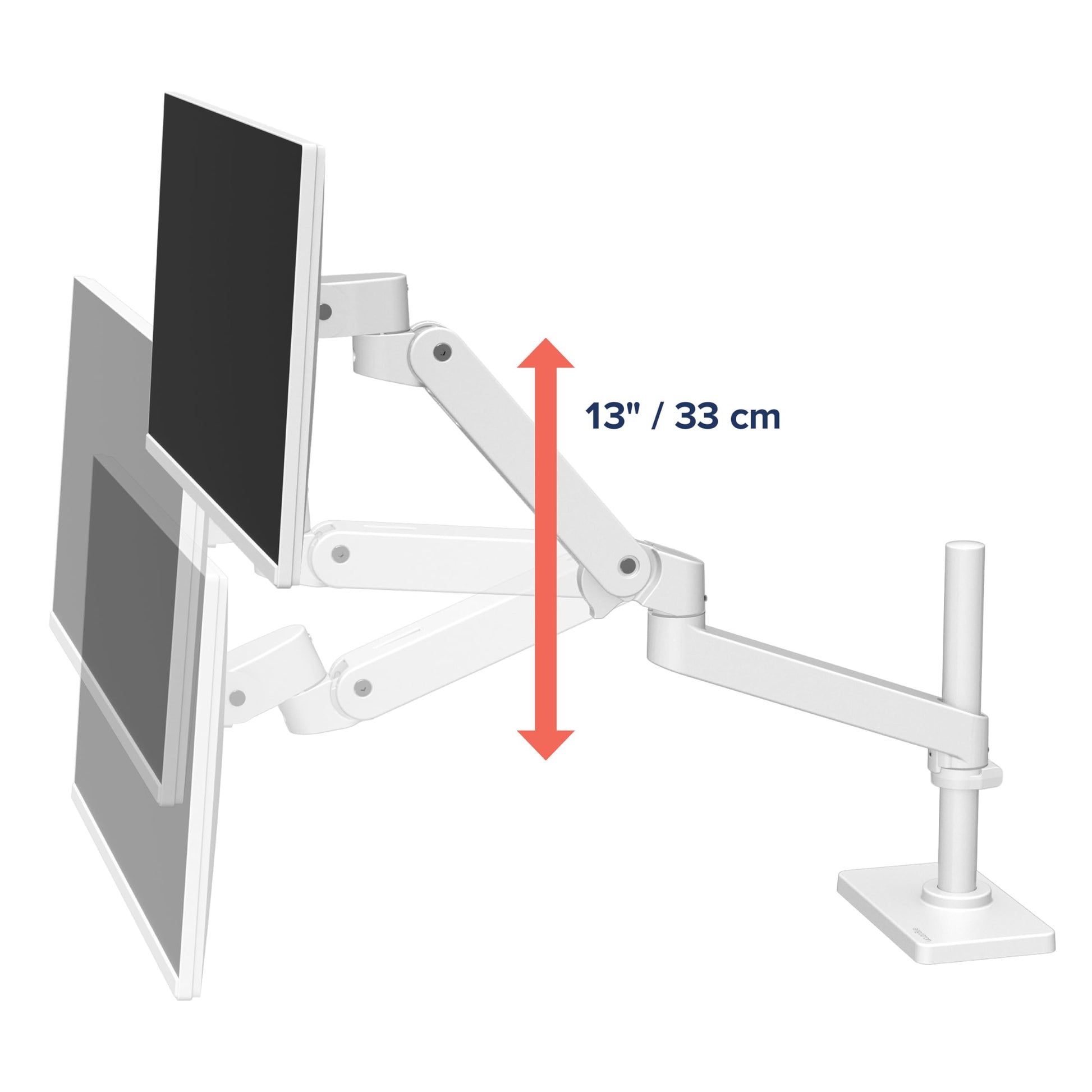

- Improved comfort: Easily raise your monitor up to 17.3 inches above your worksurface with 13 inches of lift; find your best view for each project with 360 degrees of rotation and 75 degrees of tilt
- Sleek and modular design: Designed with aesthetics in mind to enhance your workspace, built-in cable management creates a streamlined look; a suite of compatible accessories lets you customize your work or gaming space
- Built to last: Extensive quality testing ensures your monitor stays stable and secure; Ergotron products set the standard for quality with a 10-year warranty and expert technical support
| Mounting Type | Tabletop Mount |
| Movement Type | Articulating |
| Brand | Ergotron |
| Material | Metal |
| Color | Polished Aluminum |
| Compatible Devices | Monitor |
| Maximum Tilt Angle | 75 Degrees |
| EU Spare Part Availability Duration | 10 Years |
| Global Trade Identification Number | 00698833011463 |
| UPC | 809393878841 807034595843 611101328919 642125317832 641438698584 012306004521 809186278209 778889412947 698833011463 069060227147 806293534136 804066784429 777787377815 168141503016 809099143823 638084621127 808111680940 See more |
