UGREEN SSD Enclosure, Tool-Free USB C External, 10Gbps M.2 NVMe to USB Adapter/Reader Supports M and B&M Keys and Size 2230/2242 /2260/2280 SSDs

Name: UGREEN SSD Enclosure, Tool-Free USB C External, 10Gbps M.2 NVMe to USB Adapter/Reader Supports M and B&M Keys and Size 2230/2242 /2260/2280 SSDs
Brand: CSGM Shop
Price: 34.49 USD
Availability: InStock

$34.49 USD

~~$34.49 USD~~ $34.49 USD

Sale Sold out

UGREEN Tool-Free 10Gbps M.2 NVMe SSD Enclosure

Ugreen Tool Free 10gbps M.2 Nvme Ssd Enclosure

Merchant Video

Before connecting the use of the product shell can be opened to see if the metal contacts of the hard disk part of the full access to the slot, if not the same hard disk, it should be noted that the product only supports NVME single protocol, SATA protocol hard disk can not be recognized for use

Fast Transfer of 10Gbps: With the latest USB 3.2 Gen2, this M.2 enclosure can achieve a data transfer rate of 10Gbps

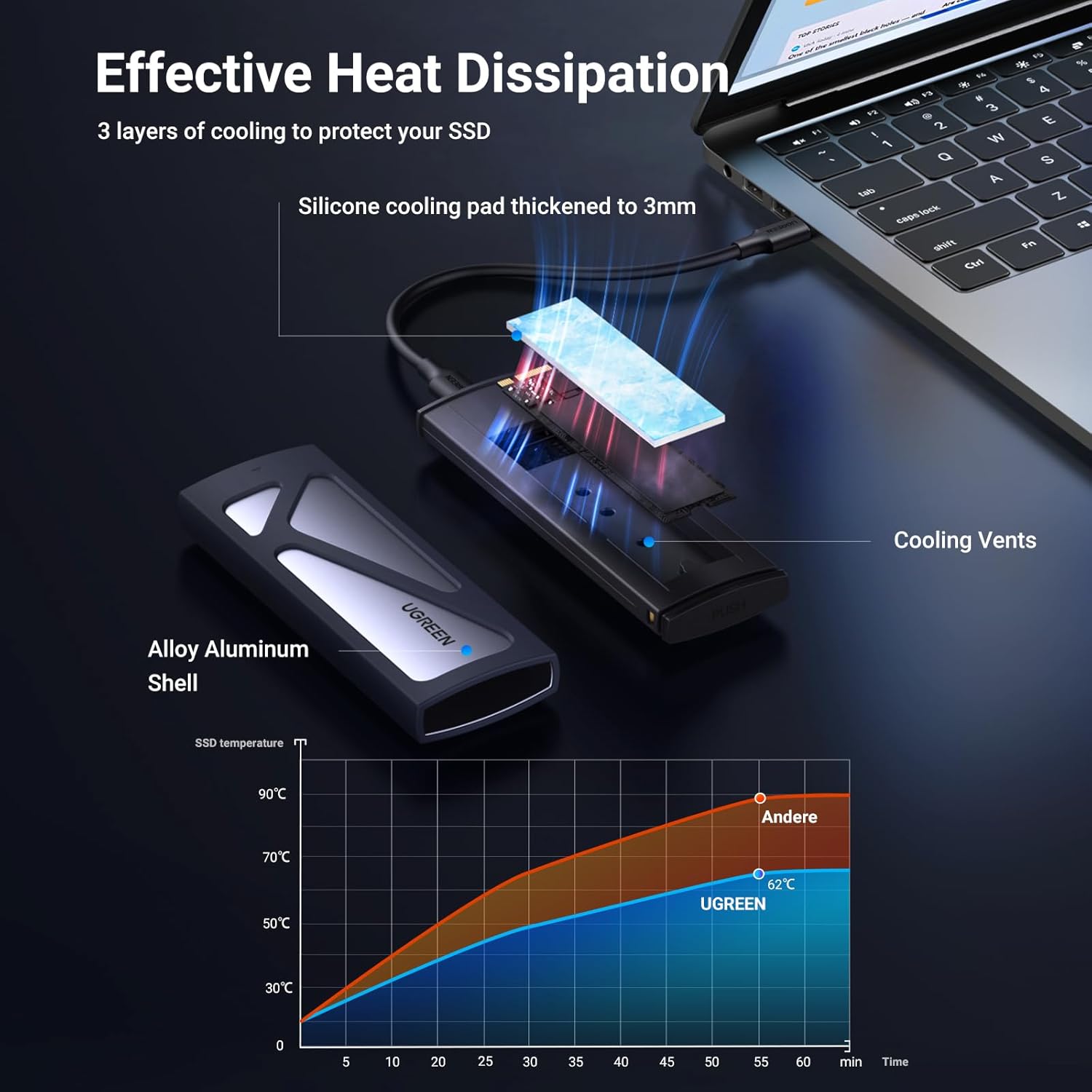

Effective Heat Dissipation:Aluminum shell with silicone thermal pad to effectively dissipate heat and protect your SSD. Note:

Designed for NVMe SSD:Expand your external storage

Supports all M/M&B Key NVMe SSDs up to 8TB in 2280/2260/2242/2230 (partial list)

Compatible with Samsung	990 PRO/980/980 PRO/970 EVO Plus/970 EVO/970 Pro/960 Pro/960 EVO/860 EVO Series
Compatible with Crucial	P2/P3/P3 Plus/P5/P5 Plus Series
Compatible with W_D Black	SN 850X/SN 850/SN 770/SN 750/SN 570/SN 550/SN 530/SN 520
Compatible with Silicon Power	UD90/UD85/UD80/UD70/US75/US70/P34A60/P34A80/P32A80/XD85/XD80
Compatible with TEAMGROUP	A440 Pro/Z440/Z44L/Z340/Z330/MP33/MP34
Compatible with Corsair	MP700 Series/MP600 Series/MP510
Compatible with SABRENT	Rocket 4/Rocket Q4/Rocket Q/Rocket

Compatible with PNY	CS2241/CS2230/CS2240/CS2140/CS3140/CS1030/LX3030/LX2030/
Compatible with XPG	GAMMIX S70/SX8200/GAMMIX S11
Compatible with Kingston	SNVS/A2000/KC2000/KC2500/KC3000/SA400M8
Compatible with sk hynix	Platinum P41/Gold P31
Compatible with Lexar	NM800 PRO/NM790/NM710/NM620
Compatible with Seagate	FireCuda 540/FireCuda 530/FireCuda 520/FireCuda 510/BarraCuda 510/BarraCuda 515
Compatible with Intel	600P/660P/665P/760P/545S/Optane 800P/Optane H10

UGREEN 10 Gbps M.2 External SSD Enclosure USB C Series

	10Gbps M.2 Enclosure Buying Options	1TB PSSD	80Gbps M.2 Enclosure Buying Options	SATA Dual-Bay Enclosure Buying Options	20Gbps Dual-Bay Enclosure Buying Options	40Gbps Dual-Bay Enclosure Buying Options	40Gbps M.2 Enclosure Buying Options
Customer Reviews	15,680	56	294	80	30	14	181
Price	$17.99	$499.99	$179.99	$31.99	$59.99	$119.99	$119.99
Compatible SSDs	NVMe SSDs	/	NVMe SSDs	SATA	NVMe SSDs	NVMe SSDs	NVMe SSDs
Transfer Speed	10 Gbps	40 Gbps	80 Gbps	5Gbps	40 Gbps	40 Gbps	40 Gbps
USB Interface	USB C 3.2 Gen 2	USB4 Version1.0	USB4 Version2.0	USB 3.0	USB4 Version1.0	USB4 Version1.0	USB4 Version1.0
Supports SSD uo tp	8TB	1TB	8TB	48TB	16TB	32TB	8TB
Chipset	RTL9210	PS2251－21	JHL9480	JMS561U	JMS586U	ASM2464PDX	JHL7440+RTL9210
Supports SSD Sizes	2230/2242/2260/2280	/	2280	2.5'/3.5'	2230/2242/2260/2280	2230/2242/2260/2280	2280
Material	Aluminum	Excimer coating	Aluminum	Plastic	Aluminum	Aluminum	Aluminum
Cable Included	C to C + C to A	C to C	C to C	USB-B to C	C to C	C to C	C to C
Silicone Case	✔	✔	✔	✘	✘	✘	✔
Plug&Play	✔	✔	✔	✔	✔	✔	✔
fan	✘	✘	✔	✘	✔	✔	✔
CLONE	✔	✘	✔	✔	✔	✔	✔

The solution to the problem that the device cannot recognize the SSD

Confirm whether the connection between the data cable and the product and equipment is in good contact, and whether the SSD is installed correctly.
The new SSD needs to be partitioned and formatted for the first use, otherwise the device cannot recognize the SSD.
Confirm whether the system supports large-capacity hard drives, WinXP 32-bit systems do not support hard drives above 2TB.
Confirm whether the hard disk format is consistent with the SSD format supported by the system. If not, please format the SSD into a hard disk format supported by the system.

Notice For UGREEN NVMe M.2 SSD Enclosure USB C 10Gbps Portable Aluminum SSD Case

This M.2 NVMe SSD enclosure does not support M.2 SATA NGFF SSDs or SSDs with heatsink,only supports NVMe SSD with thickness less than 3.5mm.
To perfectly reflect product performance (up to 10Gbps), please connect this M.2 SSD enclosure to a device with a USB 3.2 gen 2 standard interface.
When you need to take out the SSD, please perform a safe removal operation on the device before disconnecting it from the device. Do not remove the NVMe M.2 enclosure and SSD forcibly to avoid data loss and hard drive damage.
When this SSD enclosure M.2 NVMe is copying data, do not forcibly disconnect the device to avoid file loss and hard drive damage.

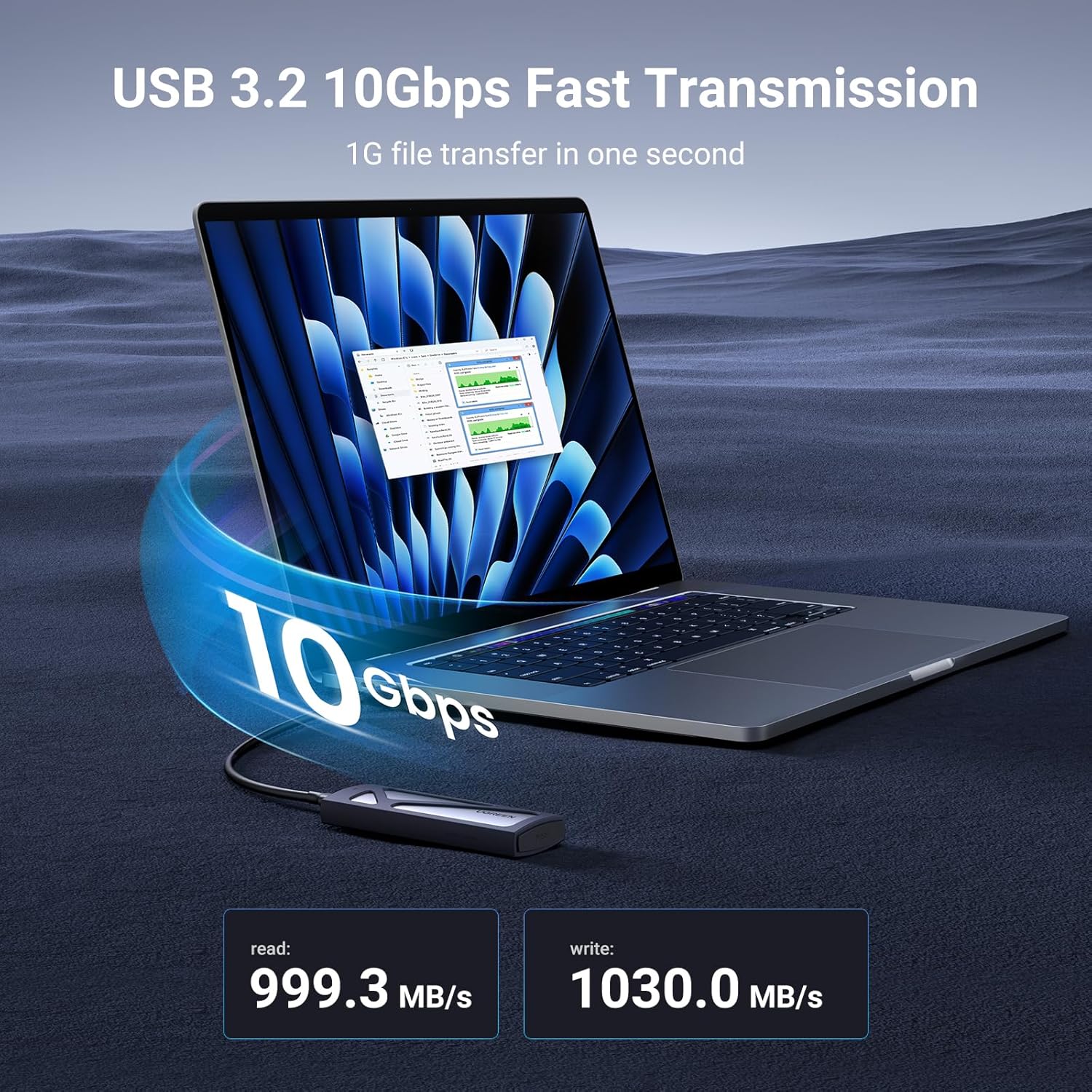

10Gbps NVMe Enclosure: With the latest USB 3.2 Gen2, this M.2 enclosure can achieve a data transfer rate of 10Gbps. Backward compatible with USB 3.1 and USB 3.0. Note: 10G speeds need to be matched with a USB C 3.2 GEN2 data cable

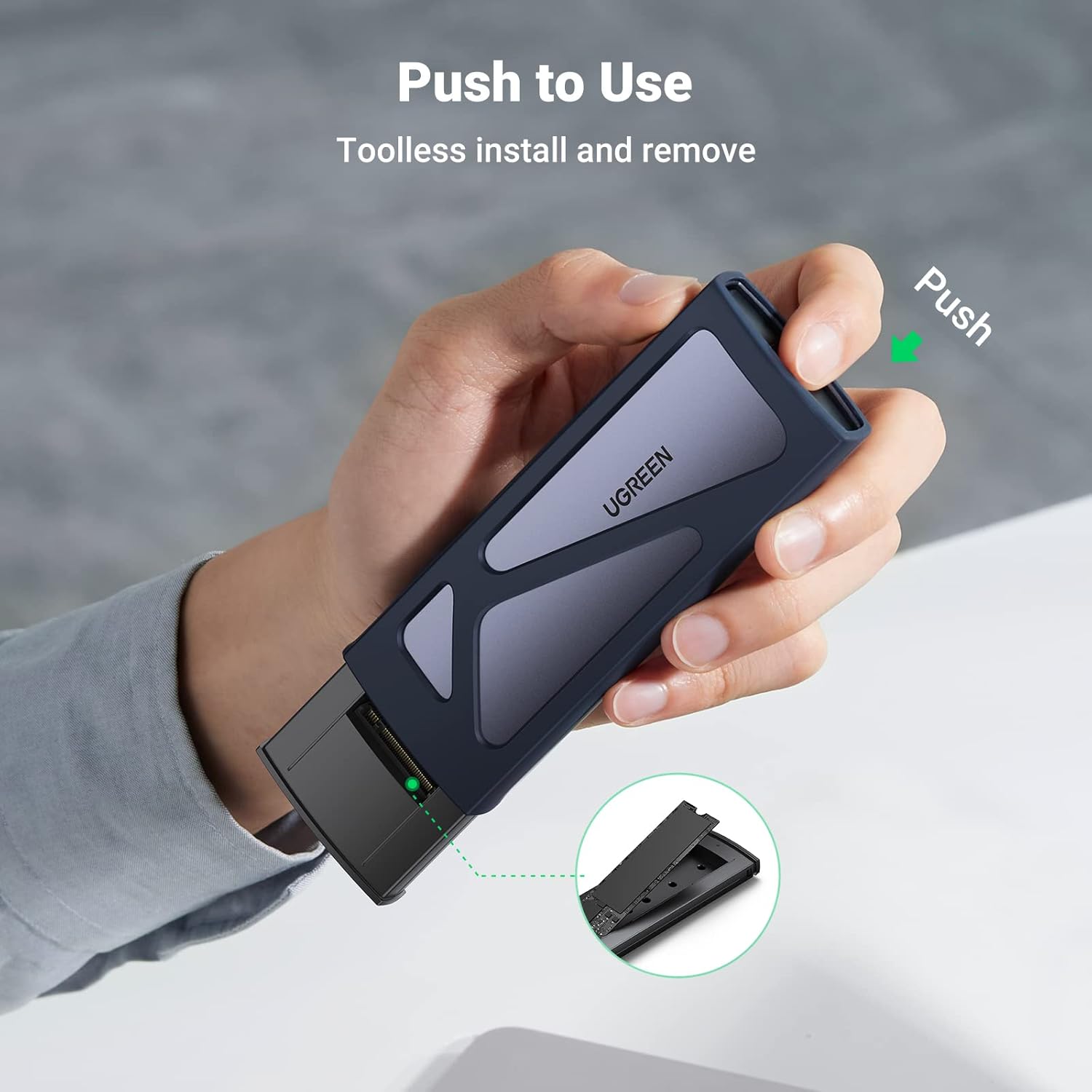

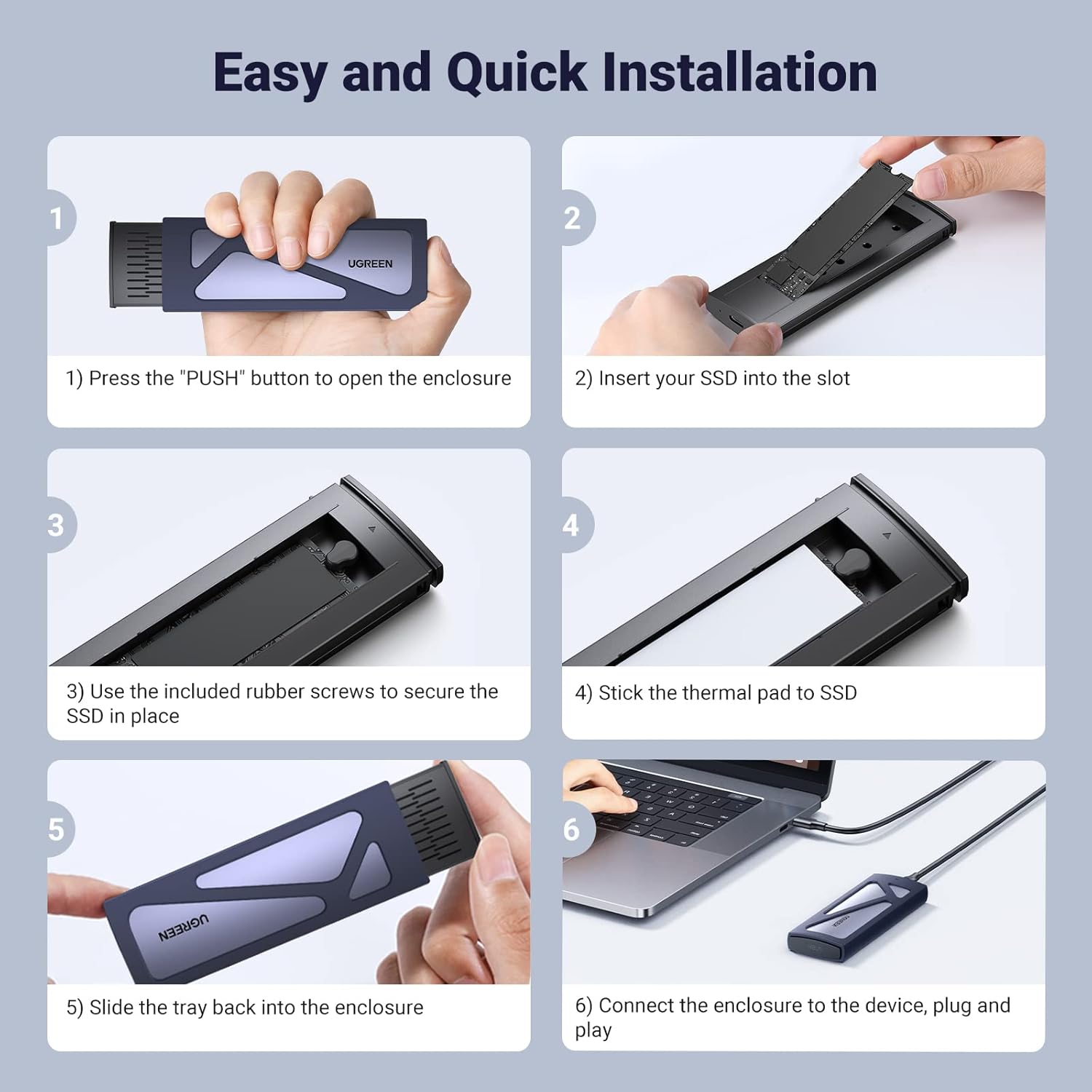

Tool-free SSD Enclosure: Tool-free NVMe SSD enclosure for quick and easy installation. Plug and play, no drivers required. The buckle design of the M.2 SSD enclosure can ensure stable and fast transfer

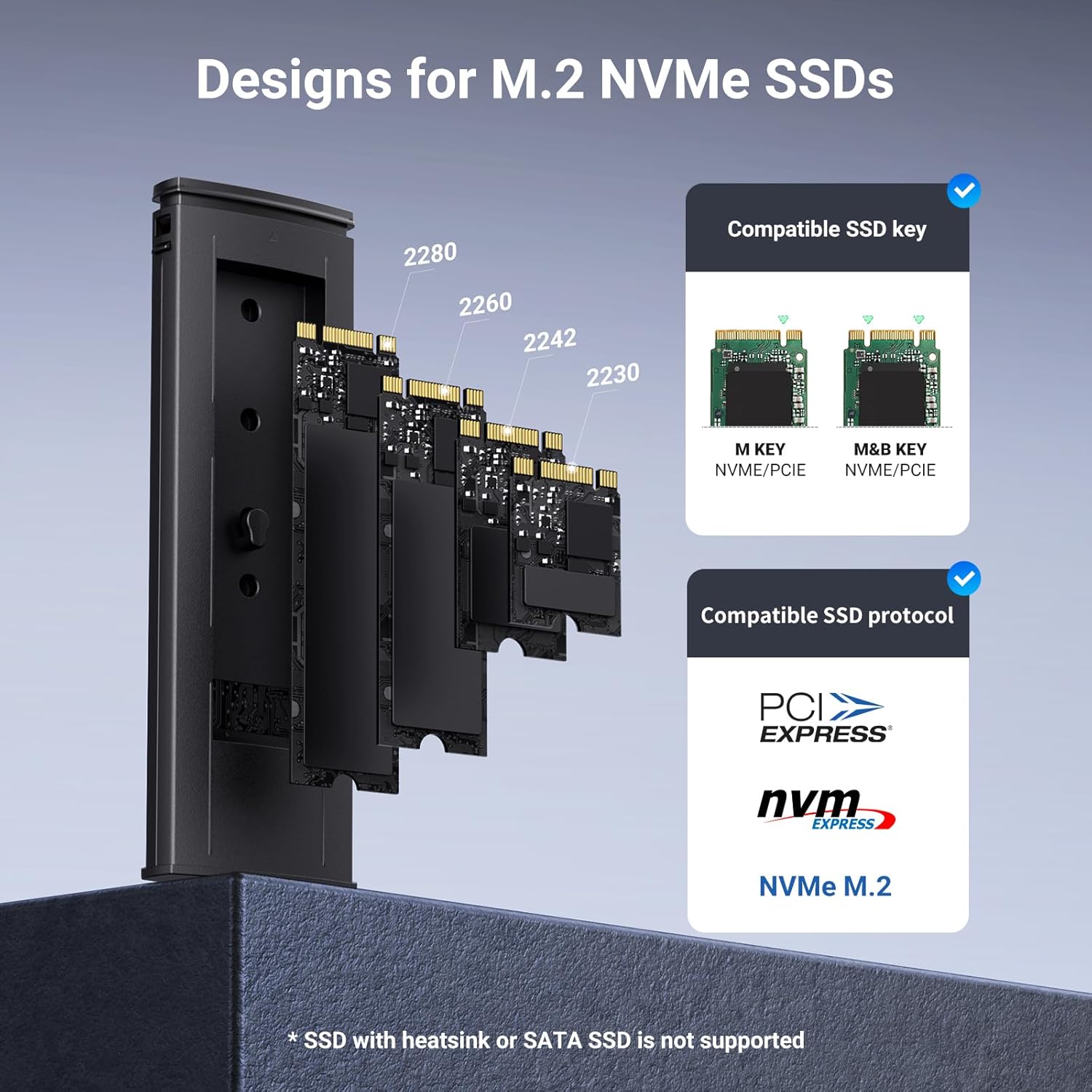

Broad Compatibility: The UGREEN M.2 NVMe SSD enclosure is specially designed to support NMVe protocol M/B&M keys and for 2230/ 2242/ 2260/2280 size SSDs up to 8TB. The M.2 NVMe enclosure is applicable for Windows, Mac OS, Linux, Android, IOS systems.(Does not support SATA NGFF SSD or mSATA SSD)
Security & Stability: USB C NVMe enclosure adopts advanced RTL9210 chip with short-circuit, over-current and multi-protection to ensure the safety of your SSD and valuable data, and supports UASP/ Trim with high transfer speed

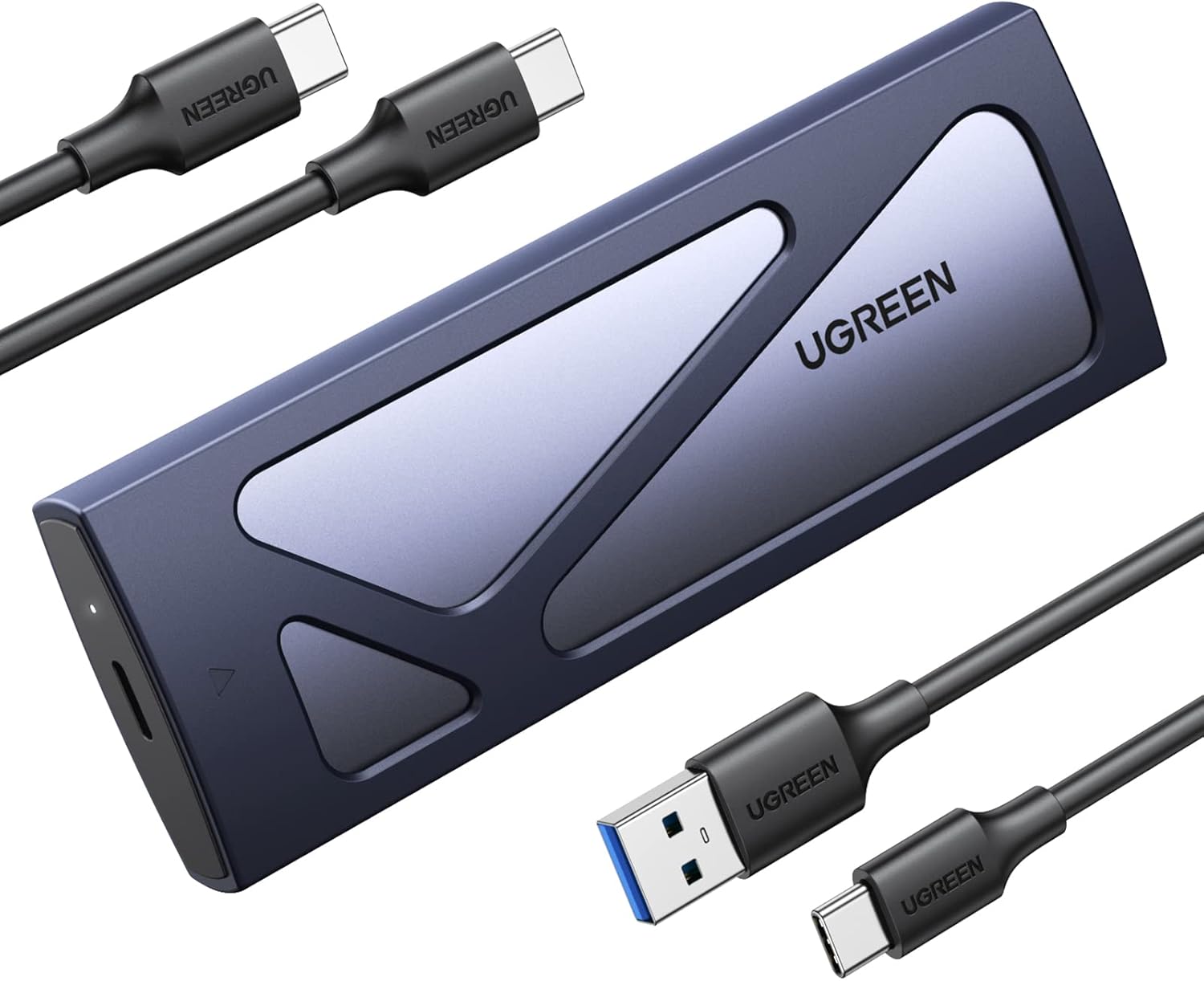

Compact & Portable: This ultra-slim aluminium external NVMe enclosure with extra silicone case is portable yet durable, and much easier to carry with this M.2 to USB adapter, making it ideal for travelling

› See more product details

Hardware Interface	USB 3.2 Gen 2
Brand	UGREEN
Color	Grey
Product Dimensions	4.92"L x 1.61"W x 0.55"H
Hardware Platform	PC
